Soundsmith

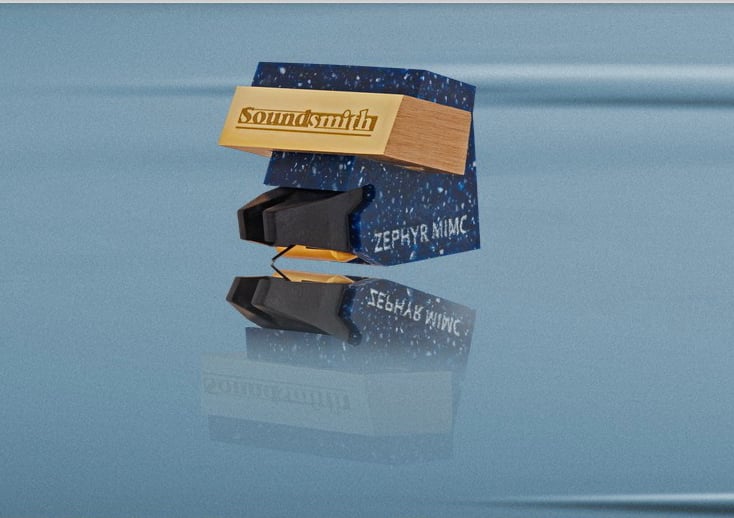

Zephyr MIMC

  • Cartridge Type: Fixed Coil
  • Stylus Type: Contact Line
  • Output: Low
  • Output Voltage: .4 mV
  • Available As Dual Coil Mono: Yes
  • Stylus: Selected Contact Line low mass Nude Stylus
  • Radius of curvature: 6 x 17 μm
  • Cantilever: Boron
  • Recommended tracking force: 1.8 to 2.2 grams
  • Effective tip mass: 0.32 mg
  • Compliance: 10 μm/mN (low compliance)
  • Frequency response: 15-45,000 Hz ± 2.0 dB
  • Channel separation (stereo only): 1000 Hz >28 dB, 50-15,000 >25 dB
  • Channel difference: <1.0 dB (Stereo), <0.5 dB (Dual Mono operation- w/optimal VTF setting)
  • Output Voltage: ≥0.4 mV
  • DC Resistance (DCR): 10-11 Ω each channel
  • Coil: 2.75 mH each channel
  • Suggested Preamp Gain: 58-64 dB
  • Soundsmith Recommends: MCP2 Variable Loading Preamp
  • Cartridge weight: 10.25 grams
  • Loading: ≥ 470 Ω
Regular price $2,599.95
- +
  • Cartridge Type: Fixed Coil
  • Stylus Type: Contact Line
  • Output: Low
  • Output Voltage: .4 mV
  • Available As Dual Coil Mono: Yes
  • Stylus: Selected Contact Line low mass Nude Stylus
  • Radius of curvature: 6 x 17 μm
  • Cantilever: Boron
  • Recommended tracking force: 1.8 to 2.2 grams
  • Effective tip mass: 0.32 mg
  • Compliance: 10 μm/mN (low compliance)
  • Frequency response: 15-45,000 Hz ± 2.0 dB
  • Channel separation (stereo only): 1000 Hz >28 dB, 50-15,000 >25 dB
  • Channel difference: <1.0 dB (Stereo), <0.5 dB (Dual Mono operation- w/optimal VTF setting)
  • Output Voltage: ≥0.4 mV
  • DC Resistance (DCR): 10-11 Ω each channel
  • Coil: 2.75 mH each channel
  • Suggested Preamp Gain: 58-64 dB
  • Soundsmith Recommends: MCP2 Variable Loading Preamp
  • Cartridge weight: 10.25 grams
  • Loading: ≥ 470 Ω
