Gold Note

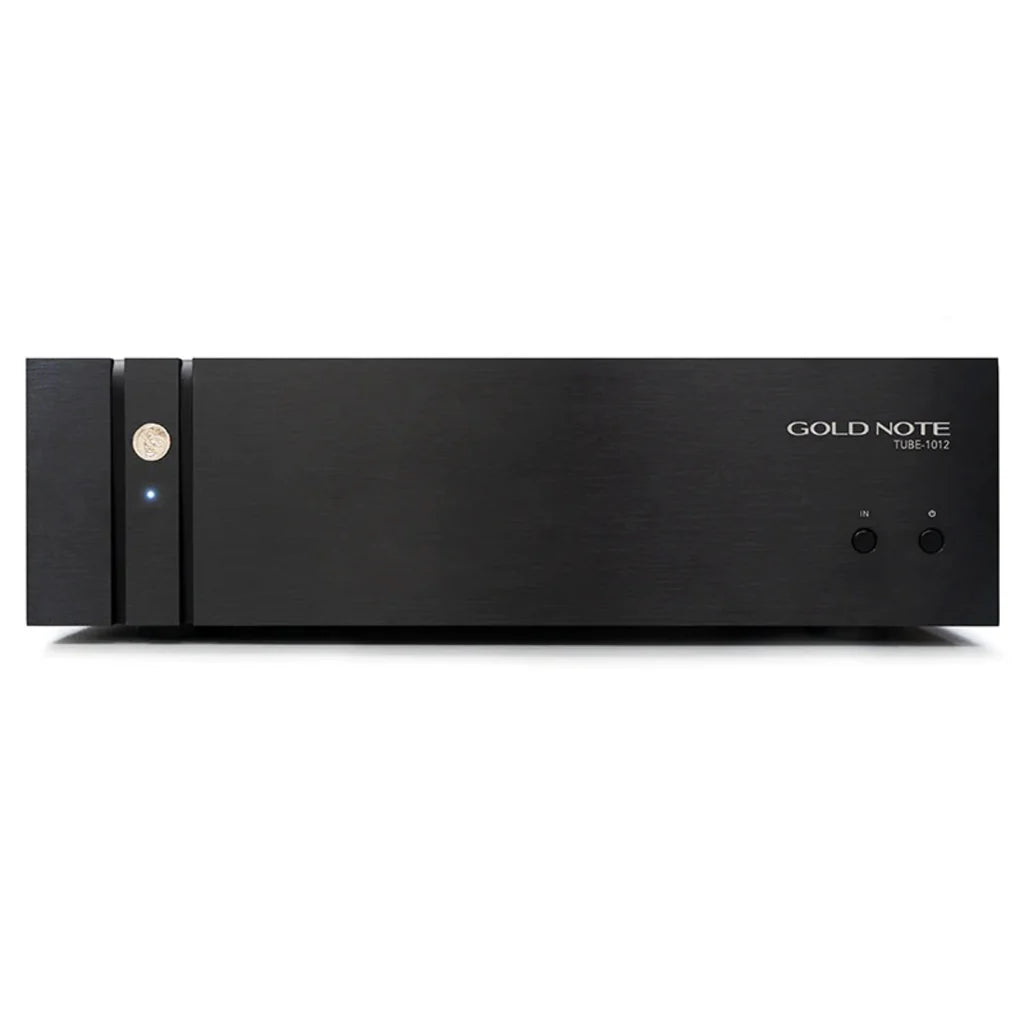

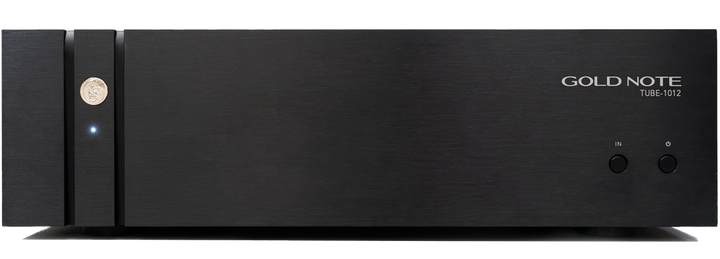

TUBE-1012

TUBE-1012 & TUBE-1006 are the best way to improve even further the Gold Note sources reaching a new level of performance through the Class A 12 or 6 tubes output stages.

Regular price $9,225.00
- +

TUBE-1012 & TUBE-1006 are the best way to improve even further the Gold Note sources reaching a new level of performance through the Class A 12 or 6 tubes output stages.

Gold Note products are all solid-state designs, capable of great quality, control and definition providing outstanding realism in recreating the musical event. The idea behind designing TUBE-1012 & TUBE-1006 was to offer the quality of the sound of the tubes to every product to achieve the best of the two technologies, Solid State and Tube in perfect synergy. Our proprietary Totem-Pole Output Stage design, with six independent stages per single tube, provides ultra-wide bandwidth response and the lowest distortion to the audio signal. TUBE-1012 & TUBE-1006 are easy to connect and control, they also feature a dedicated MUTE button for maximum convenience. TUBE-1012 is a 12 tubes unit, eight of which are dedicated to the audio signal path and for to the drivers powered inductively within the use of 6 transformers in a virtual battery design. In addition, TUBE-1012 features two extra power transformers for service stage completely outside of the audio signal path. TUBE-1006 is a 6 tubes unit, four of which are dedicated to the audio signal path and two to the drivers powered within two transformers in Dual Mono. TUBE-1006 features an extra power transformer for service stage completely outside of the audio signal path. TUBE-1012 & TUBE-1006 can match: CD1000 MKII, DS-1000 MKII, & P-1000.

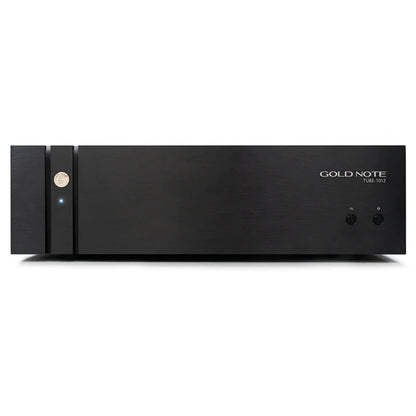

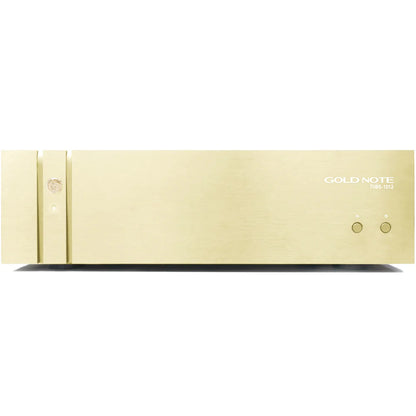

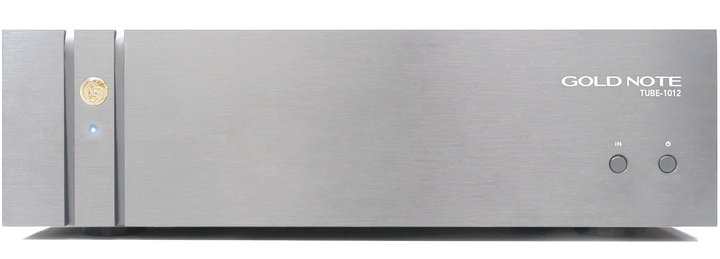

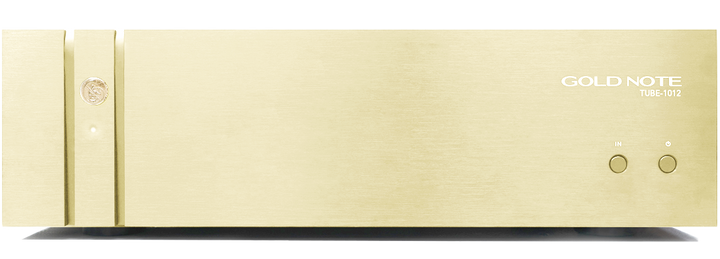

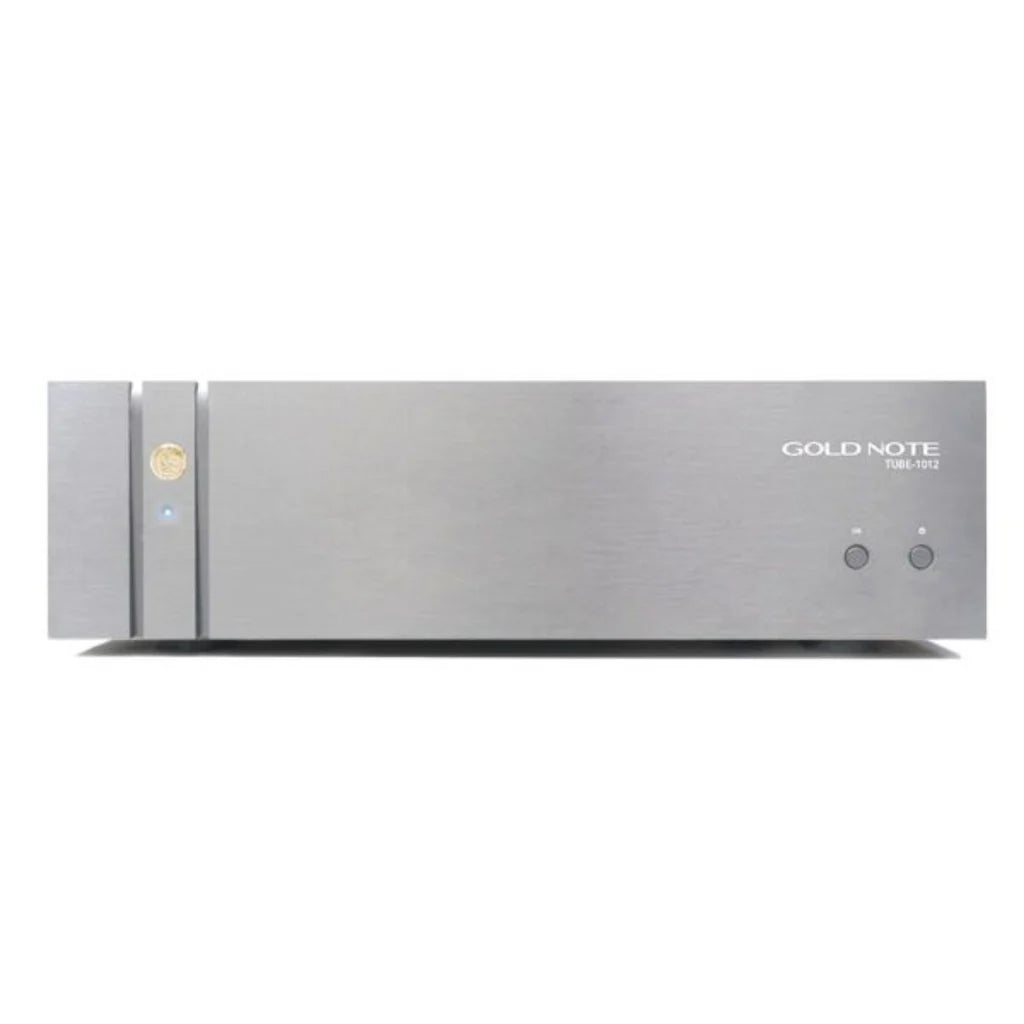

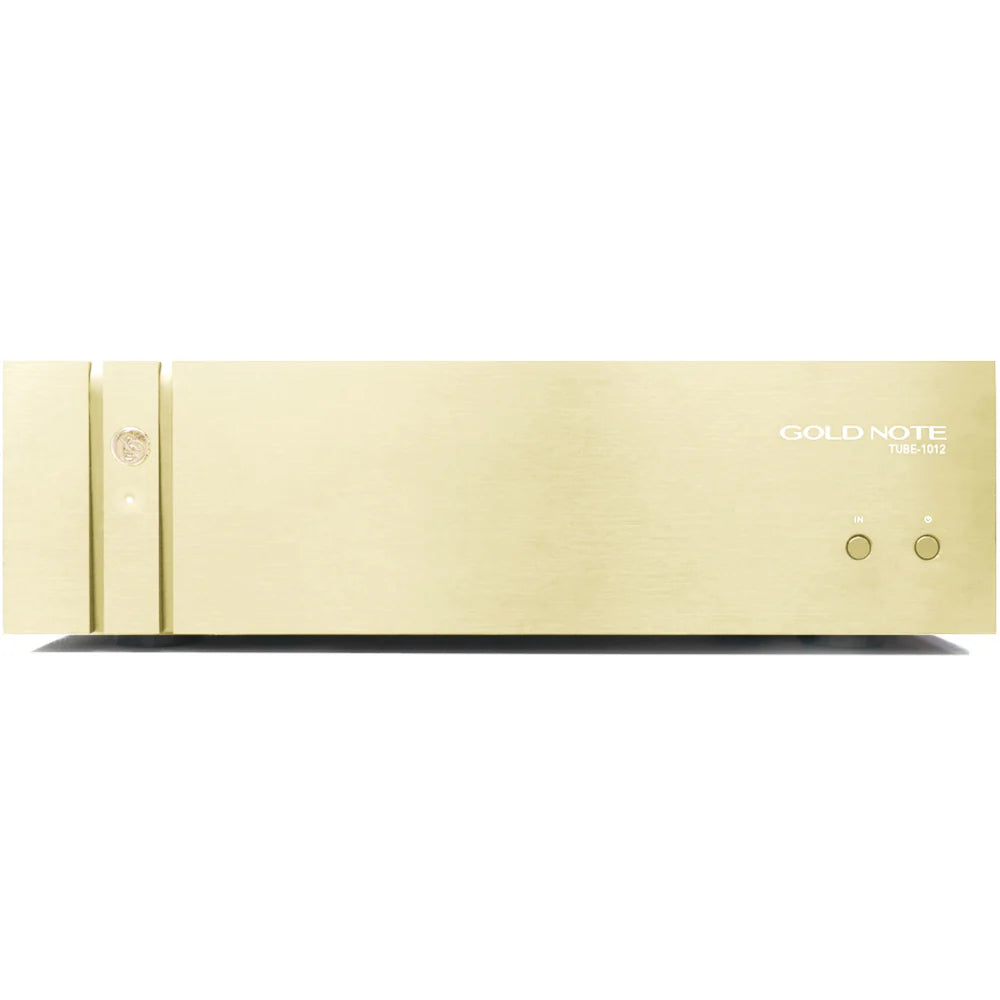

Available in three finishes and your pick of similarly finished inserts: Gold, Silver, and Black.

TUBE-1012 SPECIFICATIONS
Input Sensitivity: 4Vrms, Max Input Level: 10Vrms linear, Max Output Level @ XLR: 15Vrms, Max Output Level @ RCA: 7,5Vrms,
Output Impedance: <600 Ohm, Recommended Load: >5K Ohm, Power Absorption: 75W, Power Supply: Super Linear Vacuum Tube Regulator
with 4 Inductive Choke filters, Gain: +3,5 dB, Tubes: 6n1p x 12, No coupling transformers on the IN/OUT
