Designed to seamlessly integrate with the Tribe Series and immerse the listener in a totally realistic 3D sonic experience, the Tribe Sub In-Wall Double 8 redefines exactness, speed and musicality. For easy use under any conditions, it performs with astonishing presence, no matter the size of your space.
*INCLUDES ONE TRIBE IN-WALL DOUBLE 8 SUB MODULE & TRIBE AMPLIFIER*
Extra Double 8 module available @ $1375.00 per. Up to two modules can be powered by one Tribe Amplifier.

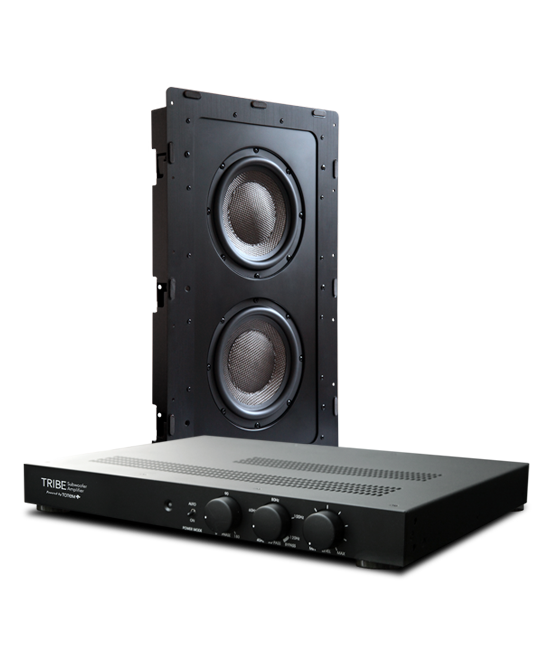

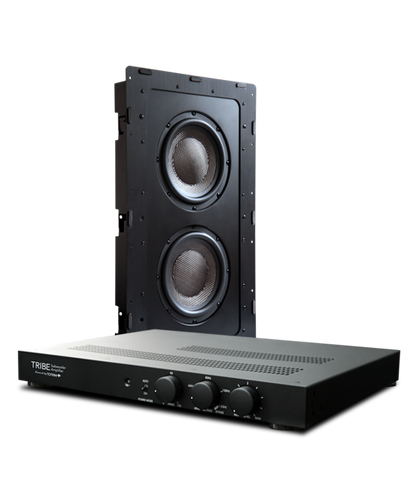

The Tribe Sub In-Wall Double 8 incorporates 2 active drivers with stiff ballistic carbon fiber cones. The double drivers have been designed to function without passive radiators permitting a much smaller footprint and grill opening.
Specifications – Tribe Sub In-Wall Double 8
| Design: |
Full back-boxed, high-performance loudspeaker. Two Double 8 subwoofers can be connected to one Tribe Amplifier if they are wired in parallel. Must be affixed to wood studs, not aluminum |
| Frequency Response: |
26 Hz – 200 Hz |
| Recommended Power: |
Supplied 500 W external Totem amplifier |
| Woofer: |
2 x 8″ / 20.32 cm ballistic carbon fiber cone |
| Dimensions (w x h x d): |
14.44″ x 23.5″ x 3.78″ / 366.7 x 596.9 x 96mm |
| Cutout: |
12.4″ x 22.4″ / 315 x 569mm |
| Grille Type: |

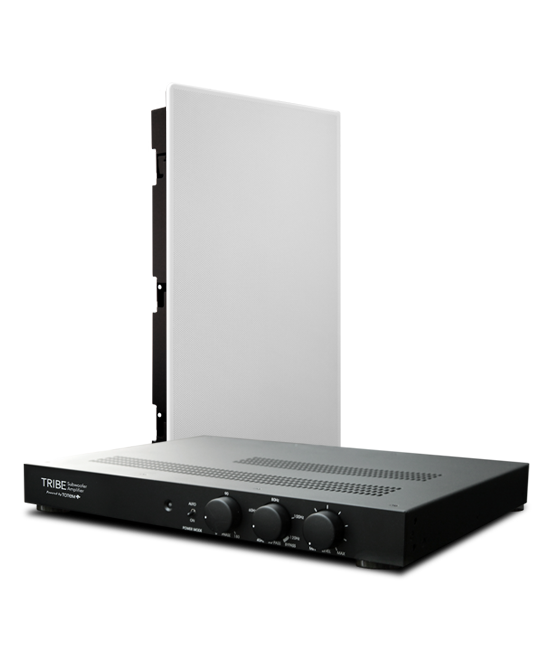

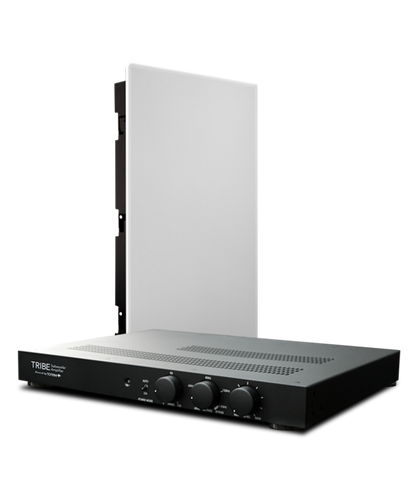

magnetic, paintable, virtually bezel-less white metal (grills may be painted to match your decor). Amplifier and rack ears included |
| Speaker Terminals: |
gold plated 5 way banana plugs |
| Weight: |
22lb / 9.98kg |
Specifications – Tribe Amplifier
AMPLIFIER SPECS
Maximum continuous power: 500 watts
Distortion: <0.1% @ Maximum Rated Output Frequency response: 20Hz – 200Hz Input Impedance: >20 kΩ
FRONT PANEL
Level Control Adjusts Input Signal Level/Volume
Low Pass Filter: variable from 40Hz – 120Hz, Bypass when turned completely to the right
Phase Control: 0° – 180° continuously variable
Power mode On/Auto Switch
Logo Power Indicator, Red in standby and Blue when active, fading after 30 seconds
REAR PANEL
Line In Connectors: 1 Pair RCA
Line Out Connectors: 1 Pair RCA
Output Connectors to Sub Module: 1 Pair Binding Posts
Mains Voltage Connector: 100-120 V / 220-230 V – Auto Sensing
Mains Voltage Fuse Holder: T5AL, 250 Volt
REAR PANEL SWITCHES
Power Switch
Model Select Switch:
Tribe In-wall Sub 8 – select SUB8
Tribe In-wall Sub 12 – select SUB12
DIMENSIONS
Overall Dimensions incl. Feet (w x h x d): 17” x 2.25” x 14” / 43.18 x 5.715 x 35.56 cm
Width with Rack Ears : 19” / 48.26 cm
WEIGHT
Net weight: 6.8 kg (15 lbs.)
