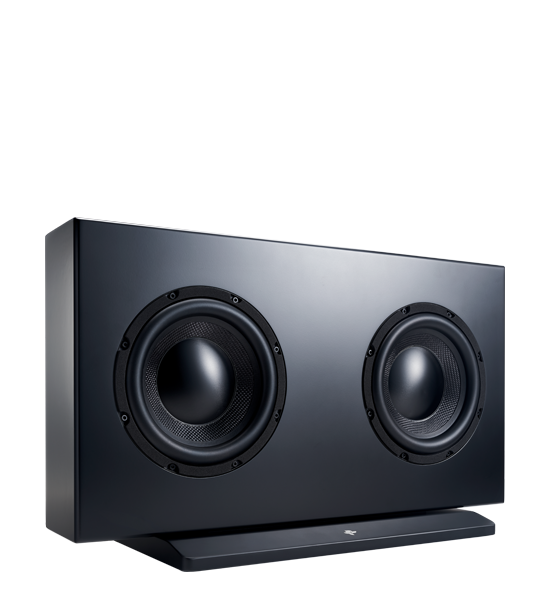

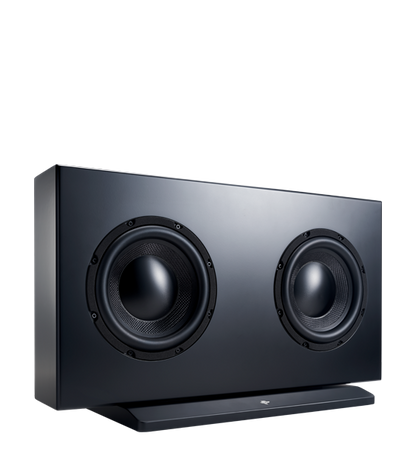

The spectacular form of the Tribe Solution Sub dramatically separates it from the utilitarian mediocrity of conventional subwoofer design. Astonishing output and frequency depth that contradicts its appearance further distances itself from the pack. It is simultaneously both a beauty and a beast. And pure Totem Tribe.
Bass excitement is delivered by the furious force of dual 8” woofers powered by a 500 watt integrated amplifier. Reinforced Fiberglass woofer cones perfectly balance strength and lightness for bass that is equally powerful and musical. The anodized aluminum dust cap dissipates heat so the entire motor structure runs cool and with bulletproof reliability.
The custom designed amplifier drives the woofers with a controlled ferocity. The compact digital design runs cooler and more efficiently than conventional amps, permitting the slim proportions and sealed enclosure.
The versatile Tribe Solution Sub can be positioned horizontally, vertically, or even on its back to hide under furniture. Output is prodigious in any orientation. The optional LINK wireless transmitter provides even greater placement flexibility. Whatever the application, this is the solution.
Add the LINK for a wireless connection between your amplifier or powered speaker and Tribe Solution Sub.
Design Highlights
- Multiple orientation options
- Sealed enclosure for consistent performance regardless of placement
- Slim, attractive, unobtrusive
- Wireless connectivity option

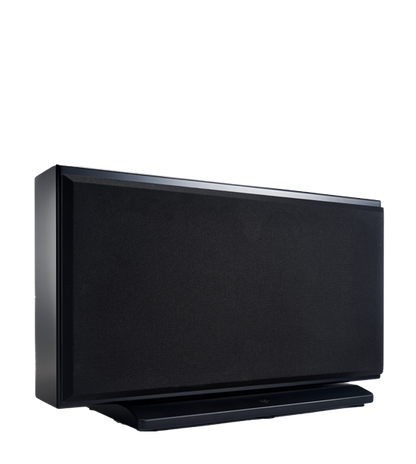

- Available in Black and White Satin with matching Magnetic grill
Technical Features
- 500 watt Class D high efficiency amplifier
- Dual 8” Reinforced Fiberglass woofers with anodized aluminum dust cap
- High Impact and Natural BASS EQ settings

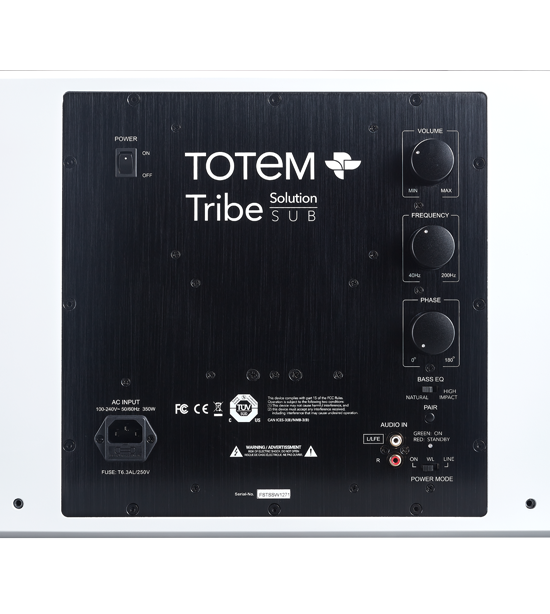

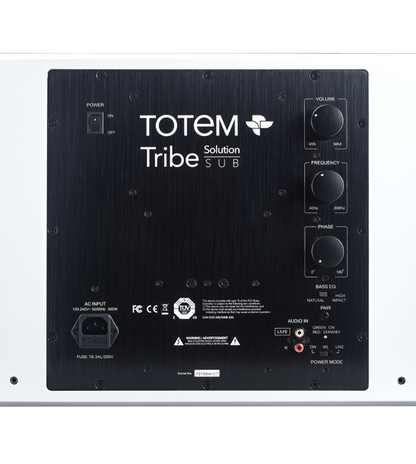

- Variable volume / phase / frequency adjustments for pinpoint accuracy
- Sealed enclosure for consistent performance regardless of placement
Specifications
| Design: |
Powered Subwoofer |
| Enclosure: |
Sealed |
| Amplifier: |
Class D 500 watts |
| Woofer: |
Dual 8” cones made of high tensile spun fibreglass strands top coated and bonded to a cellulose core. Driven by vented magnetics utilizing an oversized ferrite magnet assembly. Butyl rubber surround. |
| Voice Coil: |
High temperature enamel resin coated copper wire wound on a vented BASV black aluminum former |
| Frequency response: |
26 Hz – 200 Hz |
| Crossover: |
Variable from 40Hz to 120Hz, 24dB/Octave |
| Phase: |
Variable from 0 to 180 degrees |
| Volume: |
Variable |
| Inputs: |
Stereo RCA/LFE/Wireless |
| Power modes: |
Auto/On |
| Dimensions (WxHxD) : |
24.01″ x 13.07″ x 4.52″ / 610 x 332 x 115mm (cabinet only) |
| Dims with feet: |
24.01″ x 13.22″ x 4.52″ / 610 x 336 x 115mm |
| Weight: |
38.35lb / 17.38kg |
| Finishes: |
Black and white satin |
