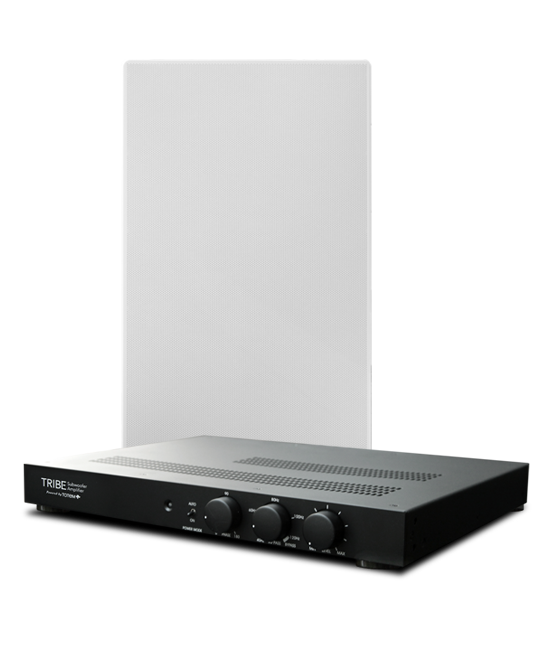

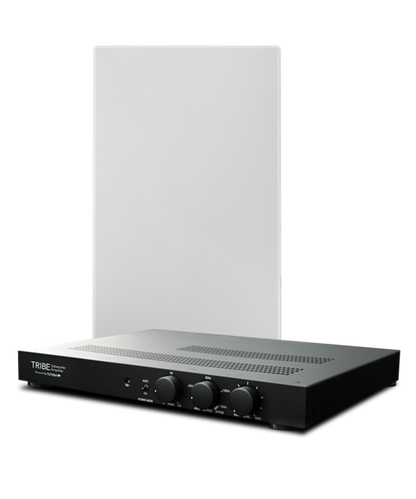

*INCLUDES TRIBE IN-WALL SUB 12 & TRIBE AMPLIFIER*
Designed to seamlessly integrate with the Tribe Series and immerse the listener in a totally realistic 3D sonic experience, the Tribe Sub In-Wall Sub 12 redefines exactness, speed and musicality. For easy use under any conditions, it performs with astonishing presence, no matter the size of your space.

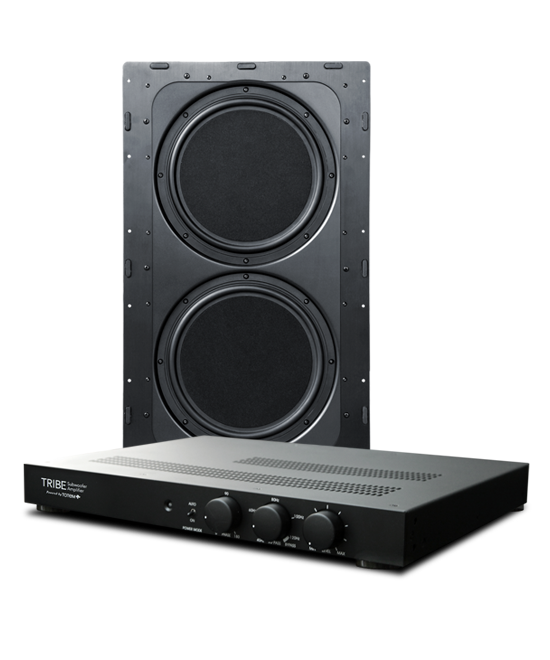

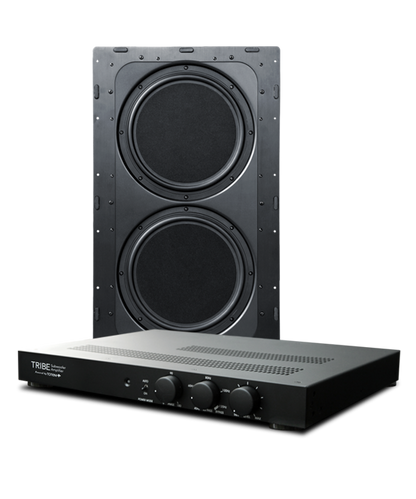

The Tribe In-Wall Sub 12 incorporates a high power 12 inch driver, featuring a flat sandwich cone design and a 5.25 inch voice coil, and matching 12” Passive. Quick, smooth and articulate, the 12 inch active driver has been specially designed to function in tandem with the passive radiator, permitting quickness, incredible energy flow and unparalleled in-wall musicality.
Specifications – Tribe In-Wall Sub 12
Design: |
Full back-boxed, high-performance loudspeaker. Only 1 Double 12 subwoofer can be connected to a Tribe Amplifier. Must be affixed to wood studs, not aluminum. |
Frequency Response: |
22 Hz – 200 Hz |
Recommended Power: |
Supplied 500 W external Totem amplifier |
Woofer: |
1 active and 1 passive 12″/ 30.48 cm multi-layer Kevlar honeycomb |
Dimensions (w x h x d): |
16.85″ x 28.27″ x 3.78″ / 428 x 718 x 96mm |
Cutout: |
14.57″ x 27.16″ / 370 x 690mm |
Grille Type: |
magnetic, paintable, virtually bezel-less white metal (grills may be painted to match your decor) Amplifier and rack ears included |
Speaker Terminals: |
gold plated 5 way banana plugs |
Weight: |
22lb / 9.98kg |
Specifications – Tribe Amplifier
AMPLIFIER SPECS
Maximum continuous power: 500 watts
Distortion: <0.1% @ Maximum Rated Output Frequency response: 20Hz – 200Hz Input Impedance: >20 kΩ
FRONT PANEL
Level Control Adjusts Input Signal Level/Volume
Low Pass Filter: variable from 40Hz – 120Hz, Bypass when turned completely to the right
Phase Control: 0° – 180° continuously variable
Power mode On/Auto Switch
Logo Power Indicator, Red in standby and Blue when active, fading after 30 seconds
REAR PANEL
Line In Connectors: 1 Pair RCA
Line Out Connectors: 1 Pair RCA
Output Connectors to Sub Module: 1 Pair Binding Posts
Mains Voltage Connector: 100-120 V / 220-230 V – Auto Sensing
Mains Voltage Fuse Holder: T5AL, 250 Volt
REAR PANEL SWITCHES
Power Switch
Model Select Switch:
Tribe In-wall Sub 8 – select SUB8
Tribe In-wall Sub 12 – select SUB12
DIMENSIONS
Overall Dimensions incl. Feet (w x h x d): 17” x 2.25” x 14” / 43.18 x 5.715 x 35.56 cm
Width with Rack Ears : 19” / 48.26 cm
WEIGHT
Net weight: 6.8 kg (15 lbs.)
