Based on Rogue's award winning Stereo 100 amplifier, the new Dark version features power supply modifications, upgraded coupling capacitors, PRP and "Nude" vishay resistors (in critical spots) along with upgraded Cardas binding posts and RCA jacks. Also included are premium small signal tubes to bump the performance up to an even higher level. Now you can finally have the DNA of Rogue's flagship Apollo Dark monoblocks in a simpler stereo package.
Whether your tastes run to the delicate strains of the violin or the wail of the electric guitar, the Rogue Stereo 100 power amplifier will thrill you with its precision, musicality, and impact. And with 100 watts of pure tube power, you can be sure that your amplifier won’t run out of steam before the musicians do. The heart of the Stereo 100 consists of four matched KT120 output tubes operating in push-pull configuration. A massive fully regulated power supply ensures that low frequency information will not go unheard, and that the power and attack of transient musical passages will be recreated in full. And with a simple flip of a switch, audiophiles can choose between "pure triode" and "ultra-linear" operation to suit their tastes and power requirements. The transparency and power of the Stereo 100 is testimony to a design that truly transcends that of the competition.
While the build quality is readily evidenced in the exquisitely sculpted appearance of the Stereo 100, the beauty of this amplifier is more than just skin deep. From the Mundorf EVO Oil coupling capacitors to the custom wound output transformers, the audio signal travels through only the finest components available. With this winning combination of leading edge circuit topology, great components, and a stunning appearance, you can be certain that you are investing in an amplifier design that only Rogue Audio can deliver.
Features:
- Ultra-wide bandwidth output transformers
- Massive fully regulated high voltage supply
- Matched quad output tubes

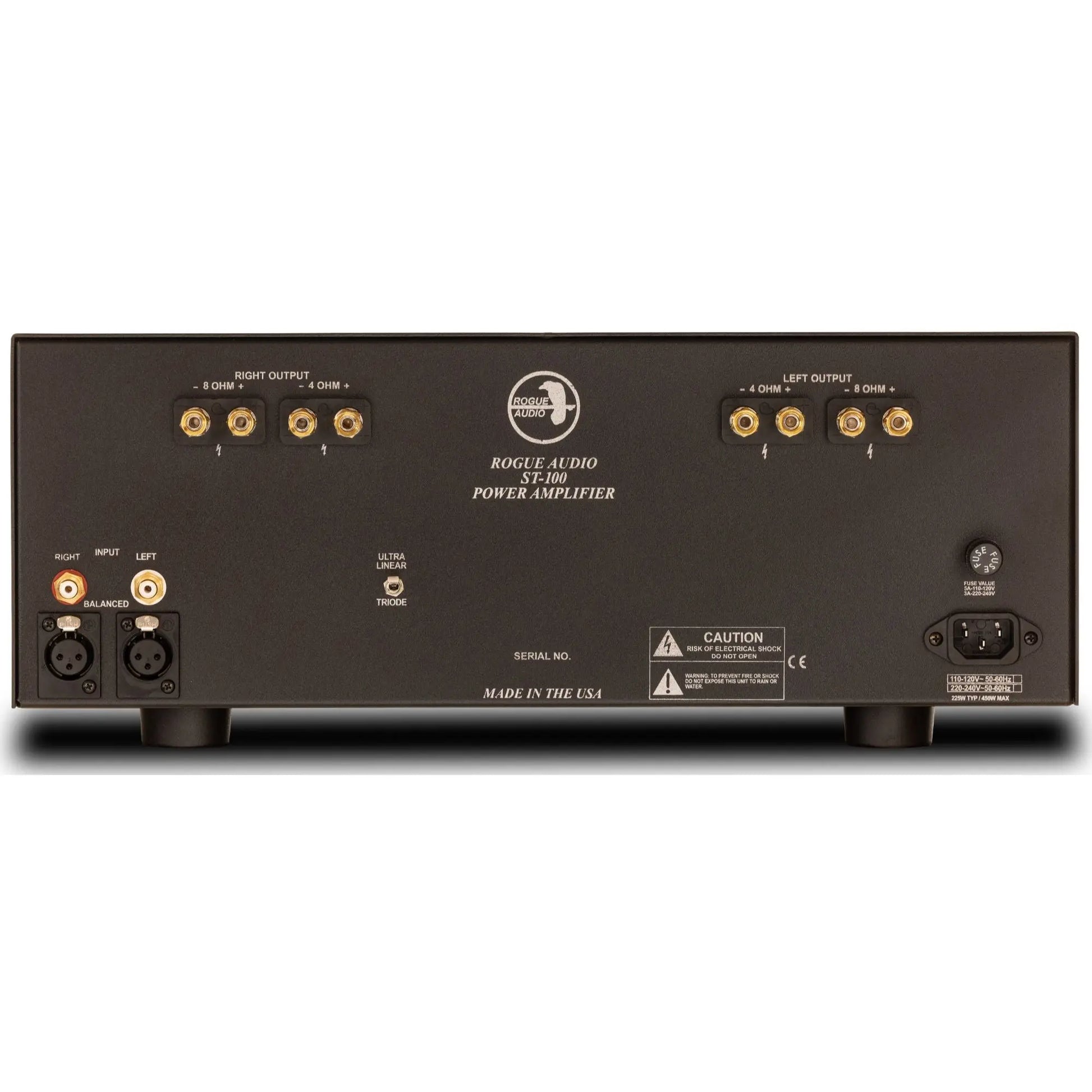

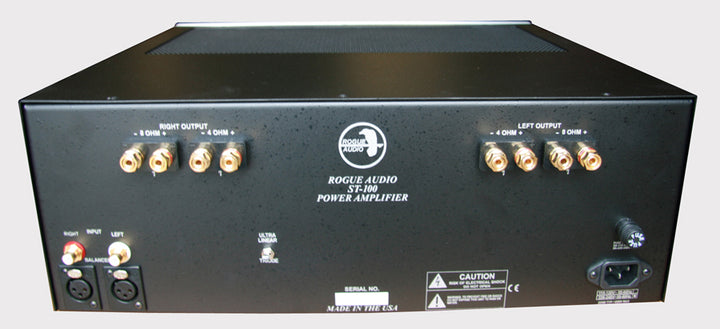

- User selectable 4 and 8 ohm output taps
- User selectable triode or ultralinear output

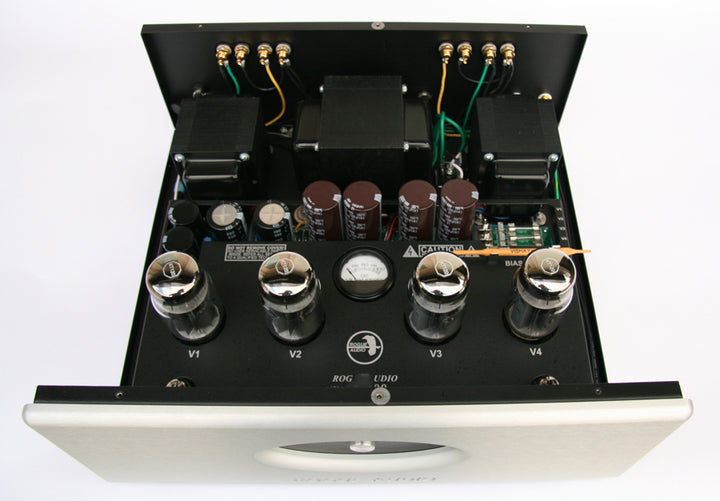

- (4) KT120, (2) 12AU7, (2) 12AX7 tube complement
- Built in bias meter
- Integral tube cage

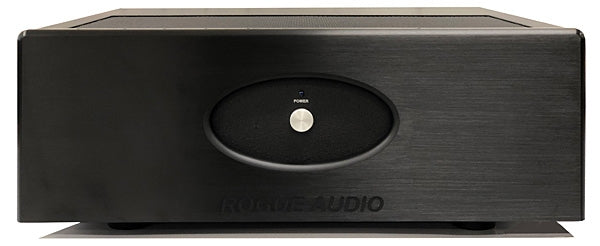

- Machined aluminum faceplate
- Mechanically isolated transformers
- Heavy (2 ounce) copper circuit board
- All precision components
- 3 year limited warranty (6 months on tubes)
Dark Edition Features:
- - Ultra Premium coupling capacitors
- - Increased power supply storage
- - Hex Fred high speed diodes in power supply
- - Polypropylene bypass capacitors in power supply
- - Nude Vishay resistors in critical locations
- - Rhodium binding posts (Cardas)
- - Rhodium RCA jacks (Cardas)
- - Upgraded signal wiring (Cardas)
- - Telefunken and RCA small signal tubes
Specifications:
- output power: 100 WPC minimum
- input impedance: 200K Ohms
- frequency response: 5Hz - 50KHz ± 1dB
- THD: <0.1% typ., <1.0% at rated power
- input sensitivity: 1.0V RMS
- dimensions: 18"W x 17"D x 7"H
- weight: 60 lbs.
- power requirements: 115/60Hz or 230V/50Hz
