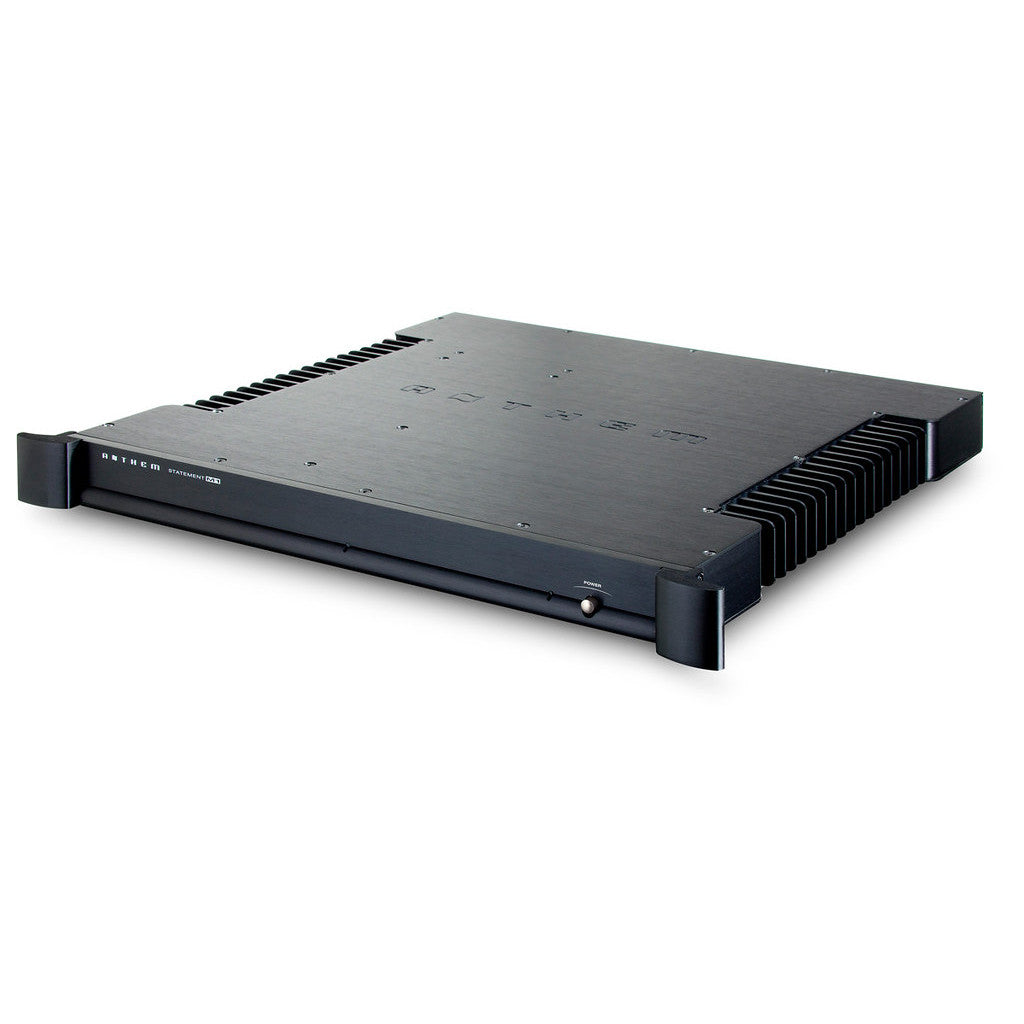

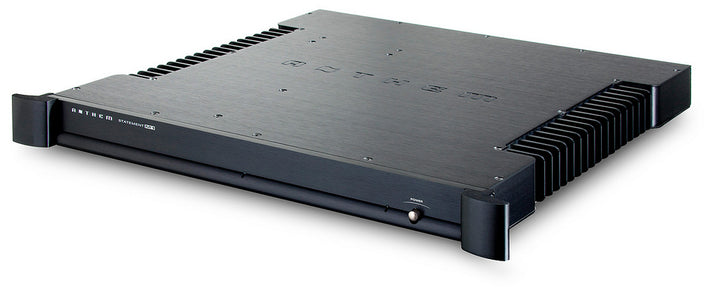

The Statement M1 is a state-of-the-art monaural amplifier
The highest sound quality at all volume levels, flat frequency response into any load, and stable into the most difficult loads. The Statement M1 is a state-of-the-art monaural amplifier delivering 1,000 watts into 8 ohms and 2,000 watts into 4 ohms or less with THD remaining under 0.1% from 20 Hz to 20 kHz. Designed and engineered in our advanced research center in Ottawa, Canada, the M1 is manufactured in our Toronto facility.
More than just a slim, technologically advanced monaural design, the M1 demonstrates that Class D architecture isn't fundamentally flawed, it simply hasn't been implemented well in the past, mainly because it required such a heavy commitment to R&D. We’re fortunate to have the in-house resources to create such a groundbreaking product and one listen will reveal the truly extraordinary nature of this amplifier.
Delivering 1,000 watts into 8 ohms and 2,000 watts into 4 ohms or less with THD remaining under 0.1
SPECIFICATIONS
-
Channels: 1
-
Power Output RMS (Per Channel) 8Ω: 1,000 W
-
Power Output RMS (Per Channel) 4Ω: 2,000 W
-
Power Output RMS (Per Channel) 2Ω: 2,400 W
-
Power Bandwidth: 5 Hz to 45 kHz (-3 dB at 1,000 W into 8 ohms)
-
Input Sensitivity: 100 mV (1 W output 8 Ω); 3.2 Vrms (1,000 W output 8 Ω)
-
Input Impedance: 10kΩ (RCA), 20kΩ (XLR)
-
Voltage Gain: 29 dB
-
Slew Rate: —
-
Frequency Response: 8Ω = 20 Hz - 20 kHz ±0.1 dB; 4Ω = 20 Hz - 20 kHz ±0.1 dB; 2Ω = 20 Hz - 20 kHz ±0.2 dB
-
Channel Separation: —
-
Crosstalk: —
-
Signal-to-Noise Ratio: 113 dB (IEC-A, ref. 1,000 W)
-
Total Harmonic Distortion + Noise: <0.06% (1 kHz) @ 1,000 W
-
Intermodulation Distortion: CCIF (19 kHz + 20 kHz) 0.003% @ 1,000 W
-
Damping Factor: >1400 at 20 Hz; 800 at 1 kHz
-
Inputs: Single-Ended, Balanced, Relay Trigger (3.5-mm Mono Jack)
-

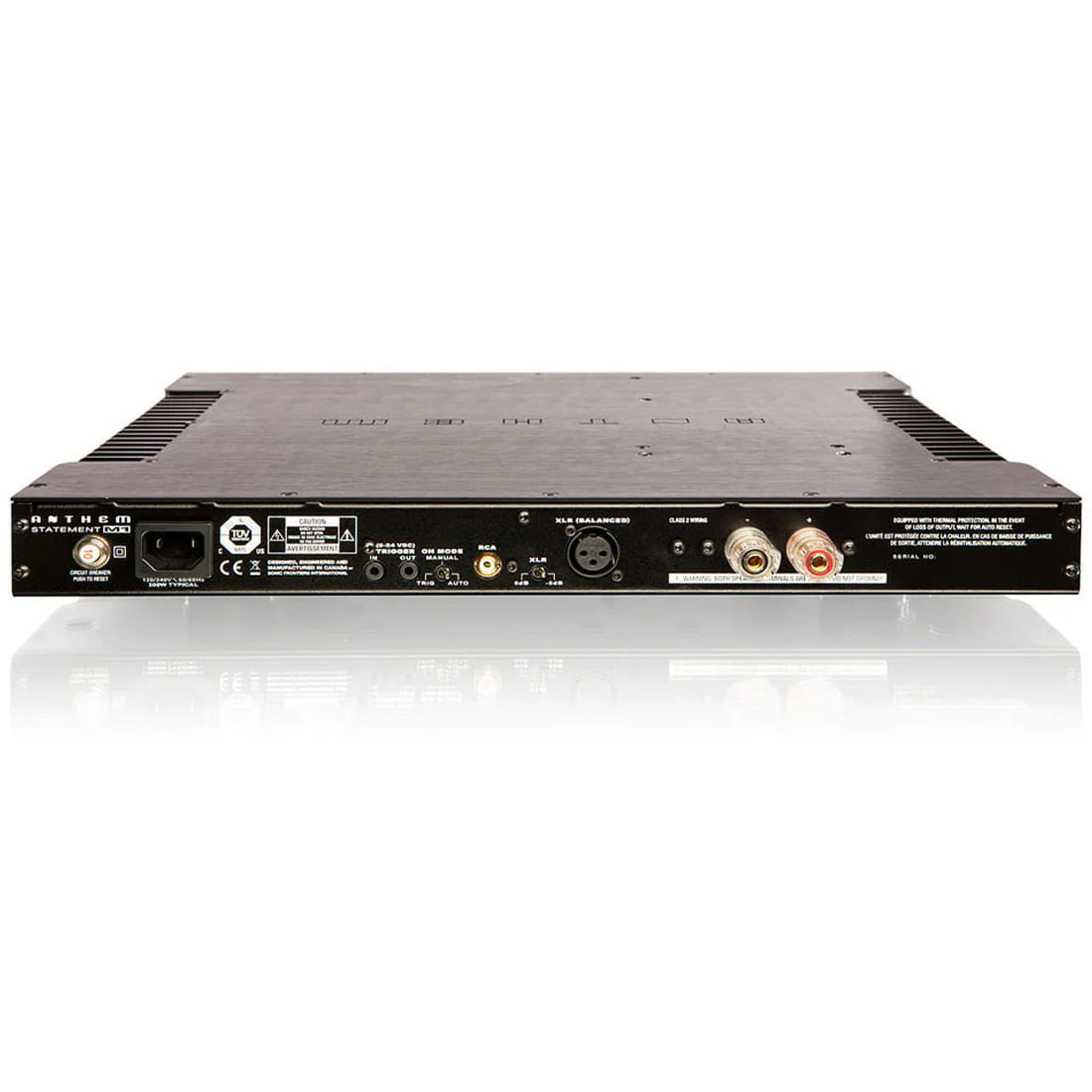

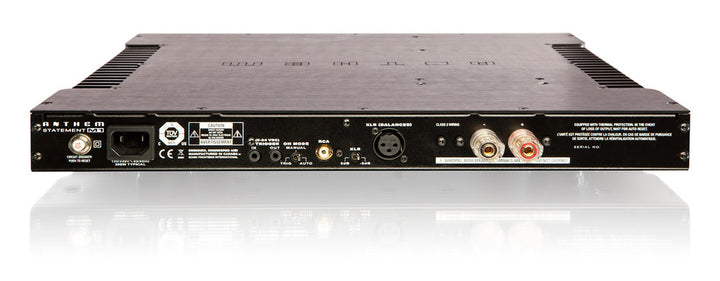

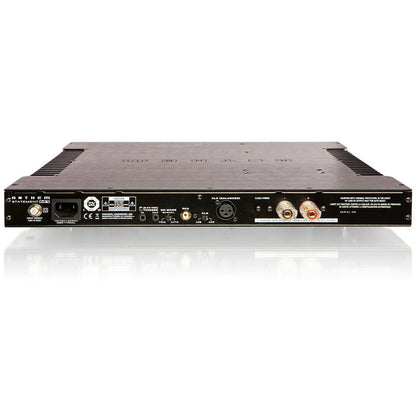

Outputs: Speaker Binding Posts, Relay Trigger (3.5-mm Mono Jack)
-
Front Display: LED Status Indicator
-
Construction: Anodized Aluminum Faceplate with Aluminum Chassis
-
Switches: Front Panel: Power (On/Off); Rear Panel: 2 On/Off Modes (XLR, RCA), 3 On/Off Modes (Trigger, Manual, Auto)
-
Weight: 20 lb (9 kg)
-
Dimensions (D, excluding Power Cord): 18-3/4" (47.6 cm)
-
Dimensions (W): 19-1/4" (49 cm)
-
Dimensions (H, with feet): 2-1/4" (5.7 cm)
-
Height with Rackmount Kit: 1U
