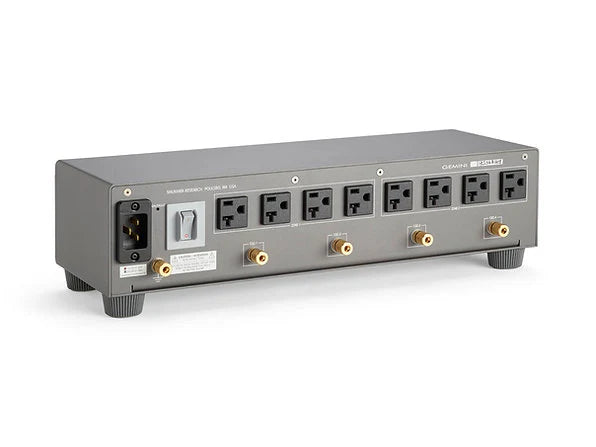

The GEMINI Model-8* delivers unprecedented performance and value by acting as both a high-current power distributor and an advanced ground noise reduction hub (featuring technology derived from our TAS Product of the Year award-winning Altaira grounding hub). Similar to the four outlet Gemini Model-4, Gemini Model-8 features patented NIC™ noise isolation chamber technology that provides a common grounding point for the system, extending noise reduction to all system components. This dual-plane approach to noise reduction addresses both AC noise and minimizes voltage differences between component chassis, helping to eliminate potential ground loops. As a high-current capable power distributor the Gemini Model 8 delivers the maximum carrying capacity of the mains circuit.
The GEMINI Model-8’s rugged construction, dual-zone CCI filtering capability make it the ideal solution for powering entire high performance audio or video systems. The affordable price and high-current capacity of the Gemini Model-8 offers endless flexibility for applications in high performance music systems, home theater or pro-recording. Its dual forms of noise reduction insure maximum resolution and fidelity for sources, while the Gemini Model-8 is also an ideal power distributor for amplifiers, sub-woofers, recording consoles or any electronics that require maximum current draw. Taking its affordable price into account, the Gemini Model-8 may be Shunyata Research’s finest creation yet!
SPECIFICATIONS
Maximum Voltage:
- 90-125 VAC r.m.s. unregulated (US)
- 220-240 VAC r.m.s. unregulated (EU, AS)
Current Ratings:
- Input current maximum: 20A (US)
- Input current maximum: 16A (EU)
- Peak instantaneous current @ 10ms: >1000A
- Output current max: 20A (US)
- Output current max: 16A (EU)
Transient Suppression:
- Maximum transient pulse: 40,000A @ 8/50 μs
Over-Current Protection:
- Hydraulic Electromagnetic Breaker
Wiring System:
- 12-gauge ArNi® conductors
- OFE C10100 copper
- Ratings: 600 V 105° C
Noise Suppression:
- Input to Output (100 kHz – 30 MHz): > 40 dB reduction
- Zone to Zone (100 kHz – 30 MHz): > 30dB reduction
Isolation Zones: 2 individual zones
Noise Reduction Technology:
- NIC™ Noise Isolation Chambers (patented)
- Trident Transient Protection Module
- CCI™ v4 Noise Filters (3)
- KPIP™ Process
KPIP v2 Processing: 4-days
Connectors & Outlets:
- Inlet: IEC C19R
- US Outlets: 8 NEMA5-15P
- EU Outlets: 7 CEE 7/3
Vibration Control:
- Vibration-damping panels (internal)
- Shunyata Isolation Footer
Construction:
- Powder coated steel chassis – 16 gauge
- Anodized aluminum faceplate
Dimensions:
- Width (US/AS): 17 inches (43.18 cm)
- Width (EU): 18.5 inches (46.99 cm)
- Depth: 6.13 inches (15.57 cm)
- Height: 4.58 inches (11.63 cm)
- Weight: 9.8 lbs (4.45 kg)
