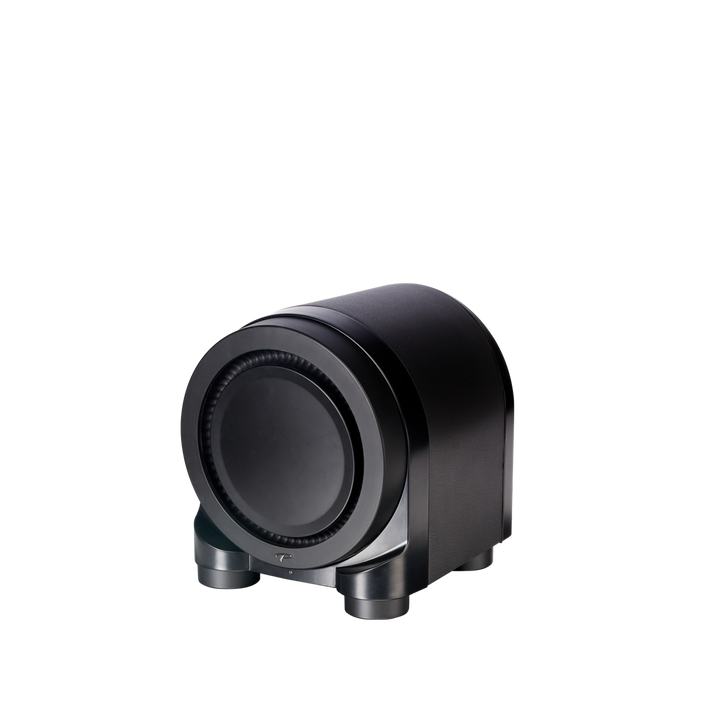

Seismic™ 110:
"Admit it: The first thing that went through your head when you saw this diminutive little powerhouse was, ‘Ahwww, how cute.’ Right? With its sleek, curvilinear diecast monocoque exterior and its oversized paws tucked neatly underneath, one can’t help but look at this little fellow and wish it had a chin to scratch.
But, as my dad is fond of saying, ‘Frisk this puppy at the wrong time and you’re liable to draw back a nub.’ Despite its adorable looks, the Seismic 110 boasts one bodacious bark—and just as big a bite. In addition to its ultra-low-distortion split-coil driver design, the subwoofer also features an 850-watt RMS Ultra-Class-D amplifier, and the 10-inch woofer cone is capable of two full inches of travel, giving it an unbelievably deep voice for such a petite little frame.
Price: affordable. (Newspapers and chew toys not included.)"
– Dennis Burger, Home Entertainment
SPECIFICATIONS
| DESIGN |
Single high-excursion driver, sealed enclosure, patented built-in Ultra-Class-D™ power amplifier, USB port |
| AMPLIFIER |
1,700 watts Dynamic Peak / 850 watts RMS |
| AMPLIFIER FEATURES |
Auto-On / Off, Trigger On / Off, soft clipping, electrical shorting protection, thermal protection |
| FREQUENCY RESPONSE ON-AXIS
|
±3 dB 17Hz – 250Hz |
| ROOM CORRECTION |
Anthem Room Correction (ARC®) (sold separately) |
| LOW FREQUENCY EXTENSION |
18 Hz (DIN) |
| LOW FREQUENCY DRIVER |

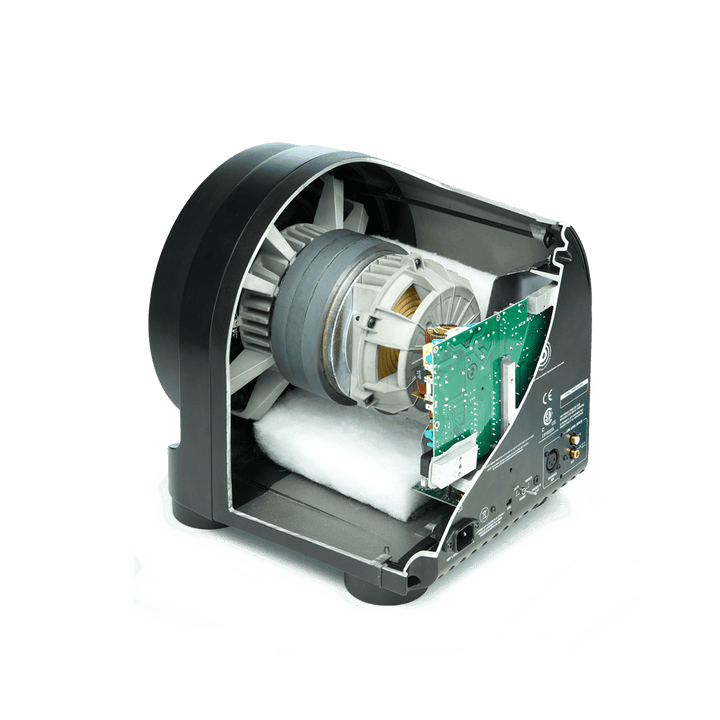

254-mm (10 in) high-excursion mineral-filled co-polymer polypropylene cone with RCR™ resonance-control ribbing on underside, FEA-optimized overmolded, inverted Santoprene® surround, 38-mm (1-1/2 in) diameter split voice-coil construction (60-mm coil lengths), dual Nomex® spiders, high-temperature Apical™ formers, dual 12-mm-thick top plates, 10-lb (4.5 kg) triple ceramic (hard ferrite) magnet structure, AVS™ die-cast heatsink chassis |
| SENSITIVITY ROOM / ANECHOIC |
100 mV mono / |
| IMPEDANCE |
RCA: 10k ohms; XLR: 20k ohms |
| DIMENSIONS HXWXD
|
13.5" × 13.75" × 12.5625" (34.3cm × 34.9cm × 31.9cm) |
| WEIGHT |
37 lbs. (16.8 kg) |
| FINISHES |
Satin Black |
| LOW PASS FILTER FREQUENCY |
Variable 35 Hz - 150 Hz; Bypass Option |
| SUB / SAT PHASE ALIGNMENT |
Variable 0° - 180° |
| INPUTS |
RCA (S/E) Left and Right or Sub-Out / LFE or Balanced XLR. From Sub-Out / LFE-Out of preamp, processor or other line-level source |
