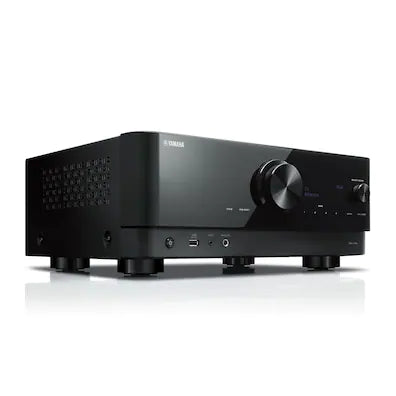

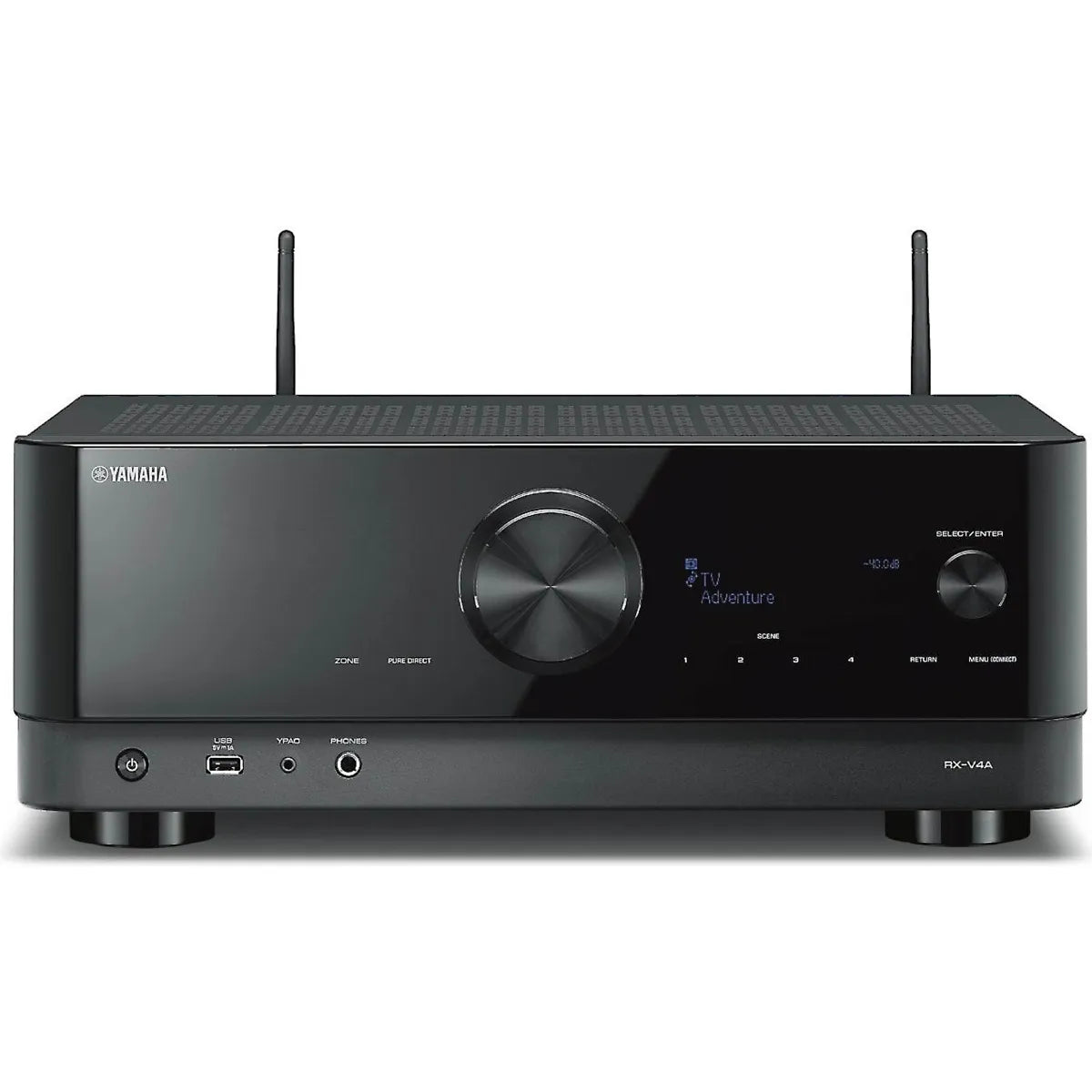

RX-V4A
Enter the world of home theater with the V4A. This AV receiver will completely transform how you listen and watch at home. Plus, plenty of features means plenty of choices on how to enjoy your entertainment.
CINEMA DSP 3D
Enter the world of home theater with the V4A. This AV receiver will completely transform how you listen and watch at home. Plus, plenty of features means plenty of choices on how to enjoy your entertainment.
CINEMA DSP 3D
Incorporates extensive sound field data from world famous concert halls and music clubs to reproduce big theater acoustics within the walls of your home.
Music Enhancer
Restores compressed audio so it sounds the way it was intended to be heard.
High Slew Rate Amplifier
Responds to rapid changes in input level for precise and stable signal transmission.
HDR10+
Provides deeper contrast and more realistic images that stay true to the creators’ intent.
4K/120Hz
Enables a higher refresh rate, giving you a smoother and more realistic viewing experience.
Gaming-dedicated Functions (ALLM,VRR,QMS,QFT)*
Ensures seamless motion and transitions to enhance your performance.
HDMI Multiple Input with Latest Technology*
Multiple HDMI input will equally support the latest HDMI technology to allow next-gen gaming consoles can be connected at the same time.
| Specifications: | ||
|
AV Receiver |
||
|
Amplifier Section |
Channel |
5.2 |
|
Rated Output Power (1kHz, 1ch driven) |
115 W (6 ohms, 0.9% THD) |
|
|
Rated Output Power (20Hz-20kHz, 2ch driven) |
80 W (6 ohms, 0.06% THD) |
|
|
Maximum Effective Output Power (1kHz, 1ch driven) |
145 W (6 ohms, 10% THD) |
|
|
High Slew Rate Amplifier |
Yes |
|
|
Surround Sound Processing |
Surround:AI |
N/A |
|
CINEMA DSP |
Yes |
|
|
DSP Programs |
17 |
|
|
Dialog Level Adjustment |
Yes |
|
|
Virtual Presence Speaker |
Yes |
|
|
Virtual Surround Back Speaker |
N/A |
|
|
Dialogue Lift |
N/A |
|
|
SILENT CINEMA / Virtual CINEMA DSP |
Yes |
|
|
Dolby Atmos |
N/A |
|
|
Dolby Atmos Height Virtualizer |
N/A |
|
|
Dolby TrueHD |
Yes |
|
|
Dolby Digital Plus |
Yes |
|
|
Dolby Surround |
N/A |
|
|
DTS:X |
N/A |
|
|
DTS-HD Master Audio |
Yes |
|
|
Audio Features |
File Format |
MP3 / WMA / MPEG-4 AAC: up to 48 kHz / 16-bit, ALAC: up to 96 kHz / 24-bit, FLAC: up to 192 kHz / 24-bit, WAV / AIFF: up to 192 kHz / 32-bit, DSD: up to 11.2 MHz |
|
Pure Direct |
Yes |
|
|
Compressed Music Enhancer |
Yes |
|
|
High-resolution Music Enhancer |
N/A |
|
|
YPAO multi-point measurement |
N/A |
|
|
YPAO Volume |
N/A |
|
|
Adaptive DRC (Dynamic Range Control) |
Yes |
|
|
Initial Volume & Maximum Volume Setting |
Yes |
|
|
A.R.T. Wedge |
N/A |
|
|
Bi-amp capability |
Yes |
|
|
Audio Delay |
Yes (0-500 ms) |
|
|
DA Converter |
384 kHz / 32-bit BB PCM5101A |
|
|
Video Features |
HDMI eARC |
Yes |
|
HDMI Audio Return Channel |
Yes |
|
|
HDMI Pass-through |
8K60B, 4K120AB, 24GBPS |
|
|
HDMI Up-scaling |
Yes up to 4K |
|
|
HDMI Up-conversion |
N/A |
|
|
Dolby Vision |
Yes |
|
|
HDR 10+ |
Yes |
|
|
VRR/ALLM/QMS/QFT |
Yes (via future update) |
|
|
Video adjustment |
N/A |
|
|

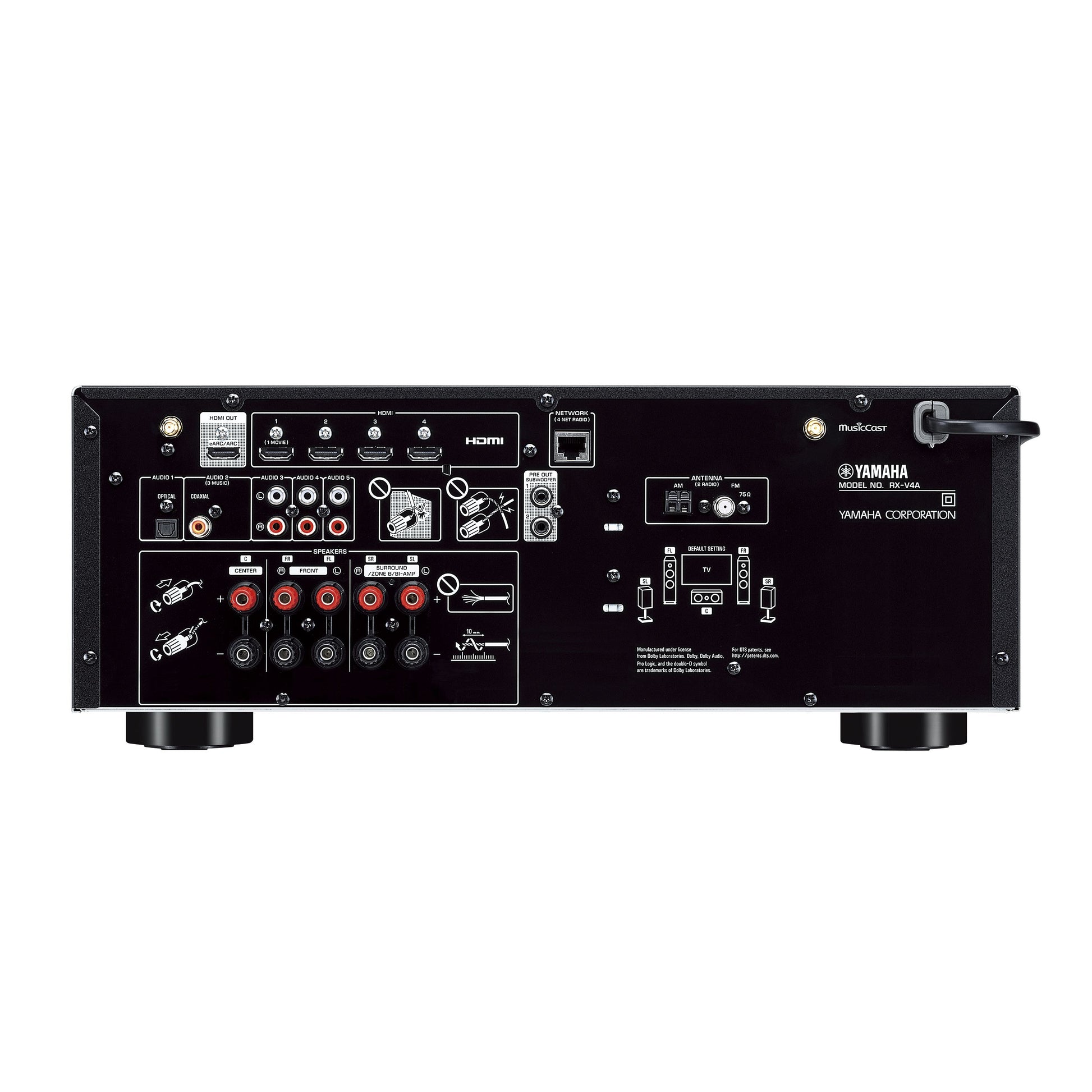

Connectivity |
MusicCast Surround |
Yes |
|
HDMI Input/Output |
4 / 1 |
|
|
HDMI CEC |
Yes |
|
|
USB Input |
Yes |
|
|
Network Port |
Yes |
|
|
Wi-Fi |
Yes (2.4 / 5 GHz) |
|
|
AirPlay 2 |
Yes |
|
|
Bluetooth |
Yes (SBC / AAC) |
|
|
Front AV Input |
USB |
|
|
Digital Audio Input/Output: Optical |
1 / 0 |
|
|
Digital Audio Input/Output: Coaxial |
1 / 0 |
|
|
Analog Audio Input/Output |
3 / 0 |
|
|
Phono Input |
N/A |
|
|
XLR Terminal |
N/A |
|
|
Component Video Input/Output |
N/A |
|
|
Composite Video Input/Output |
N/A |
|
|
Preout |
0.2-ch |
|
|
Headphone Output |
1 |
|
|
Tuner Section |
FM/AM Tuner |
Yes (Availability varies by region.) |
|
DAB Tuner |
Yes (Availability varies by region.) |
|
|
User Interface |
On-screen display |
Graphical User Interface |
|
SCENE |
Yes (4 sets) |
|
|
App Control |
Yes (iPhone / iPad / Android phone / tablet) |
|
|
Web Browser Control |
N/A |
|
|
Remote Control Unit |
Yes |
|
|
Zone Control |
Zone 2 Audio Output |
N/A |
|
Zone 3 Audio Output |
N/A |
|
|
Zone 4 Audio Output |
N/A |
|
|
Powered Zone |
N/A |
|
|
Zone Video Output |
N/A |
|
|
Zone B Output |
N/A |
|
|
Zone GUI |
N/A |
|
|
RS-232C Interface |
N/A |
|
|
+12V Trigger Output |
N/A |
|
|
Remote (IR) Input/Output |
N/A |
|
|
Party Mode |
N/A |
|
|
General |
Standby Power Consumption (IR only) |
0.1 W |
|
Auto Power Standby |
Yes |
|
|
ECO mode |
Yes |
|
|
Dimensions (W x H x D) |
435 W x 171H x 377D mm (with antenna up:435 W x 245 H x 377 D mm);17-1/8"W x 6-3/4"H x 14-7/8"D (with antenna up:17-1/8"W x 9-5/8"H x 14-7/8"D) |
|
|
Weight |
8.8 kg; 19.4 lbs. |
|
