dCS
Rossini CD/SACD Transport
With the Rossini transport, you can experience stunning sound from CDs or SACDs, upsampling CD data to high-resolution DSD, DSD/128 or DXD for even greater resolution and detail, or playing both CDs and SACDs in their native formats. An additional downsampling option is also available for SACD data.
With the Rossini transport, you can experience stunning sound from CDs or SACDs, upsampling CD data to high-resolution DSD, DSD/128 or DXD for even greater resolution and detail, or playing both CDs and SACDs in their native formats. An additional downsampling option is also available for SACD data.
Features:
- Utilises the latest generation dCS Digital Processing Platform for state-of-the-art measured performance and unrivalled musical experience.
- Plays Red Book CDs in their native 16/44.1 format AND upsamples the data to either DSD, DSDx2 or DXD.
- Plays SACDs in their native DSD format AND downsamples the data to 16/44.1 format.
- Configuration Menu – Ability to save/ restore settings, and EasyPlay improves ease-of-use.
- Improved power supplies give lower running temperature and superior tolerance to AC supply variations.
- Multi-stage power regulation ensures sensitive clock / PLL circuitry is unaffected by digital interference.
- Aerospace-grade machined aluminium chassis fitted with tuned acoustic damping panels reduces magnetic effects and vibration.
Specifications:
- Type: Upsampling CD/SACD Transport
- Colour: Silver or Black
- Mechanism: Dual laser CD/SACD mechanism
- Dimensions: 444mm (17.5”) long x 435mm (17.2”) deep x 178mm (7.0”) high. Allow extra depth for cable connectors. Allow space for air flow around the unit
- Weight: 20.6kg (45.3lbs)

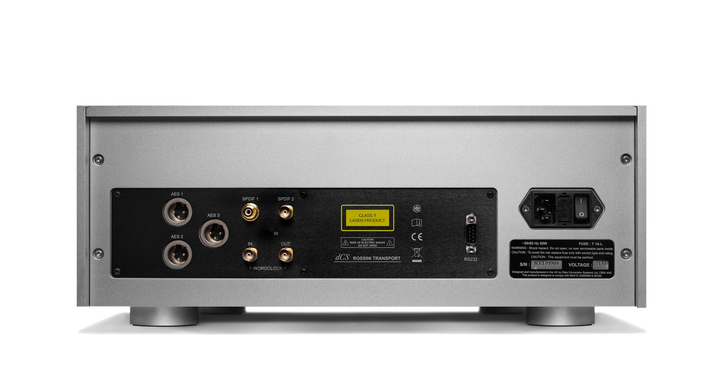

- Digital Outputs: 1 x Dual AES Pair on 2 x 3-pin male XLR connectors (AES1+2). While an SACD is playing, the interface outputs encrypted DSD data. While a CD is playing, the Settings > Upsample Mode menu page sets the interface to output either encrypted DSD data (1 bit at 2.822MS/s) or DXD data (24 bits at 352.8kS/s) or DSDx2 data (1 bit at 5.644MS/s); 1 x AES interface on 3-pin male XLR connector (AES3). Outputs 16/44.1 data, whether a CD or SACD is playing. 2 x SPDIF interface on 1 x RCA Phono and 1 x BNC connectors. Each outputs 16/44.1 data, whether a CD or SACD is playing
- Wordclock I/O: 1 x Word Clock Input on BNC connector, accept standard Word Clock at 44.1, 88.2 or 176.4kHz. Sensitive to TTL levels. Lock range is +/-300ppm. 1 x Word Clock Output on 1x BNC connector. With the Transport in Master mode, a TTL-compatible Word Clock is output
- Clock Accuracy: The calibration accuracy when shipped is +/-10ppm, (not temperature compensated)
- Software Updates: Updates are loaded directly from CD-R
- Local Control: dCS Universal Remote (supplied with Rossini Transport as standard. Via the Mosaic app, RS232 app or a third party device)
- Power Supply: Factory set to either 100, 115/120, 220 or 230/240V AC, 50/60Hz
- Power Consumption: 16W typical / 50W maximum. Consumes less than 0.5W when powered down from the front panel
