Dan D'Agostino Master Audio Systems

Progression S350 Stereo Power Amplifier

Prices in USD

Regular price $25,950.00
- +

Prices in USD



The Progression S350 Stereo Amplifier adds a potent stereo option to the Progression family.  Leveraging our innovative Super Rail circuitry, the Progression S350 Stereo Amplifier exploits this unique technology delivering remarkable control and fidelity to any connected loudspeaker.

Every amplifier employs a voltage rail, actually two, a positive one and its companion negative partner. Voltage rails support the delivery of power to the speaker. The music signal swings between these two rails but due to natural loss, the musical signal never reaches the output rails’ full capability. Our Super Rail overcomes this limitation. Borrowing the idea of a turbo in a car engine, the Super Rail employs higher voltage rails in the sections prior to the output stage. This voltage "boost" allows the musical signal to exploit the full capability of the output voltage rails. Extending the musical signal swing closer to the output rails maximizes the performance of the output circuitry design itself. The result is improved dynamics, lower distortion, and a fierce grip of the speaker.

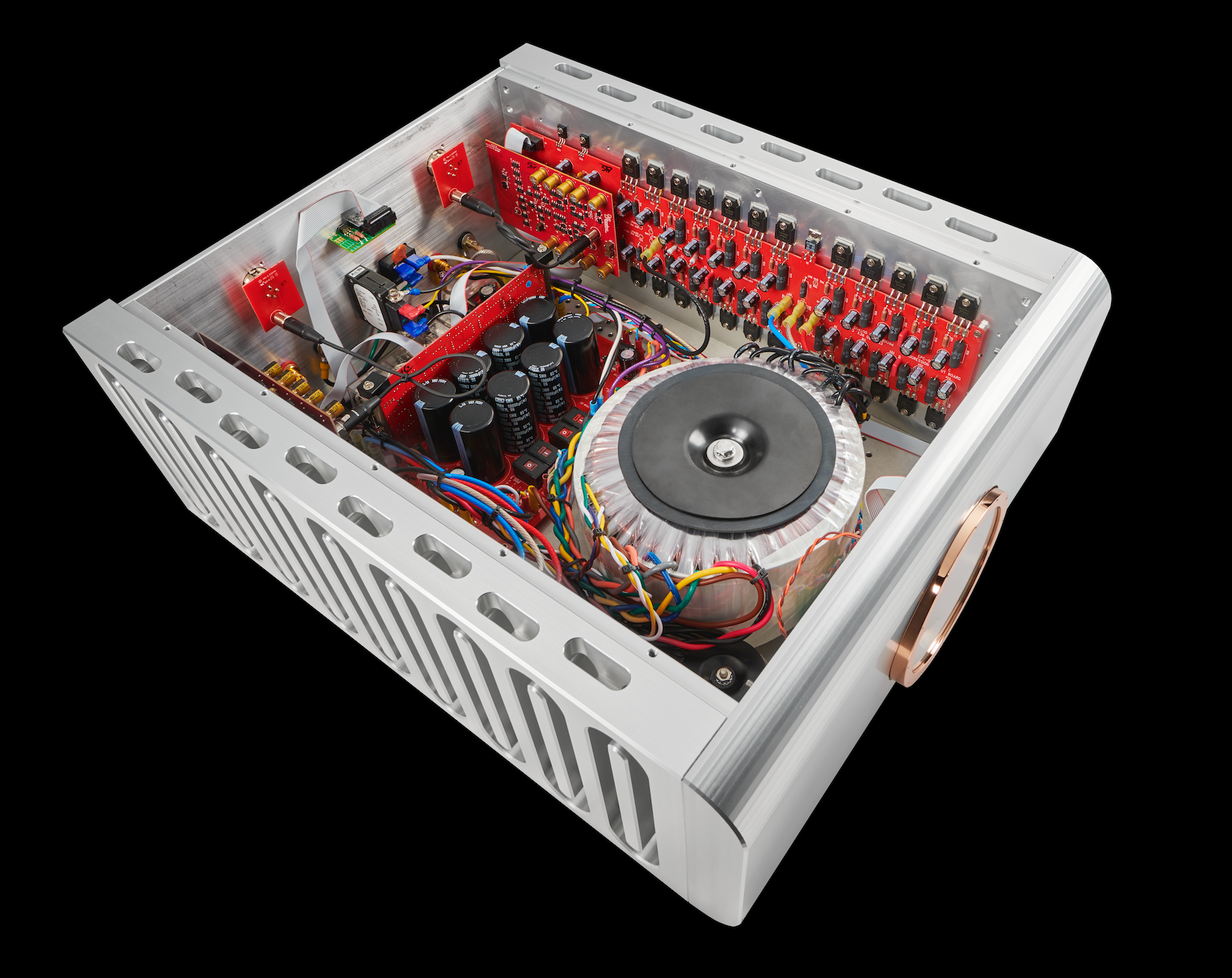

Abundant power is required for realistic sound quality and is a cornerstone of Dan D’Agostino Master Audio Systems’ amplifier design. The Progression Stereo continues this practice. A graceful anodized Aluminum chassis houses a 2,000 VA power supply transformer coupled to nearly 100,000 microfarads of power supply storage capacitance. Paired to this foundation is a fully complementary driver stage, and output circuitry outfitted with 48 power transistors - 24 each for the left and right channels generating an imposing output. Initially used in the Relentless Mono, the output power device provides the foundation for an upgraded output stage. This transistor extends high frequency response, increases power handling 50%, and features tighter tolerance gain matching between complementary NPN/PNP pairs.  A wider safe operating area and superior gain linearity provides greater thermal stability throughout the amplifiers’ power delivery. Coupling the new output device to the high efficiency heat sink design affords an increase in operating bias. Higher operating bias lowers crossover distortion improving instrument timbre and tonal reproduction. The Progression Stereo delivers 350 Watts into 8 Ohms and delivers 700 Watts into 4 Ohms, and properly doubles its output again into 2 Ohms, with a 1,400 Watt power output. The essence of live music, dynamic contrasts, are faithfully reproduced with leading edge transients spectacularly depicted.

  • Signal-to-Noise Ratio: 105 dB, unweighted / 75 dB A weighted

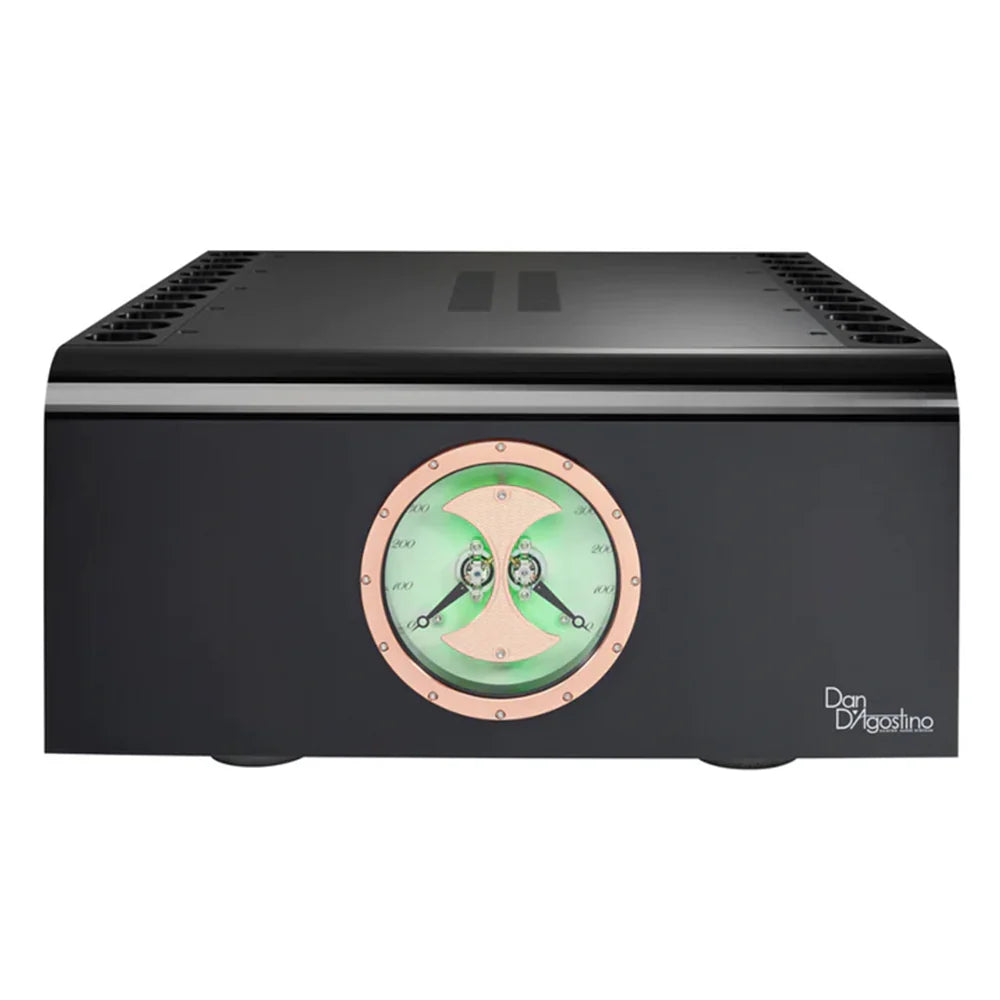

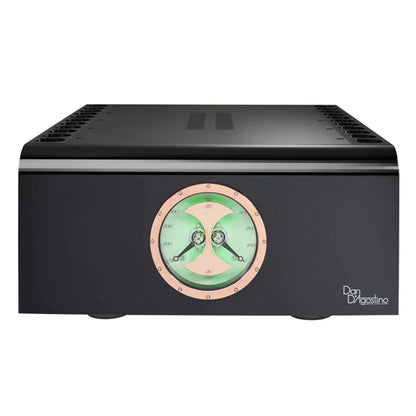

  • Finish: Silver or Black with Custom Finishes Available Upon Request
  • Total Harmonic Distortion: 350W @ 8Ω .015% @ 1 kHz
  • Input Impedance: 100 KΩ
  • Output Impedance: 0.1Ω
  • Power: 350 watts @ 8Ω 700 watts @ 4Ω 1,400 watts @ 2Ω

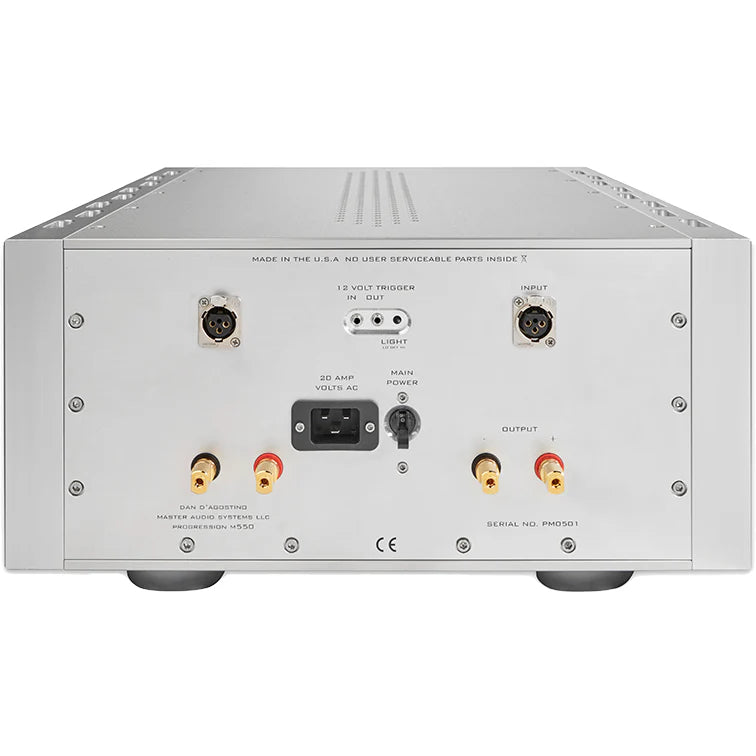

  • Inputs: 2 balanced XLR
  • Dimensions: 17.875 x 9.0 x 23.0 in / 45.4 x 22.9 x 58.4 cm
  • Weight: 115lb / 52.2 kg
