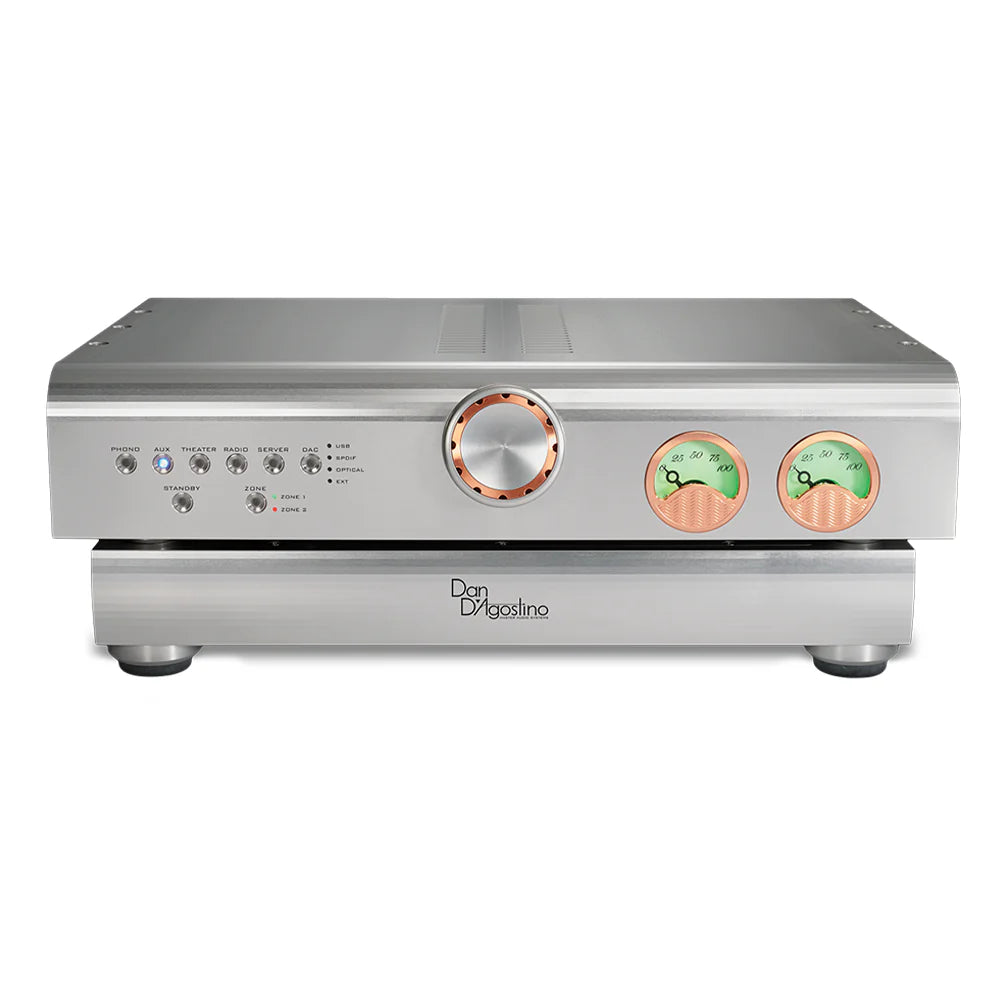

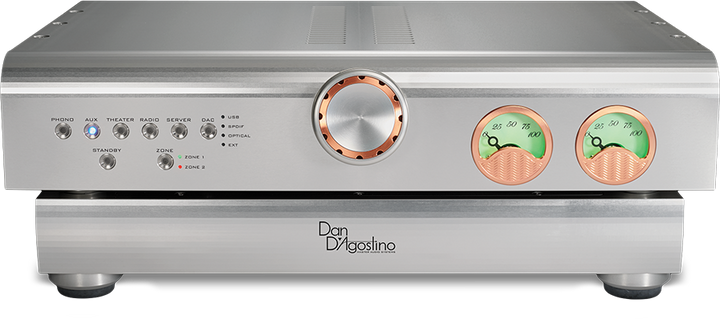

Progression Preamplifier

Performance and Flexibility

The Progression Preamplifier adds new features previously not included in a D’Agostino preamplifier. Most noticeably, the Progression Preamplifier features an optional digital module. The digital module adds coaxial, Toslink, and USB inputs to the analog base model. Field upgradeable, the optional digital module can be added at any time. A fully differential DAC handles PCM signals up to 24 bit/384 KHz and DSD signals up to 4xDSD (11.2 MHz). This digital module feeds a discrete, fully complementary and balanced analog signal path from input to output. Negative feedback is not used anywhere in the Progression Preamplifier, nor is it necessary. Open-loop distortion is less than < 0.006% and the open loop bandwidth extends to over 100KHz.

Specs:

• Frequency Response: 0.1 Hz to 1 MHz, -3dB / 20 Hz to 80 kHz, +/-0.5dB

• Signal-to-Noise Ratio: -95 dB, unweighted

• Gain: +8 or +14 dB, Switchable

• Finish: Silver or Black with Custom Finishes Available Upon Request

• Distortion: < 0.018% THD+N, 20 Hz to 20kHz

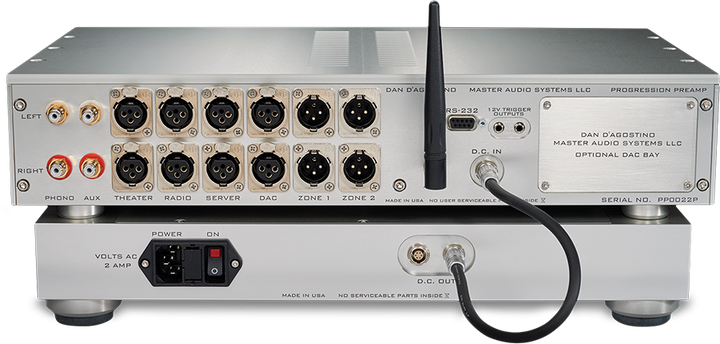

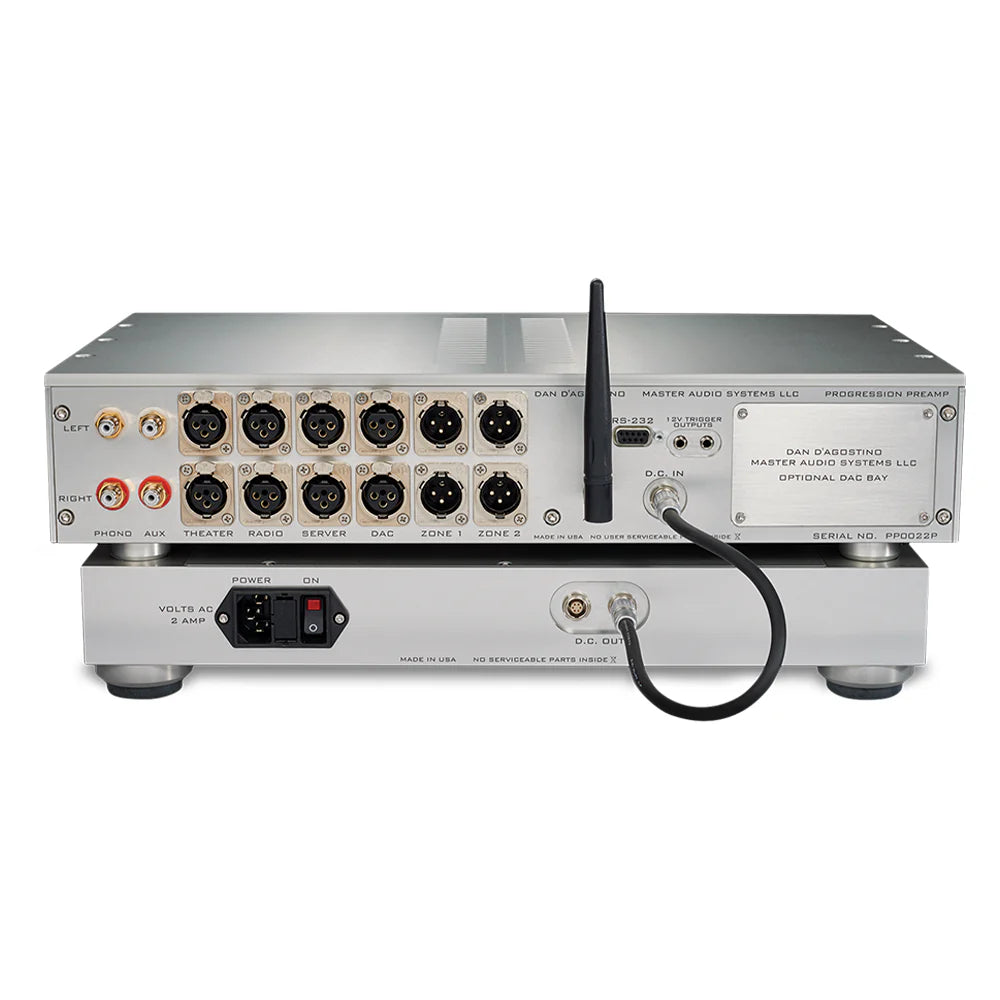

• Outputs: 2 stereo pairs of balanced XLR

• Manual: owners-manual-DDMAS-progression-preamplifier-20170913.pdf (850.42 KB)

• Power Consumption (at Standby): < 40W

• Analog Inputs: 4 stereo pairs of balanced XLR, 2 stereo pairs of single-ended RCA

• Digital Inputs (w/DAC Module Installed): 1 USB Type A, 1 Optical Toslink, 1 SPDIF Coaxial

• Control: RS-232, 2 12V trigger outputs
