Available with the choice of either a dome (D20D) or a ribbon (D20R) tweeter.

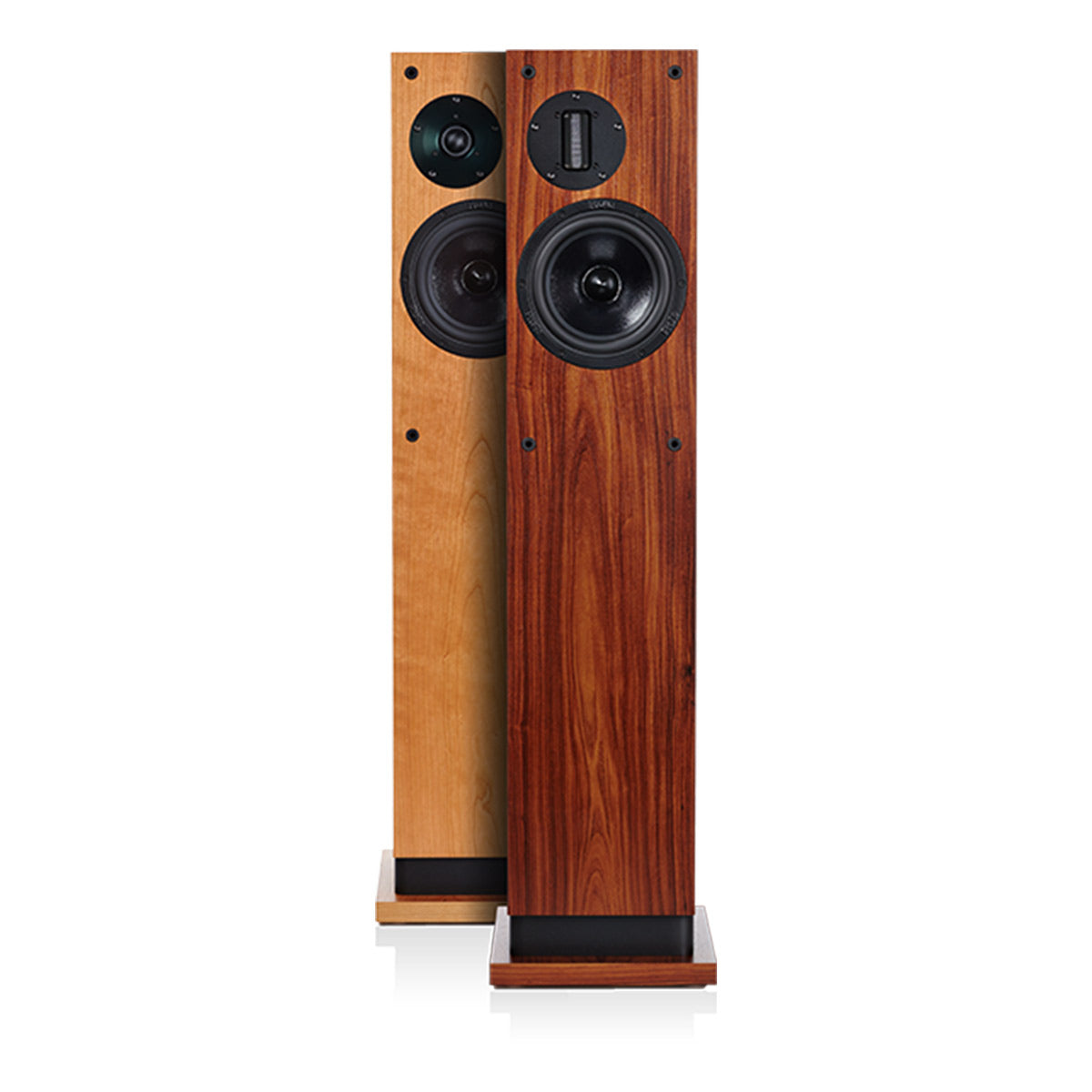

The cabinet design uses the same type of bass loading as the D30S and D48 models which makes the speaker easier to position with respect to its frequency response.
The result is a wonderful open and expansive midrange with a substantial bass and sweet and detailed high frequencies from either ProAc tweeter option. A large sound stage is also a bonus.
*Premium finishes to order at extra cost. Call store for purchase and more info*
SPECIFICATIONS
-
Nominal Impedance: 8 ohms
-
Recommended Amplifiers: 20 to 180 watts
-
Frequency Response: 28Hz–33kHz
-
Sensitivity: 88.5dB linear for 1 watt at 1 metre
-
Bass/Midrange Drivers: ProAc 165mm (6.5”) unit featuring glass fibre weave cone, Excel magnet system and unique acrylic damping phase plug.
-
Dome Tweeter Option (D20D): ProAc 25mm (1”) silk dome, air cooled with inner damping. Mirror image offset.
-
Ribbon Tweeter Option (D20R): ProAc ribbon tweeter featuring a ribbon lighter than a human hair, with rear chamber damping and alnico magnet.
-

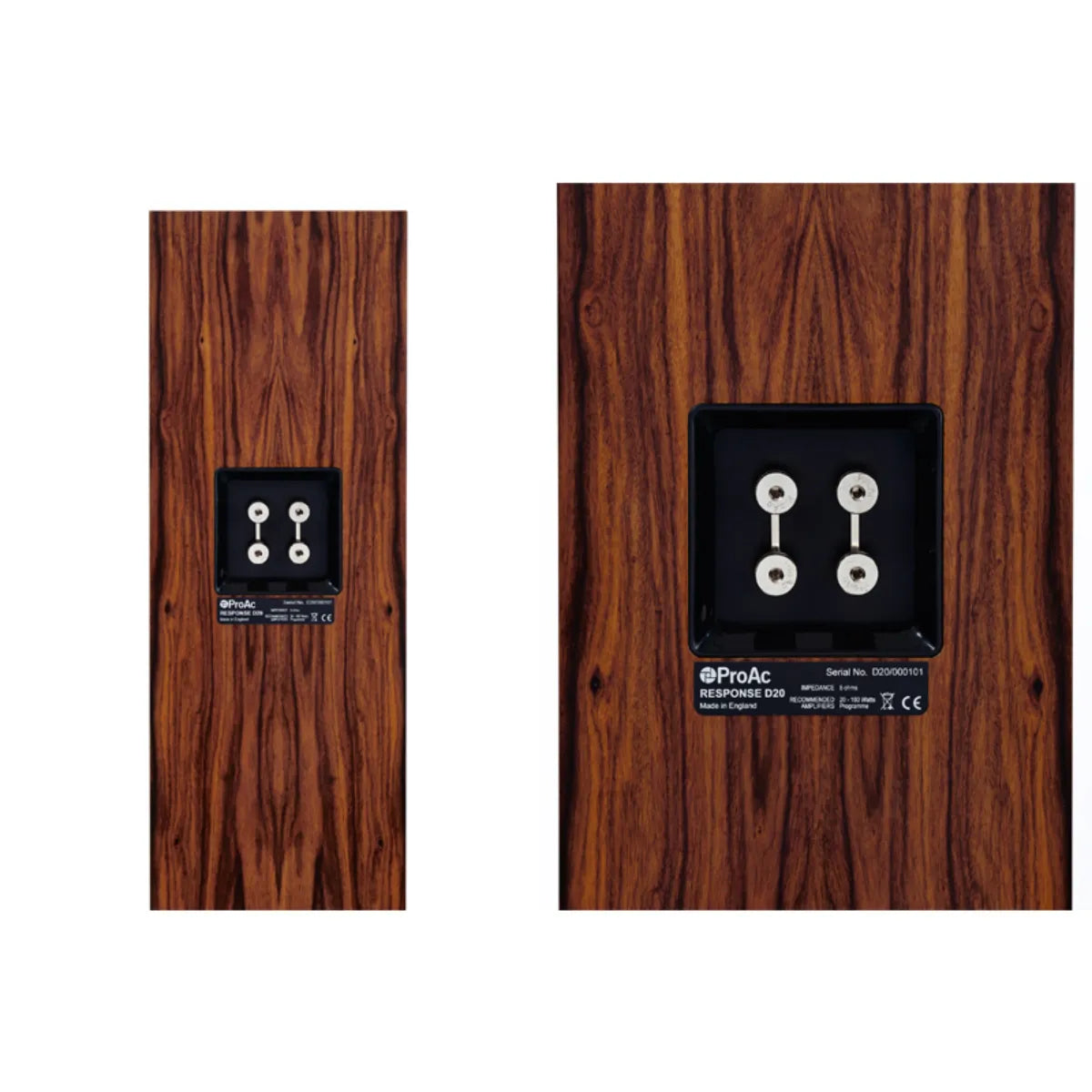

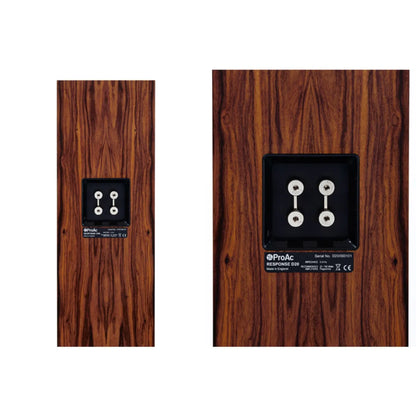

Crossover: Finest components on dedicated circuit board. Multistrand oxygen-free copper cable throughout. Split for optional bi-wiring or bi-amplification.
-
Height (Cabinet): 978mm (38.5”) on spikes
-
Width (Cabinet): 193mm (7.6”)
-
Depth (Cabinet): 282mm (11”)
-
Weight: 24kg (52.9lb) each cabinet
-
-
Grille: Acoustically transparent crimplene. Magnetic grilles on all finishes.
-
Standard Finishes: Black Ash, Mahogany, Cherry, Natural Oak and Walnut
-

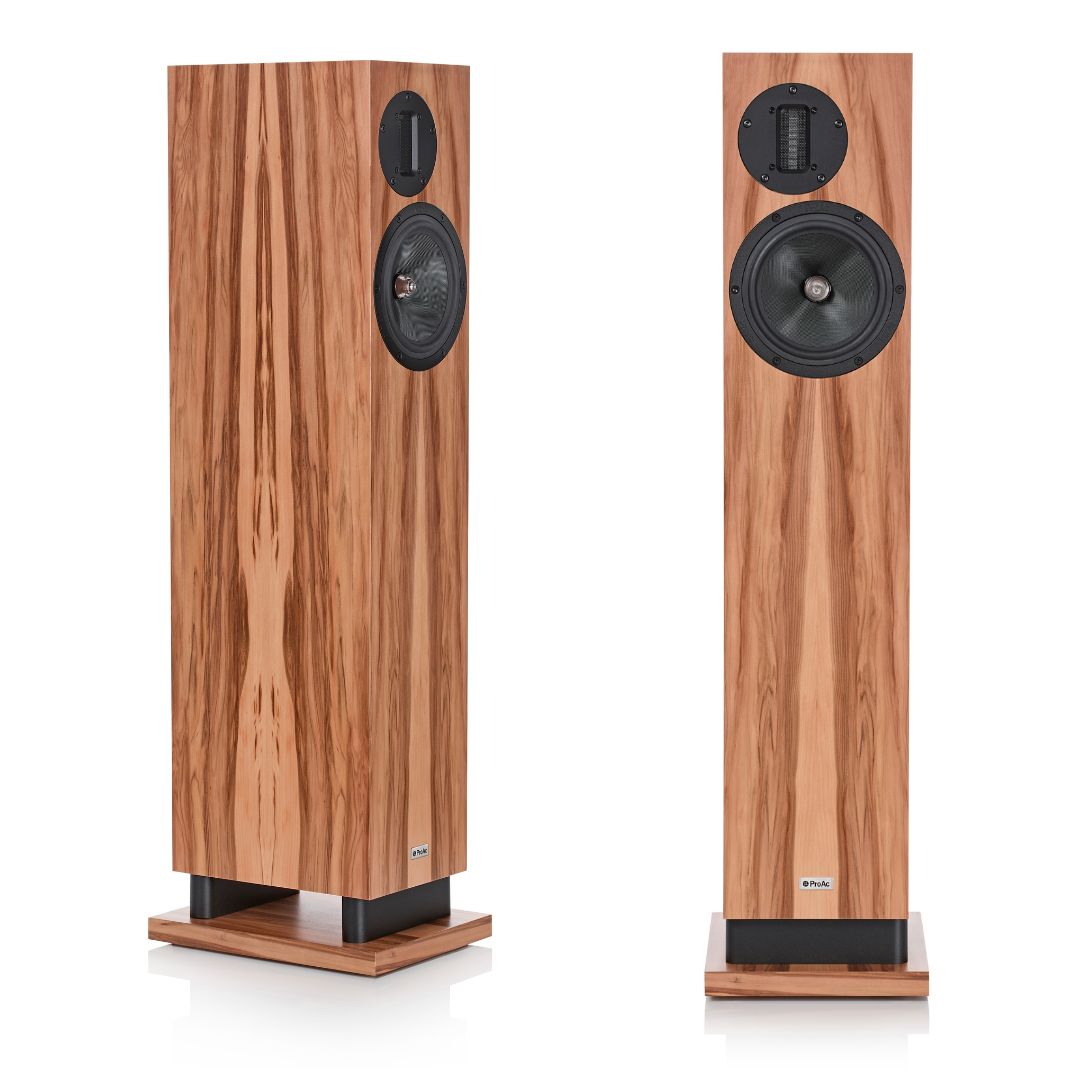

Premium Finishes: Liquidambar, Rosewood and Ebony. Premium finishes available to order at extra cost.
