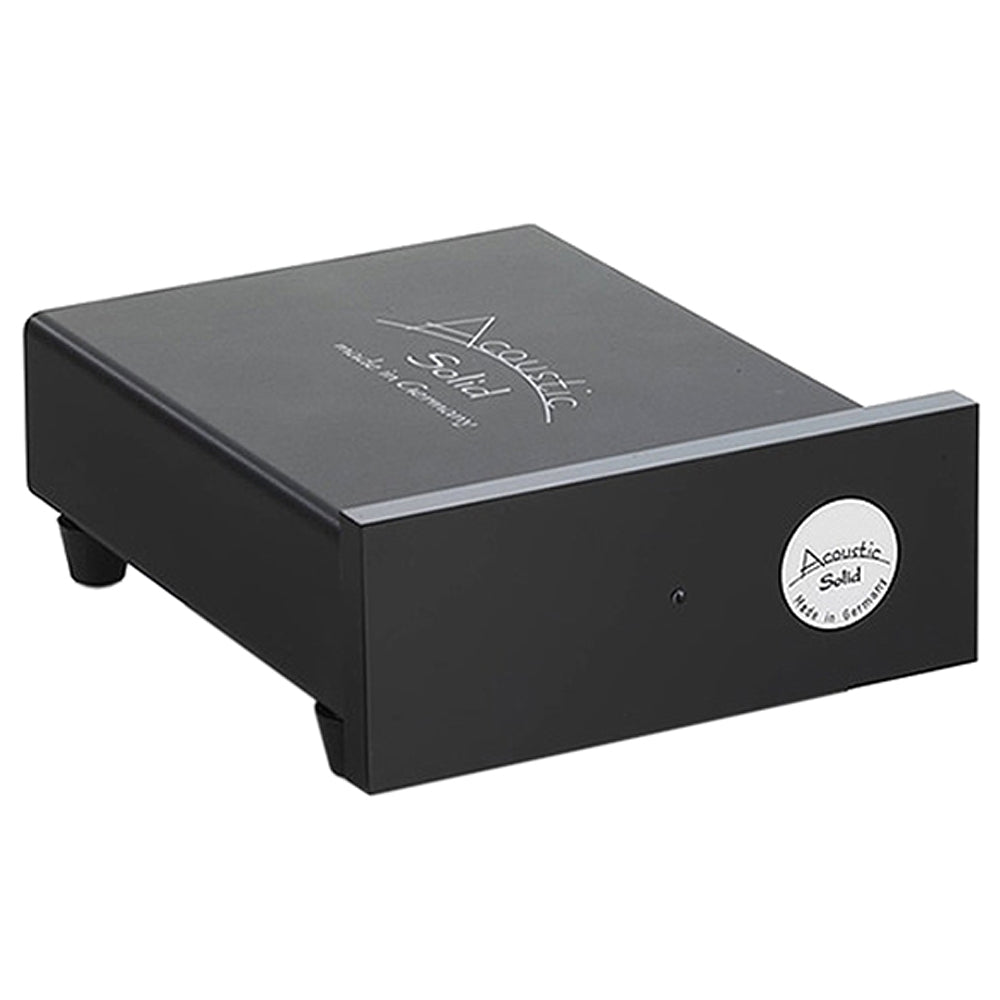

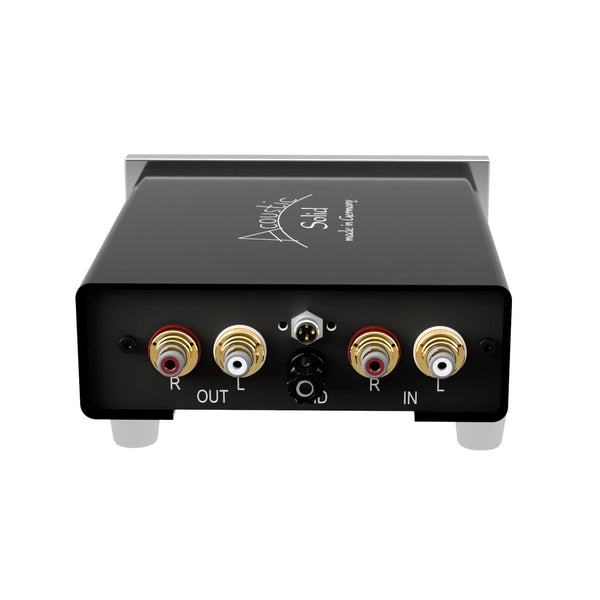

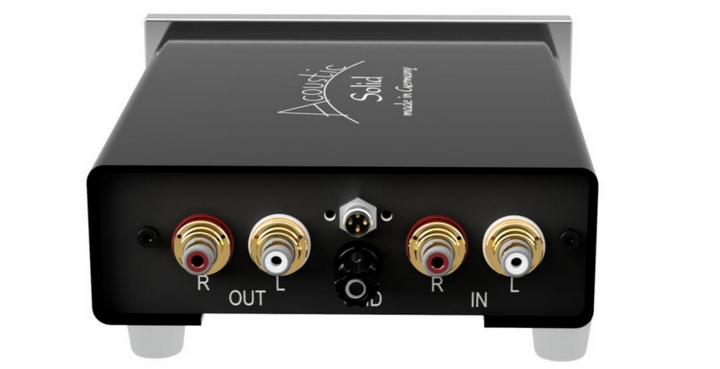

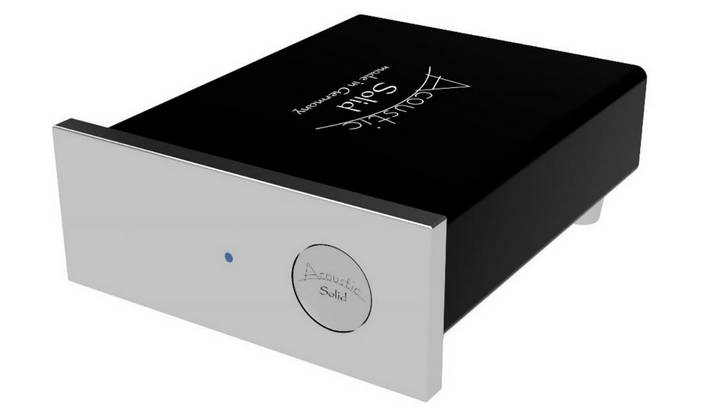

Acoustic Solid Phono Pre-amplifier

Outstanding adaptability of all types of cartridges through a total of 6 channel-separated dip switches, where the gain between 32 and 64 dB, the resistance adjustment between 47 kOhm and in 10-ohm increments between 50 and 680 Ohm can be made. In addition, there is a fine-grained capacity adjustment available for users of MM systems.

Specifications:

• Frequency Response: 10Hz to 20kHz (+-0.2db)
• Distortion: <0,005%
• Signal-to-noise: > 99 dBA bis > 76dBA relative to 2 V rms Rated Output voltage depending on gain
• Crosstalk attenuation: > 103 dB relative to 2 V rms Rated Out voltage
• Input impedance per Input: 50ohm...680 Ohm in 10 Ohm steps and 47 kOhm
• Input capacitance per Input: 100pF...600pF in 50 pF steps
• Amplification: +32dB...+64dB at 1 kHz in 4 dB steps
• Output Level: 10 V rms max. Output Current: 35 mA rms max. Output Impedance: 50 oHm
• Dimensions: 140 x 70 x 178 mm
• Weight: 1 kg
