Phono Box RS2

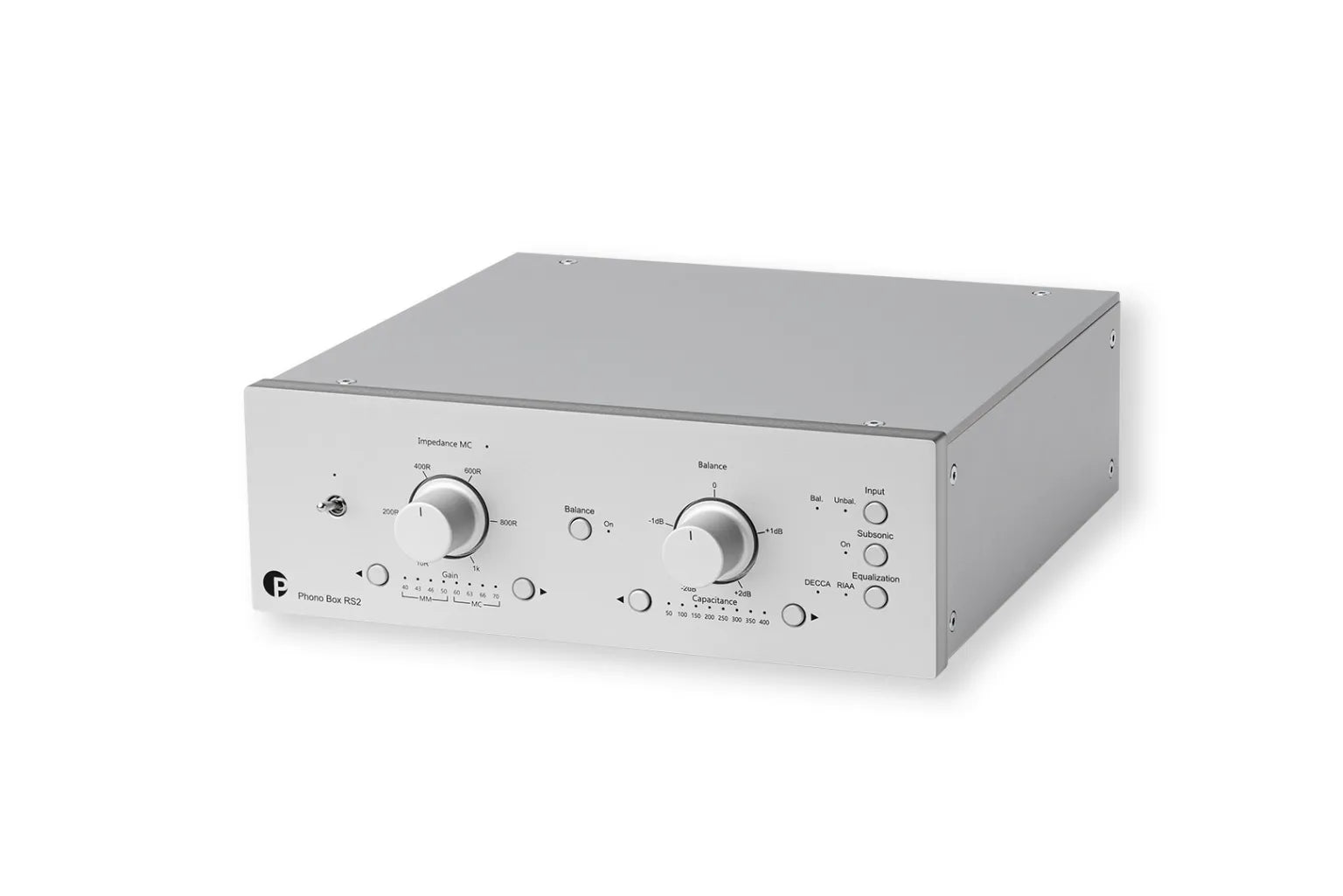

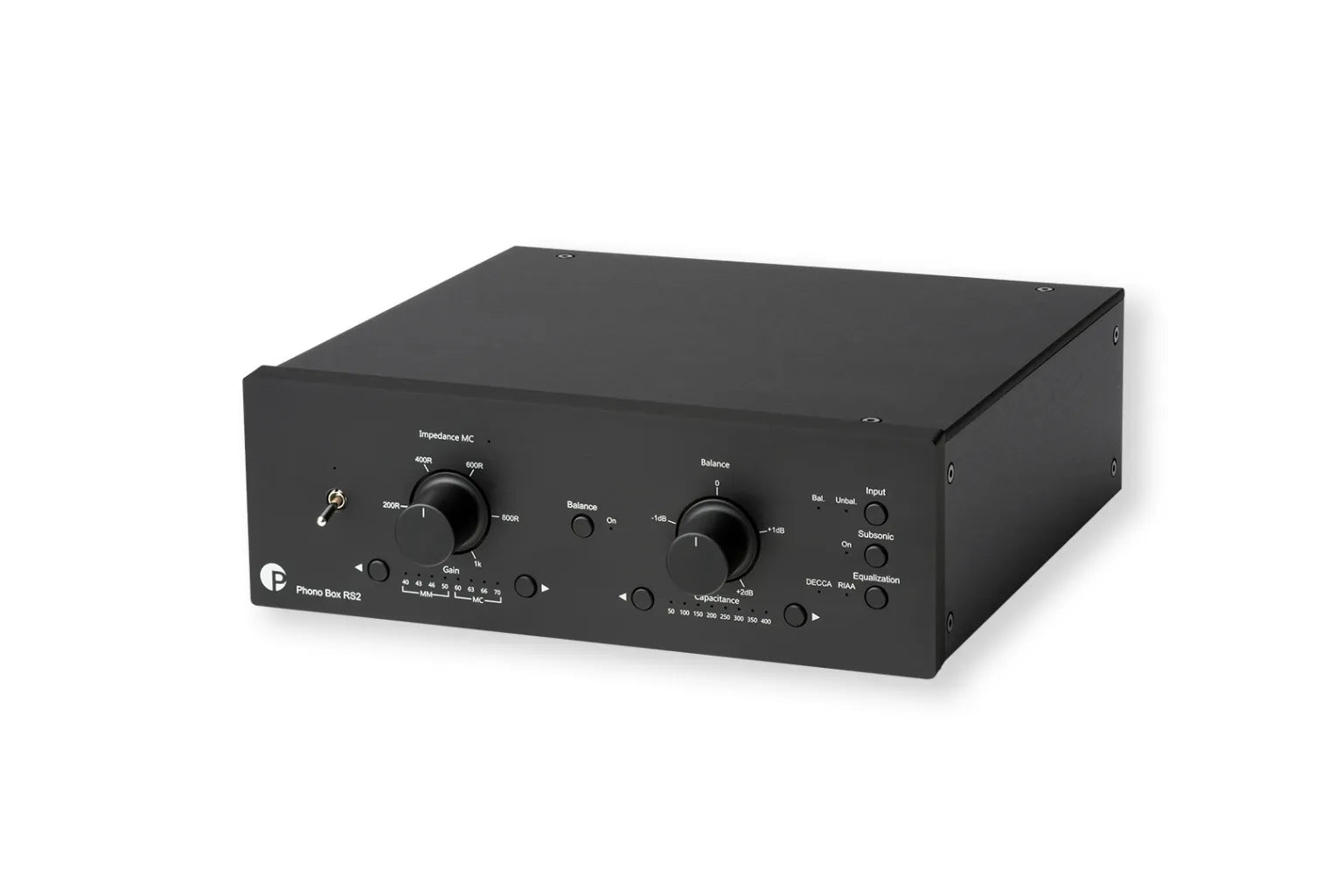

Available in black and silver.

Regular price $2,149.99
- +

Available in black and silver.

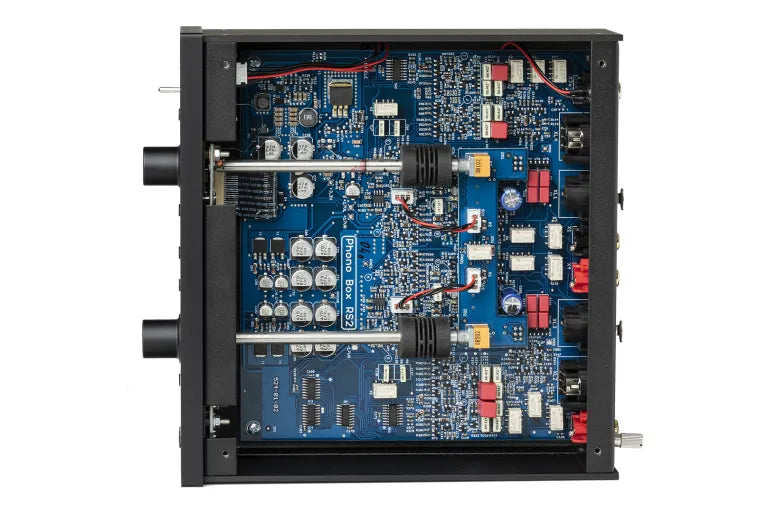

"The Phono Box RS2 is the ultimate phono preamplifier of the highest class. It is fully balanced from the input to the output. Electronics are fully discrete, no op-amps are in use and it uses split passive RIAA and DECCA equalization."

Technical Specifications

Input impedance Fixed 47kohms, variable 10 - 1000 ohms
Load capacity switchable 50, 100, 150, 200, 250, 300, 350, 400 pF
Gain MM: RCA: 40, 43, 46, 50 dB (+6dB using XLR)
Gain MC: RCA: 60, 63, 66, 70 dB (+6dB using XLR)
Signal to noise ratio MM (40dB): 89dB A-wt (10mV); MC (60dB): 79dB A-wt (1mV)
THD < 0,0015% (MM 40dB, 1kHz); < 0,0024% (MC 60dB, 1kHz)
RIAA accuracy within 0,4dB/20Hz - 20kHz
SubsonIc at 20Hz with 18dB/octave

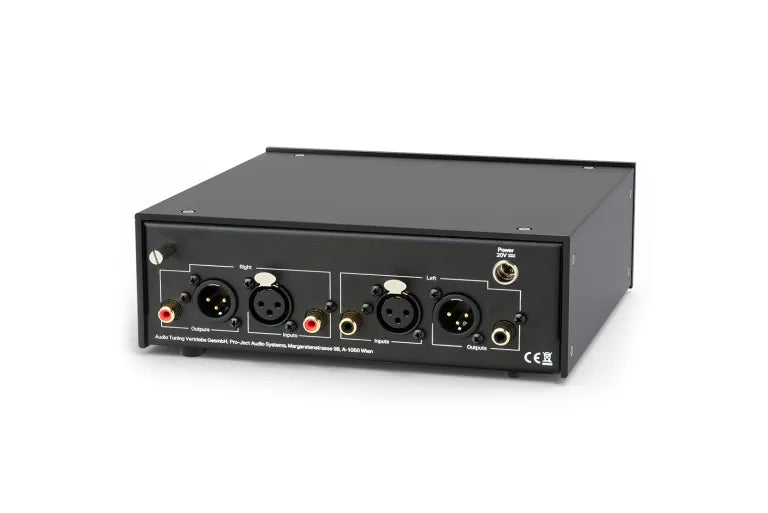

Inputs RCA & XLR
Outputs RCA & XLR
Power supply 20V/3A DC; 110 - 240V, 50/60Hz
Power consumption 350mA DC < 1 watt standby
Dimensions W x H x D (with sockets) 206 x 72 x 200 mm
Weight 1600 g without power supply
