PH-1000 is a premium phono stage which offers exclusive and unique features including a large variety of Equalization Curves, Loads,
Capacitance and Gain ultra-fine adjustments, designed to complete top quality turntable audio systems achieving the pinnacle of audio
performance.
Being very easy to use, PH-1000 is an innovative phono stage where all possible options are selectable from the remote
control and from the front panel SKC proprietary rotary knob. All functions can be adjusted while the music is playing to allow precisely
setting-up any record listened to. PH-1000 features 3 independent inputs one of which XLR balanced, 24 Equalization Curves, 6 Gain level
set-ups, 12 pre-selected Loads to match the cartridge impedance, 6 Capacitance options dedicated to MM cartridges as well as
Stereo/Mono and Swapping Channels options completing the most advanced phono stage operational on the market. PH-1000 is a fully
analogue unit designed to preserve the audio signal purity the best. Its “Discrete Components Design” also guarantees absolute superiority
over digital solutions. All selectable options are managed via High-End audio-grade analogue sealed single switches to shorten the audio
signal path taking the best sound out of any vinyl. PH-1000 is controlled via the front knob and remote handset while all functions are
displayed on a 3.5” front panel colour monitor powered by a custom Gold Note firmware loaded in a micro SD Card which can be easily
updated via PC when necessary. The micro-controller is separated and independent from the audio signal path to avoid any interferences
to the audio signal. As per other Gold Note sources from the 1000 series PH-1000 features a modular design and allows matching a special
external Power Supply and Tube output stages enhancing the audio performance to the pinnacle of the High-End audio world.

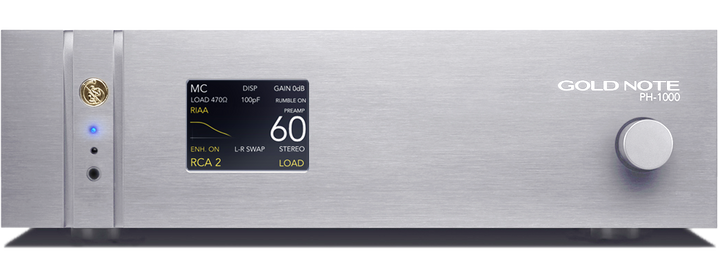

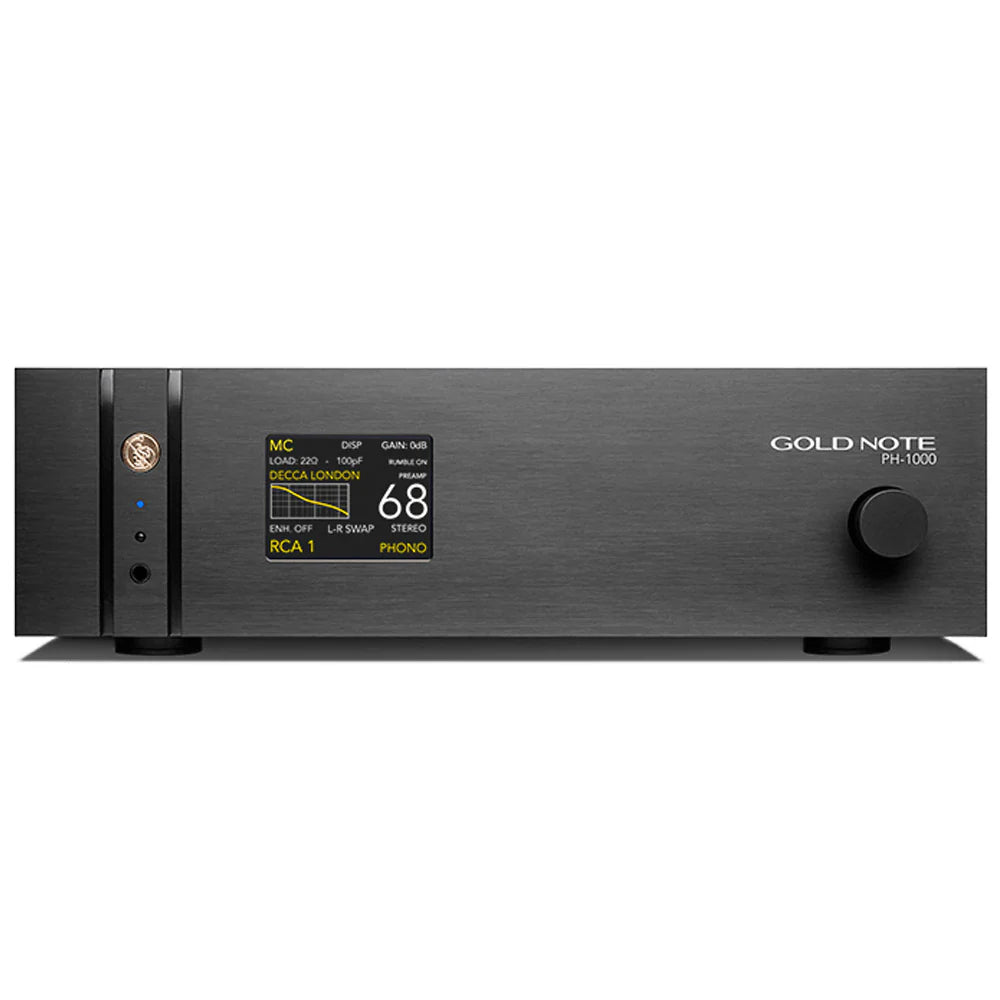

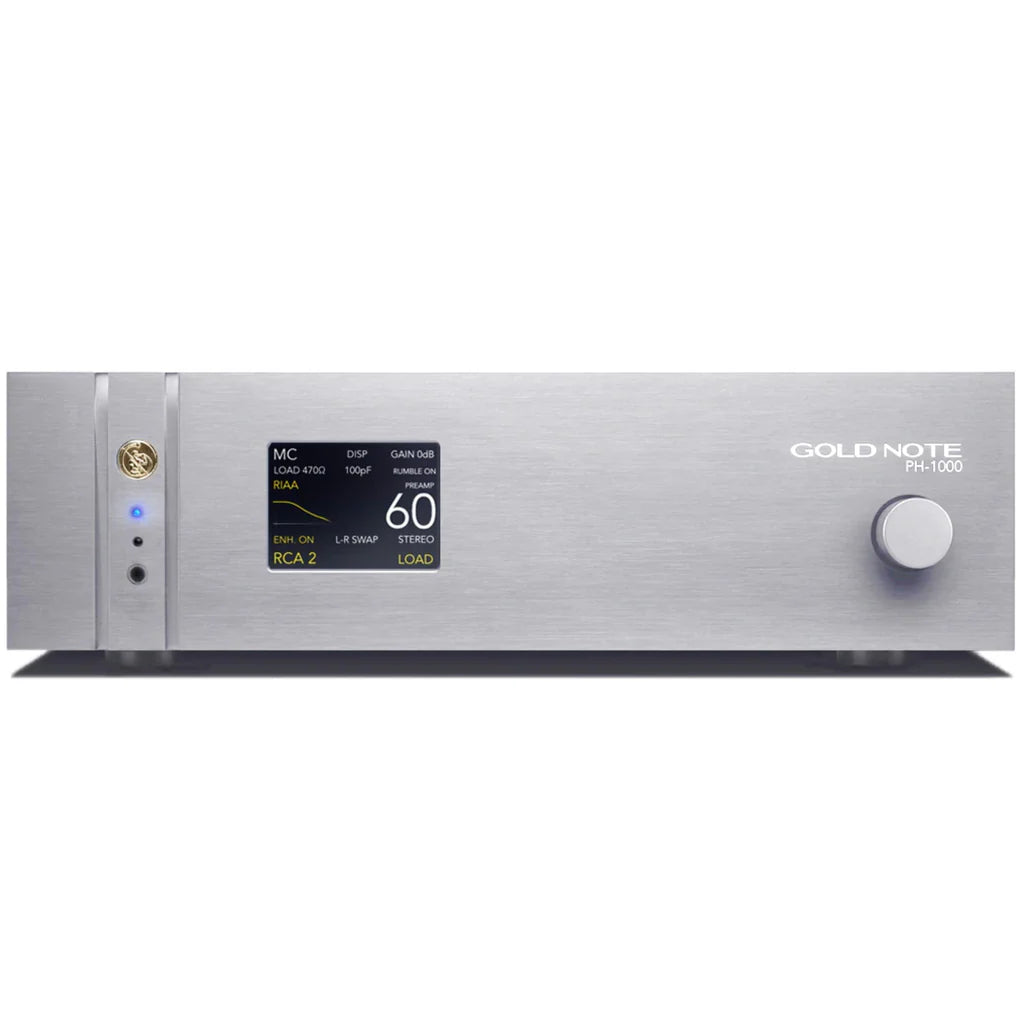

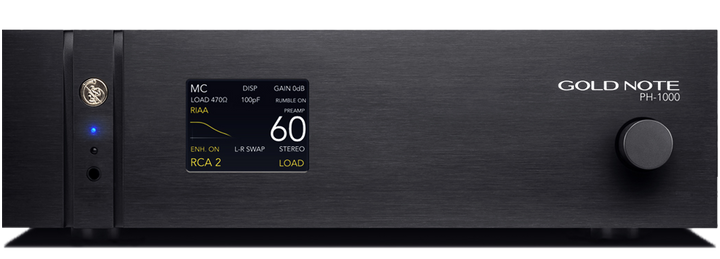

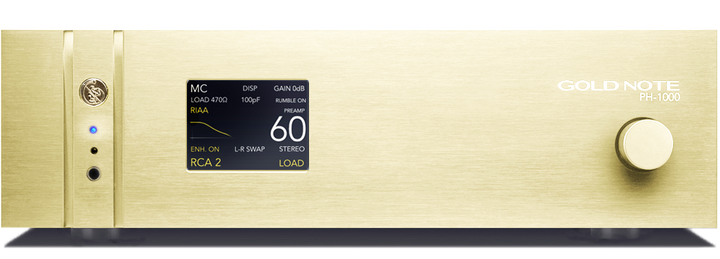

Available in three brushed aluminum finishes: Gold, Silver, and Black.
Main Details
6 Output stages design Phono Stage made with discrete components. 3 independent stereo 2 RCA and 1 XLR Inputs. Frequency response:
20Hz – 20KHz. 24 EQ Curves set-up [+ Enhanced Gold Note proprietary EQ curves] @ +/- 0.3dB max. THD (Total Harmonic Distortion):
<0.01% MAX. Signal to noise ratio: -93dB. Dynamic range: 110dB. Output impedance: 50Ω. Gain in MM 40dB adjustable 34 to 49dB (50 to
280 times) in 6 steps. Gain in MC 65dB adjustable 59 to 74dB (890 to 5000 times) in 6 steps. On/Off switchable subsonic filter: 10Hz/36dB
oct. Adjustable Mono/Stereo, Channel Swapping R/L, L/R. IR receiver for remote control. WIFI (optional). Weight: 11Kg
Dimensions: 430mm W | 135mm H | 375mm D
Power
Dual Mono linear power supply 100-240V with automatic selection. Power consumption: 30W. PSU Input for special external power supply
PSU-1000 & PSU-1250

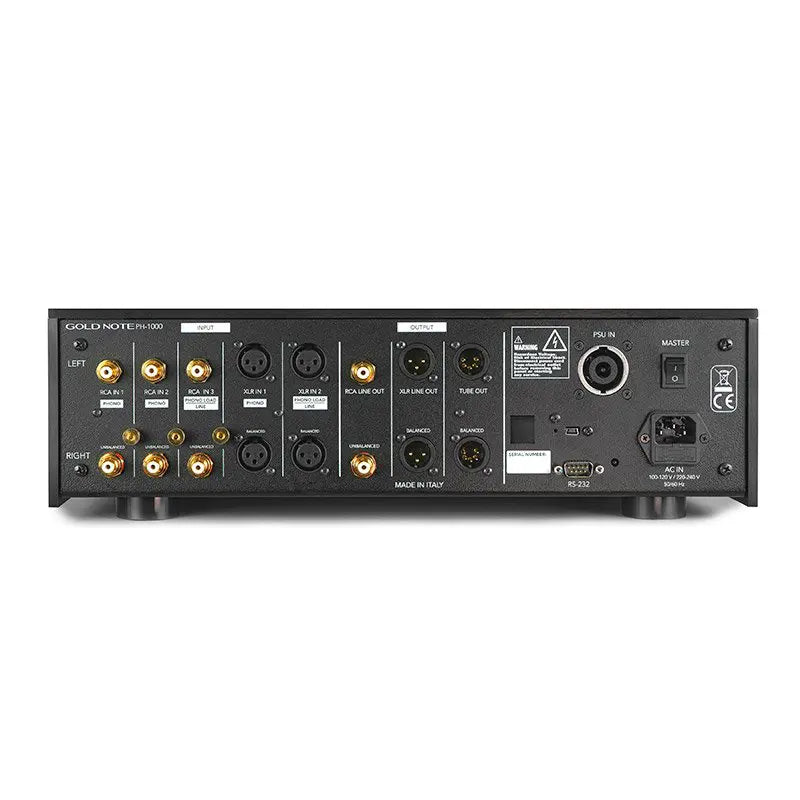

Audio Outputs
2x Stereo RCA (unbalanced) @ 1 Volt, 1x Stereo XLR (balanced) @ 4 Volt, 1x Stereo for Tube (balanced GN) for optional TUBE-1006 &
TUBE-1012
Audio Inputs
Analogue inputs: 2 separate independent stereo RCA & 1 XLR
Input capacitance selectable MM: 100pF, 150pF, 220pF, 330pF, 470pF, 1000pF
Input sensitivity: 0.1mV MC up to 8.0mV MM
Input impedance: 12 selectable options [100KΩ, 75KΩ, 47KΩ, 33KΩ, 22KΩ, 1KΩ, 470Ω, 220Ω, 100Ω, 47Ω, 22Ω,10Ω]
Gain: 65dB MC - 40dB MM with 6 options (-6dB, -3dB, 0dB, +3dB, +6dB, +9dB]
