PH-10
The new PH-10 isn't any ordinary phono pre-amplifier---and you can tell. Engineered to allow ultra precise adjustments and let you enjoy the best out of your system and with two separate RCA inputs, you will be able to connect independently two different tonearms and tune it to match each cartridge specs.
The new PH-10 isn't any ordinary phono pre-amplifier---and you can tell. Engineered to allow ultra precise adjustments and let you enjoy the best out of your system and with two separate RCA inputs, you will be able to connect independently two different tonearms and tune it to match each cartridge specs.
Once the tonearm is connected, PH-10 can be adjusted with 4 different GAIN levels [-3dB, 0dB, +3dB, 6dB] to
match precisely the output level of any MM or MC cartridge. The perfect setup is guaranteed with 9 different load options - 10Ω, 22Ω, 47Ω,
100Ω, 220Ω, 470Ω, 1000Ω, 22KΩ, 47KΩ. Select between 3 equalization curves and experience outstanding performances. You will finally
be able to switch from the internationally recognized RIAA curve, to the DECCA-LONDON or the AMERICAN-COLUMBIA curve, always
graphically shown on the front display. And there's more, because you will also be able to “enhance” each curve with a modern Gold Note
proprietary design for superior dynamic and powerful results. Built from a solid block of machined aluminum and designed to elegantly

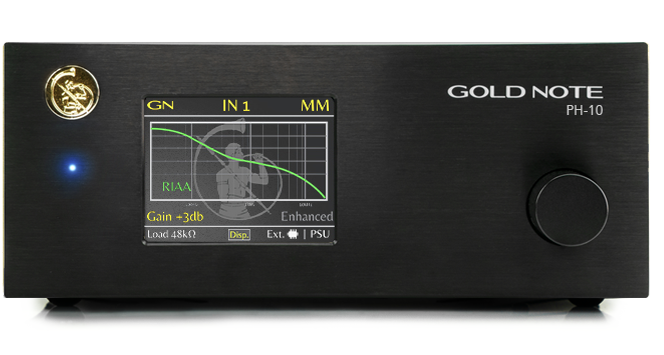

cool the sophisticated electronics. PH-10 shows every detail on its 2,8” color display and everything is powered by Gold Note proprietary
SKC - Single Knob Control technology – an intuitive control system developed to easily browse and select all the unit's functions. PH-10
comes with a USB port to quickly update the unit via computer anytime new software is available. The unit can be externally powered by
a dedicated inductive dual-mono power supply to enhance even more the audio performance.

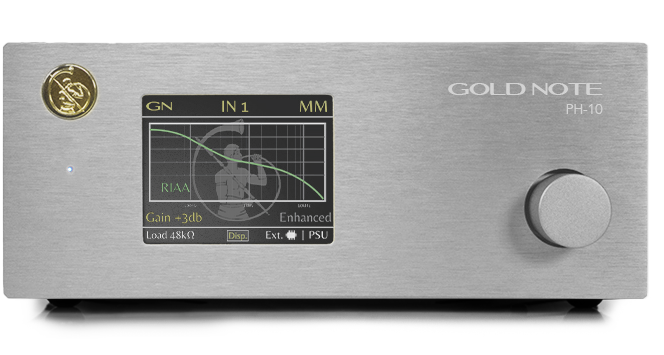

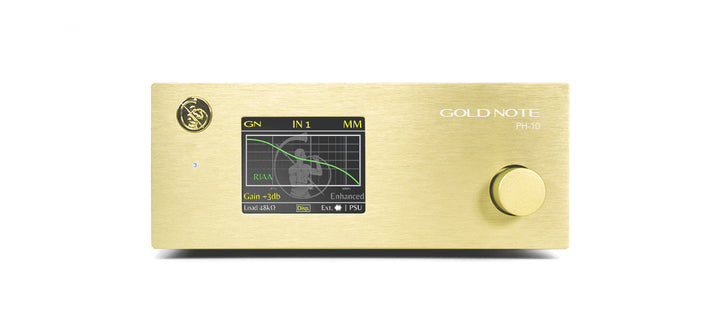

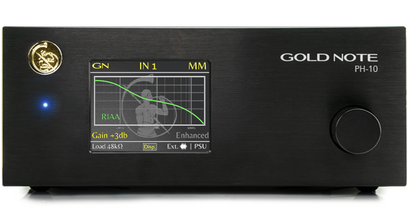

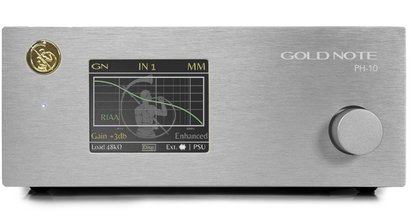

Available in three brushed aluminum finishes: Silver, Gold and Black
Main Details
Phono Pre-amplifier with SKC and TFT color display
Equalization Curve control: 3 selectable curves [RIAA - Decca-London - American-Columbia] with enhanced option for each
Subsonic filter: 10Hz/36db octave
Frequency response: 2Hz – 200KHz @ +/- 0.3dB
THD (Total Harmonic Distortion): <0.005% MAX
Signal to noise ratio: -89dB
Dynamic response: 105dB
Output impedance: 50Ω
Phase response: linear phase, absolute phase inverted
Weight: 4Kg
Dimensions: 220mm L | 80mm H | 260mm D
Power
Main supply: 100V to 245V ▪ 50/60Hz (depending on market destination, not convertible)
Power consumption: 30W super linear power supply
Audio Outputs

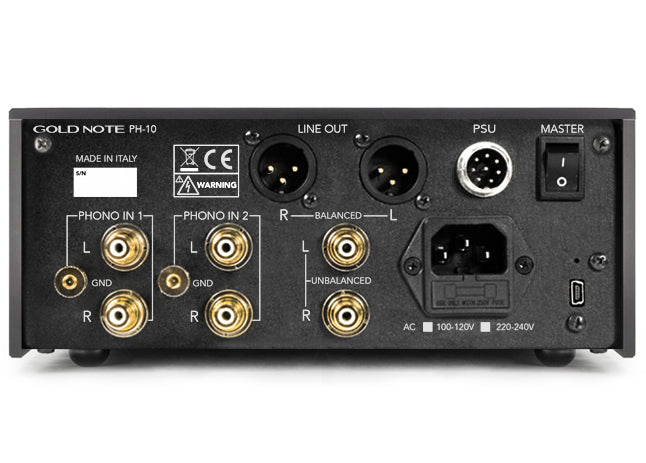

Line output level (fixed): stereo RCA @ 2Volt and balanced XLR @ 4Volt
Audio Inputs

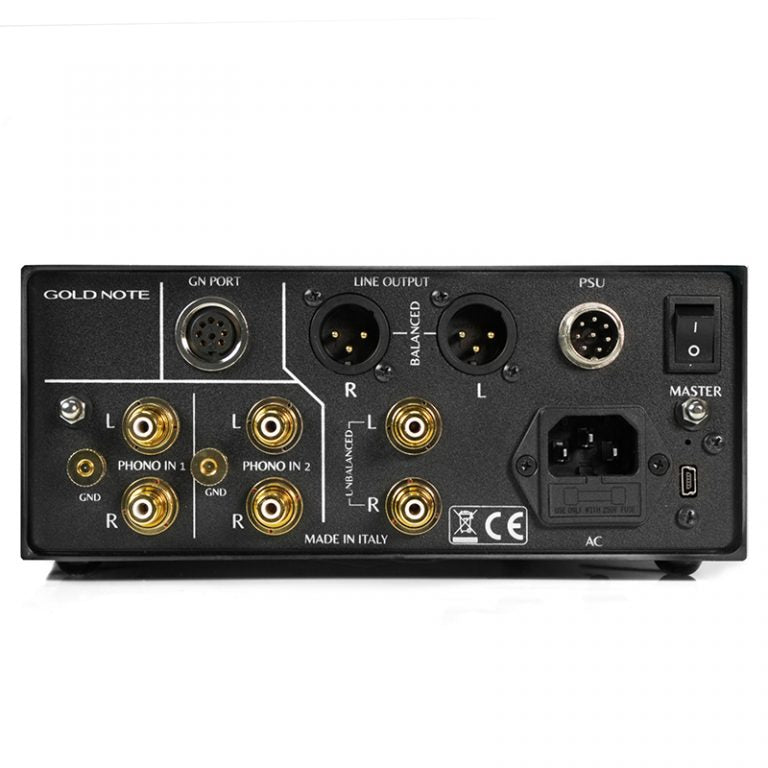

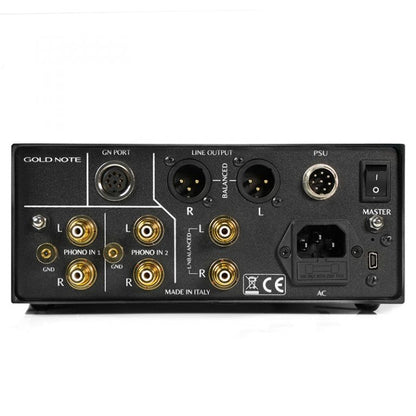

Analogue inputs: 2 separate independent stereo RCA
Input capacitance MM: 220pF
Input sensitivity: 0.1mV MC up to 7.0mV MM
Input impedance: 9 selectable options [10Ω 22Ω 47Ω 100Ω 220Ω 470Ω 1000Ω 22KΩ 47KΩ]
Gain: 65dB MC - 45dB MM with 4 options [-3dB 0dB +3dB +6dB]
