PA-10

The Gold Note PA-10 Is a new smaller stereo amplifier, with 75watt@8ohm, 150watt@4ohm and 300watt@2ohm per channel and 300watt@8ohm, 600watt@4ohm in mono, that could drive virtually any speaker worldwide.

We thought about what the costumers would need to extend their Gold Note system with the smaller boxes of the series 10. For example, if somebody already owns the DS-10 Chameleon DAC, he needs to connect a power amplifier and loudspeakers to be able to make a fantastic whole audio system. Looking at our product range, a fitting amplifier was the missing link. That's how the PA-10 was born. Made of high-quality audio grade components and technologies deriving from PA-1175 flagship model, this stereo power amp guarantees great audio performances at the entry-level price of High-End equipment. The PA-10 will also have our unique proprietary Damping Factor technology where you can choose the right power for the perfect matching with any type of loudspeaker on the market. PA-10 has been developed to offer great power considering its small size. The product is designed as the perfect companion of the DS-10 4in1 DAC completing a conveniently sized High-End System without renouncing to the power and Gold Note sound quality. The PA-10 is a fully balanced amplifier featuring a BTL design (Bridge-Tied-Load) which allows the unit to be easily bridged and work as a mono amplifier doubling its power rate from 75Watt per channel @ 8Ω to a considerable 600Watt @ 4Ω load. Like the flagship model PA-1175 MKII, PA-10 features a unique adjustable Damping Factor design allowing for an ideal matching with any kind of loudspeakers.The proprietary GN LINK technology allows putting the PA-10 into a Master-Slave-Mode with other sources like the DS-10 or a second PA-10.The 3.5mm plugs GN LINK IN & GN LINK OUT are used to synchronize the PA-10 amplifier with other units with the same feature allowing a simultaneous switching ON/OFF (Master-Slave- Mode). The GN Link-Function guarantees major user-friendliness since you will be switching ON/OFF the entire audio chain from one source only.

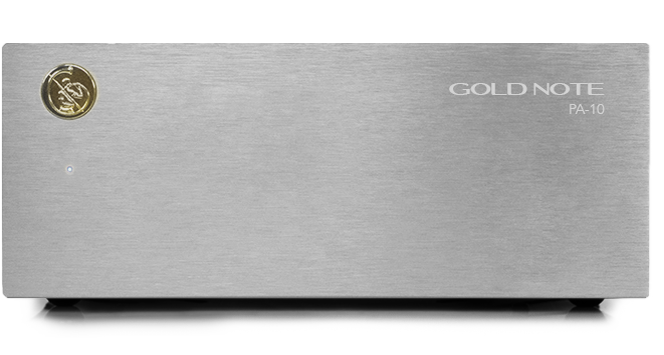

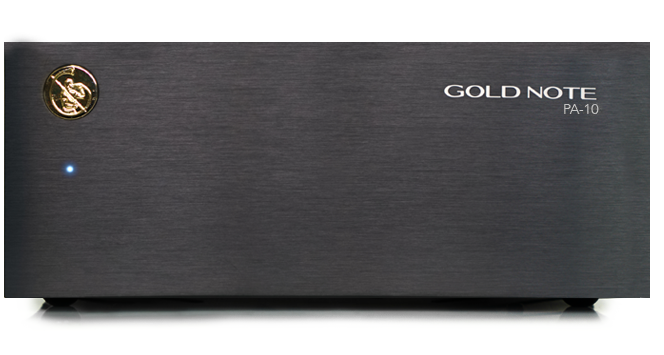

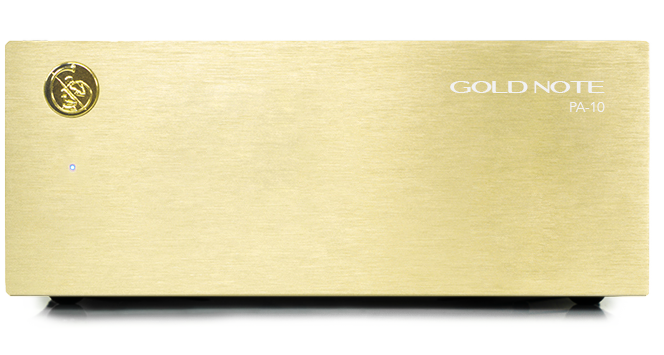

Available in three brushed aluminum finishes: Black, Gold, and Silver.

Available in:

Stereo 75 watt per channel @ 8ohm, $ 2,275.00

Mono at 300W per channel @ 8 ohm, $ 2,095.00

TECHNICAL SPECIFICATIONS:
Frequency response: 10Hz-30kHz at +/-1dB THD+N – Total Harmonic Distortion: 0,05% Noise floor: -80dBV
Damping factor: adjustable

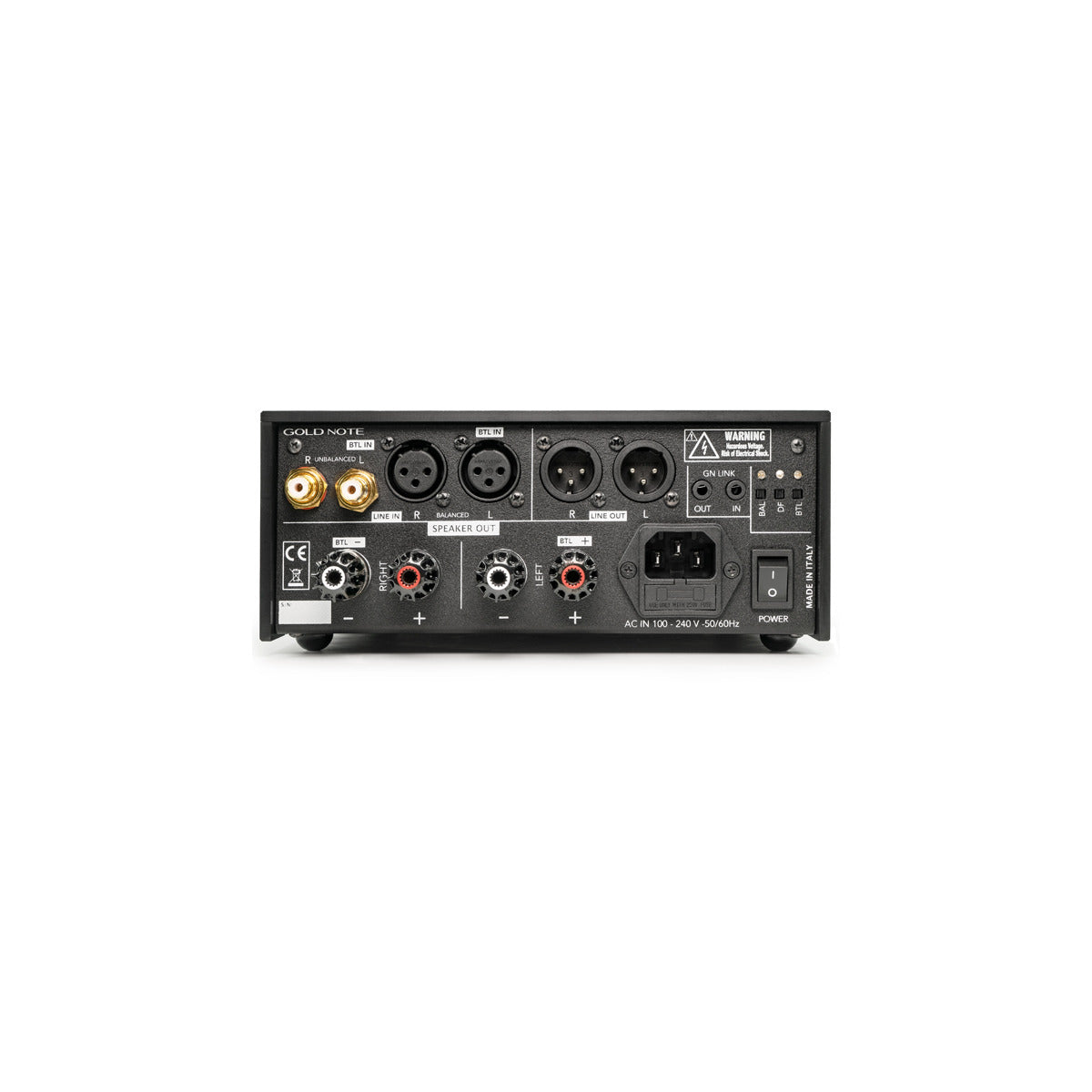

AUDIO INPUTS: Stereo RCA, stereo XLR balanced, Input sensitivity: 1,4V RMS on RCA and 1,4V RMS on XLR Input impedance: 13KΩ RCA/XLR
AUDIO OUTPUTS: Speaker terminals: Gold Plated Binding Posts
POWER: Mains supply: 100/240V, 50/60Hz, Power consumption: <1W in standby | <10W no signal 170W at a 1/4 of nominal power | 1400W
max.
DIMENSIONS & WEIGHT: Dimensions: 200mm W x 80mm H x 260mm D Total weight: 4kg
