P-1000 MKII

Designed for High-End audio systems, P-1000 MkII is an innovative Class-A line preamplifier powered by a new proprietary Six Gain Stage Ultra-Balanced design featuring relays and optical ALPS Encoder volume control and the best audio grade components provides incredibly low distortion and extended linear bandwidth for true superior musicality.

The P-1000 MkII belongs to a new era of electronics. Top performance is combined with top technology to offer the best possible musical experience, where tradition and innovation meet each other to create such unique preamplifier. Featuring a three independent linear transformer power supply and 8 stereo inputs, 4 fully balanced XLR, 4 RCA. The P-1000 MkII offers a large amount of functions: Mono/Stereo selection, Left/Right channel swap, Absolute Phase swap,Booster technology, fine Balance tuning and quadruple analogue outputs (two pairs of unbalanced stereo RCA and two pairs of balanced XLR). To perfectly reproduce even old recordings, the preamplifier can be set into Mono as well as Stereo mode. It also allows to swap the Left & Right channels to allow the reproduction of inverted recordings as well as the absolute phase swap from 0° to 180°. The P-1000 MkII Booster technology enhances the unit to get the best out of speakers that require power supplies providing greater energy in a very specific range of low frequencies (the Booster is completely by-passed when set to OFF). The P-1000 MkII is easy to control with its large color displays showing all functions: all the settings can be found on the display allowing quick and precise fine adjustments using the Single Knob Control,the rotary joggle conveniently placed on the front panel or elegant IR remote control.

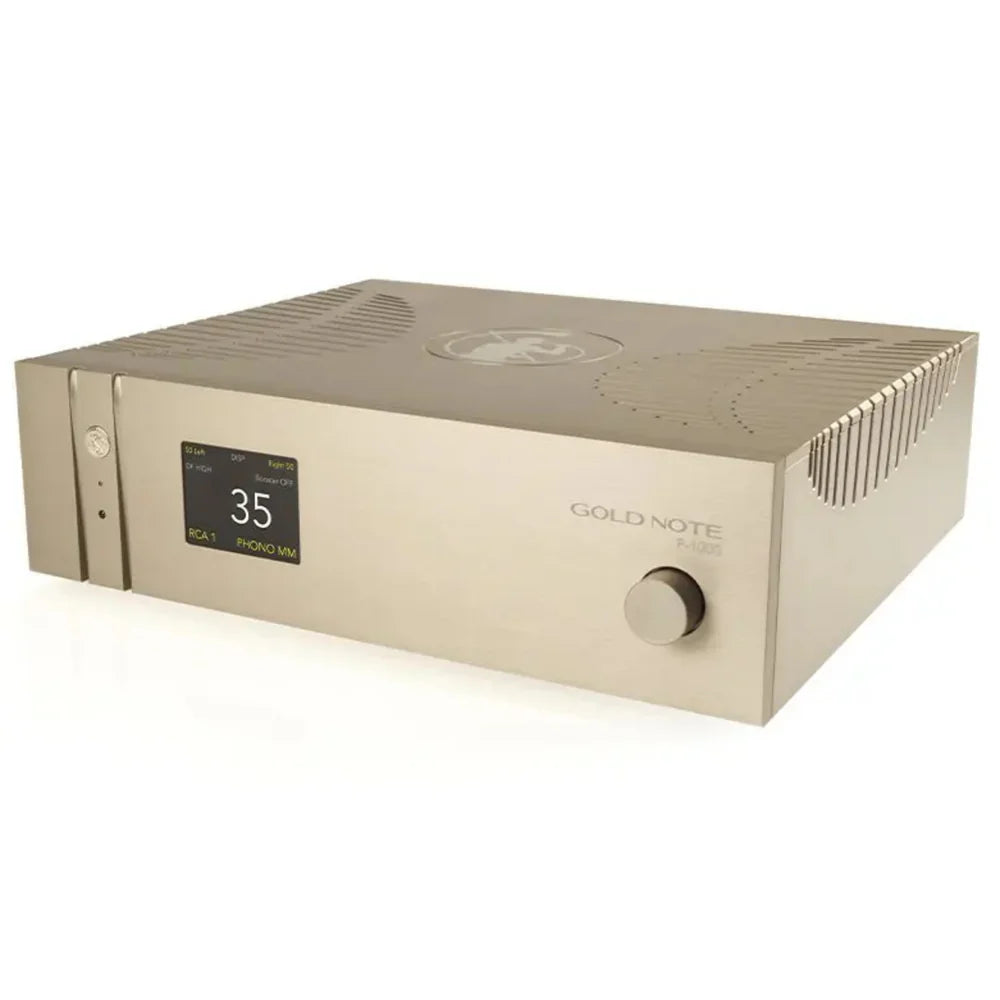

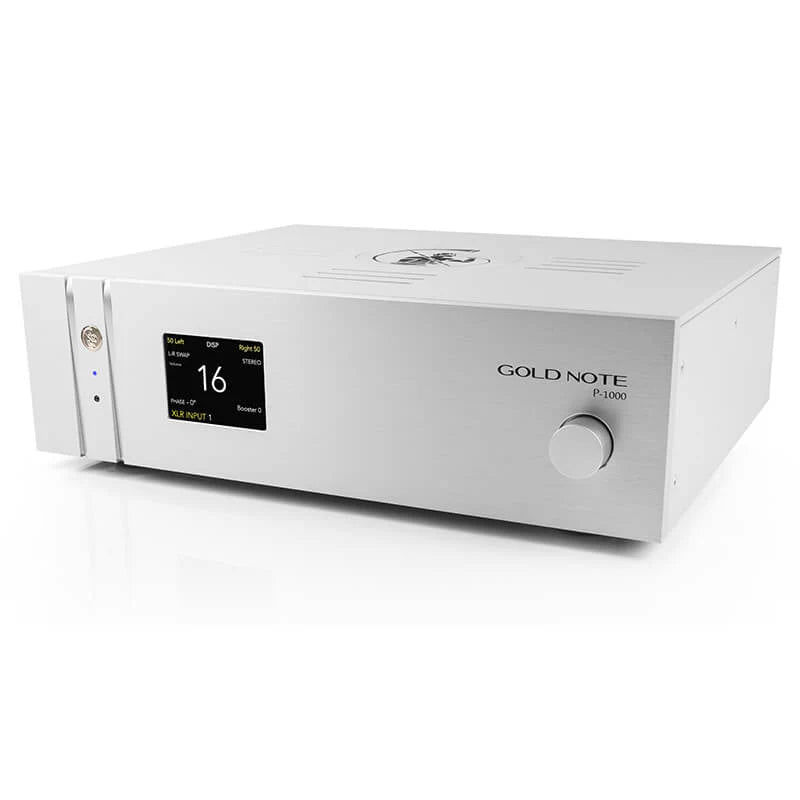

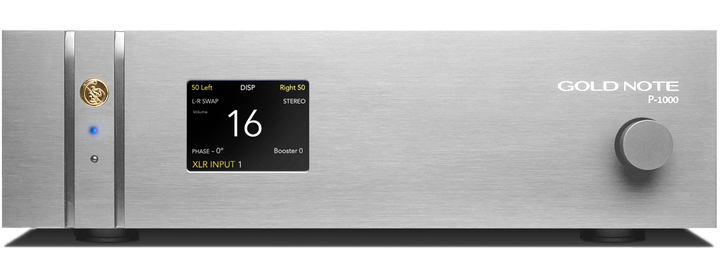

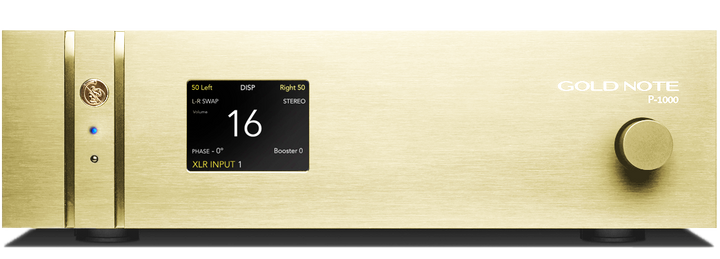

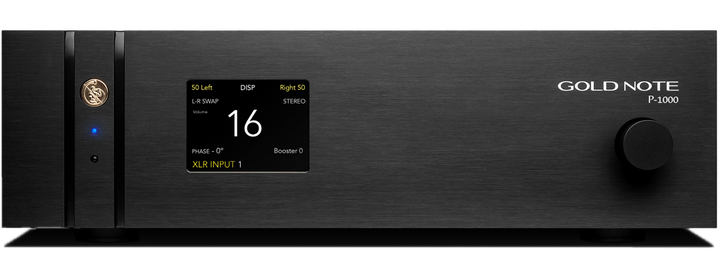

Available in three brushed aluminum finishes: Gold, Silver, and Black

Specifications:
Dimensions: 430mm L x 130mm H x 365mm D
Total weight: 15 Kg
Frequency response: 2Hz-200kHz @ +/-3dB
THD – Total Harmonic Distortion: <0.001% @ 1kHz
Gain: +20dB – 10V
Signal to Noise ratio: -120dB
Channel Separation: >118dB
Volume: 100 steps
Stereo/Mono: Yes
Absolute Phase: 0°/180°
Channel Left/Right Swap: Selectable
Booster: 3 adjustable levels (by-passable/off)
Remote Control: Included. IR receiver on front and back
Weight: 11 Kg. Boxed 16 Kg
Power
Main supply: 100/115/230V, 50/60Hz, depending on market destination and not convertible
Power supply: Ultra Linear 3 transformers (with a dedicated transformer for system functions)
Power consumption: 30W max.
1 Input for external inductive power supply PSU-1000 or PSU-1250

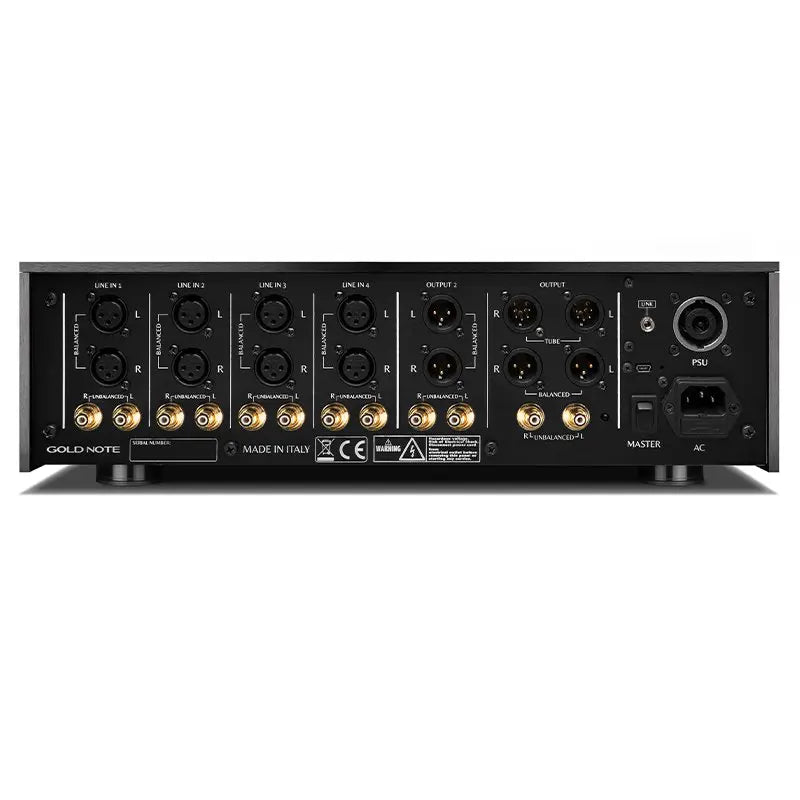

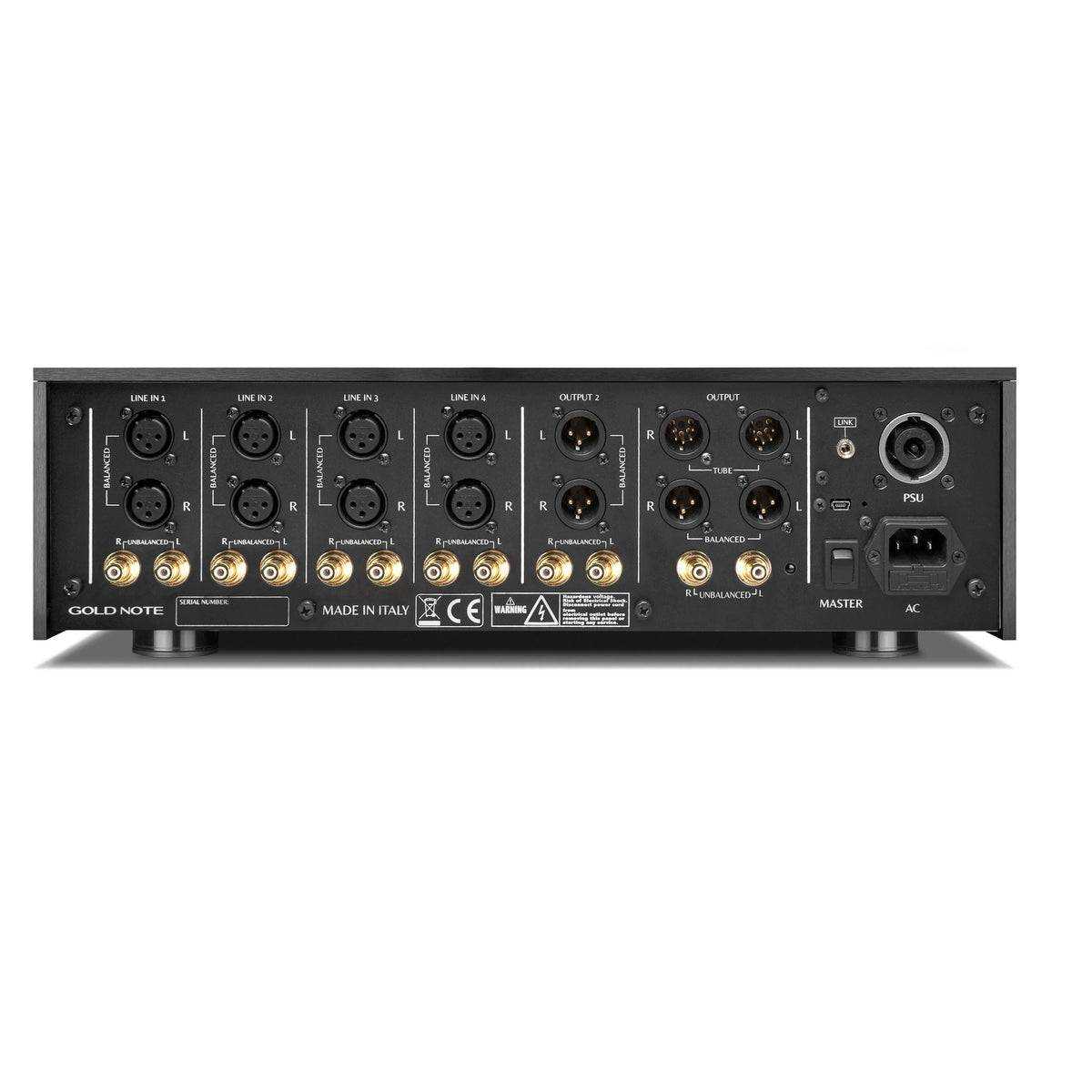

Audio Outputs
XLR balanced (2), RCA unbalanced (2). 1 Dedicated to Tube-1006 & Tube-1012
Output Level: 16Vrms on XLR & 8Vrms on RCA max. Output Impedance: <10Ω XLR & RCA
Audio Inputs
Analogue Input: 4 stereo XLR balanced & 4 Stereo RCA unbalanced
Input Level: Up to 10Vrms on RCA, Up to 10Vrms on XLR
Input Impedance: 100Ω XLR & RCA
