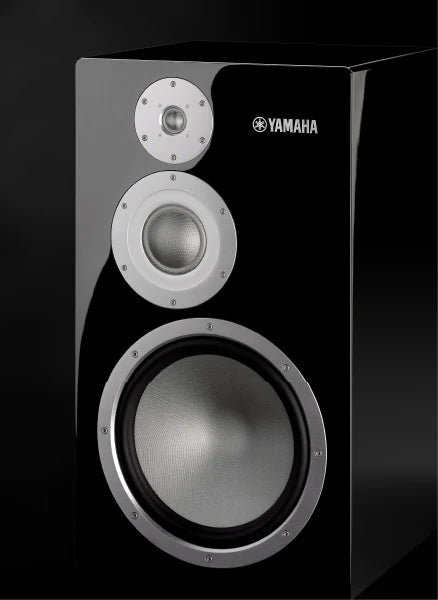

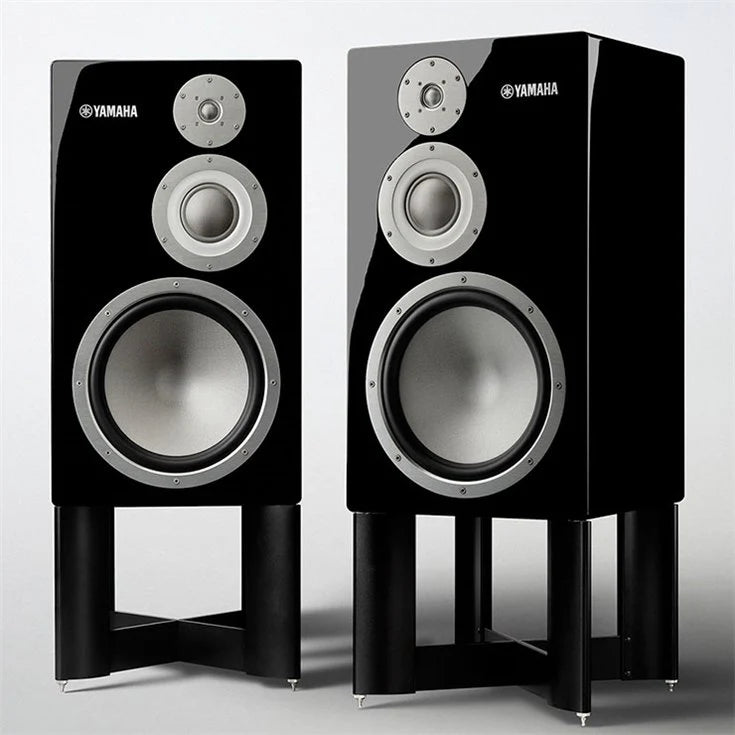

The NS-5000 is a 3-way large bookshelf speaker from Yamaha (Hamamatsu, Japan), available at Vinyl Sound in Toronto, Canada. Built as a spiritual successor to the legendary NS-1000M studio monitor, the NS-5000 represents the pinnacle of Yamaha's Natural Sound hi-fi speaker engineering, featuring the world's first complete driver array where tweeter, midrange, and woofer are all constructed from 100% ZYLON diaphragms, a Japanese-engineered synthetic fiber with acoustic velocity comparable to beryllium. Capable of handling 200 W nominal / 600 W peak input and reproducing frequencies from 26 Hz to 40 kHz (-10 dB), the NS-5000 is engineered for uncolored, high-resolution listening at the highest level. Browse the full Yamaha collection at Vinyl Sound.
Key Features
-
100% ZYLON Driver Array: All three drivers — tweeter, midrange, and woofer — use diaphragms made exclusively from ZYLON synthetic fiber, achieving unified tone color and acoustic velocity across the full frequency range.
-
8 cm Soft-Dome Midrange (JA-08B5): One of the world's largest dome midrange drivers, seamlessly molded from diaphragm to surround, with a crossover point of 750 Hz to extract maximum midrange resolution.
-
Patent-Pending R.S. Chambers: Resonance Suppression Chambers behind the tweeter and midrange use dual resonance tubes to cancel back-wave resonance without sound-absorbing materials.
-
Patent-Pending Acoustic Absorbers: J-shaped resonance tubes inside the enclosure eliminate standing waves at targeted frequencies, preserving dynamic energy and tonal continuity between woofer and midrange.
-
Hokkaido White Birch Enclosure: Laminated plywood cabinet sourced from eco-harvested Japanese white birch, assembled with mitered joint construction and FEM-optimized internal bracing.
-
Grand Piano Finish: All six cabinet surfaces finished using Yamaha's grand piano paint and polishing process, increasing rigidity and reducing micro-vibrations.
-
Premium Crossover Network: Double-sided PCB with 140-micron copper traces, Mundorf MCap SUPREME EVO capacitors, Mundorf MResist SUPREME attenuators, and a 1.6 kg woofer coil for minimal signal loss.
-
Square Copper Voice Coils: All three drivers use square-section copper wire voice coils for maximum electro-acoustic conversion efficiency and reduced transmission loss.
SPECIFICATIONS
-
Type: 3-way bass-reflex bookshelf speaker
-
Woofer: 12" (30 cm) cone
-
Midrange: 3.25" (8 cm) dome
-
Tweeter: 1.25" (3 cm) dome
-
Diaphragm material: ZYLON® for woofer, midrange, and tweeter
-
Frequency response: 26 Hz – 40 kHz (-10 dB), up to 100 kHz (-30 dB)
-
Sensitivity: 88 dB (2.83 V/1 m)
-
Nominal impedance: 6 Ω (3.5 Ω minimum)
-
Crossover frequencies: 750 Hz / 4.5 kHz
-
Nominal power handling: 200 W
-
Maximum power handling: 600 W
-
Cabinet: Bass-reflex with resonance suppression chambers
-
Dimensions (W × H × D): 395 × 690 × 381 mm (15.5 × 27.1 × 15.0 in)
-
Weight: 35 kg (77.2 lb) each
-
Finish: Piano black lacquer
-
Made in: Japan
