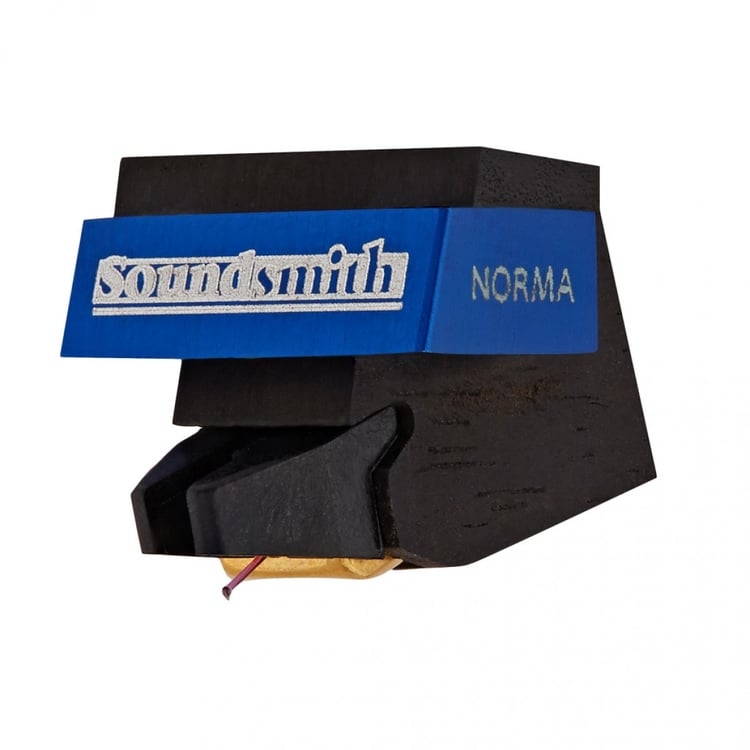

Soundsmith

Norma

  • Cartridge Type: Fixed Coil
  • Stylus Type: Contact Line
  • Output: Medium
  • Output Voltage: 1.1 mV
  • Available As Dual Coil Mono: Yes
  • Stylus: Contact Line Nude, 0.100mm SQ
  • Radius of curvature: OCL (Optimized Contour Contact Line)
  • Cantilever: Ruby
  • Recommended tracking force: 10mN / 1.0 gm (high), 13mN / 1.3 gm (medium)
  • Effective tip mass: 0.30 mg
  • Compliance: 28 μm/mN (high), 22 μm/mN (medium)
  • Frequency response: 20-20,000 Hz ±2.5 dB
  • Channel separation (stereo only): 1000 Hz >30 dB, 50-15,000 >20 dB
  • Channel difference: <1.0 dB (Stereo) <1.0 dB (Mono)
  • Output voltage (Norma): 1.1 mV
  • Cartridge weight: 6.8 grams
  • Loading (Norma): ≥ 1.5 kΩ
Regular price $2,599.95
- +
  • Cartridge Type: Fixed Coil
  • Stylus Type: Contact Line
  • Output: Medium
  • Output Voltage: 1.1 mV
  • Available As Dual Coil Mono: Yes
  • Stylus: Contact Line Nude, 0.100mm SQ
  • Radius of curvature: OCL (Optimized Contour Contact Line)
  • Cantilever: Ruby
  • Recommended tracking force: 10mN / 1.0 gm (high), 13mN / 1.3 gm (medium)
  • Effective tip mass: 0.30 mg
  • Compliance: 28 μm/mN (high), 22 μm/mN (medium)
  • Frequency response: 20-20,000 Hz ±2.5 dB
  • Channel separation (stereo only): 1000 Hz >30 dB, 50-15,000 >20 dB
  • Channel difference: <1.0 dB (Stereo) <1.0 dB (Mono)
  • Output voltage (Norma): 1.1 mV
  • Cartridge weight: 6.8 grams
  • Loading (Norma): ≥ 1.5 kΩ
