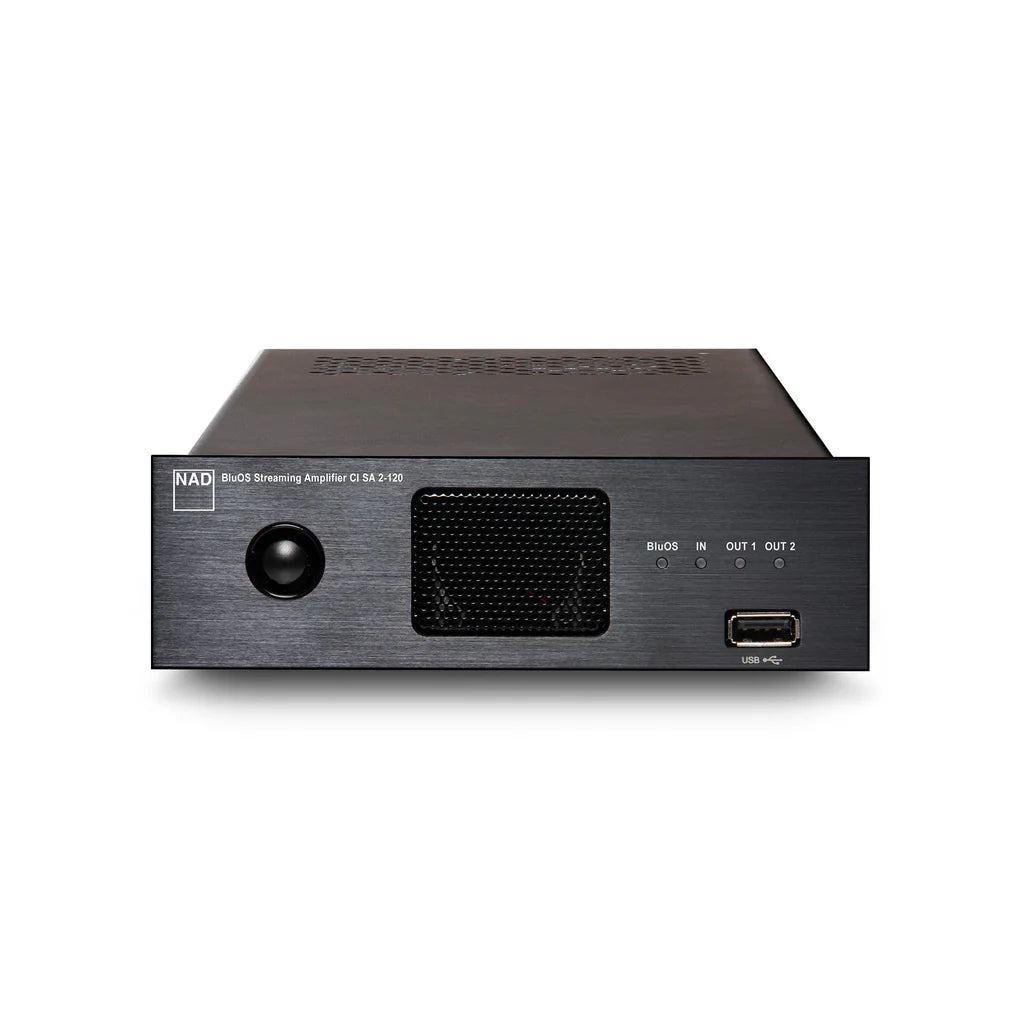

The NAD CI SA2-120 BluOS Streaming Amplifier is designed to deliver high-quality amplification and networked music streaming in a single, compact solutionfor custom installation systems. Combining 240 watts of NAD DirectDigital™ amplification with dual stereo outputs and the BluOS multi-room platform, it can be used in single or dual zone configurations. Purpose-built for professional environments, CI SA2-120 simplifies system design while maintaining the sound quality, reliability, and control expected from NAD. It is an ideal solution for distributed audio, retrofit projects, and zones where space and efficiency are critical.
KEY FEATURES
- 2 x 120 W or 4 x 60 W DirectDigital™ amplification
- Dirac Live Ready for room correction (future update)
- Two zones of BluOS multi-room streaming with access to 20+ services and internet radio
- Compact 1/3 width x 1U height with Chassis Link Flexible rack and surface placement options
- aptX HD two-way Bluetooth, AirPlay 2, Spotify Connect, Qobuz Connect and Tidal Connect
- Dynamic Power Management automatically optimises power distribution
- Thermostatic fan cooling with front-to-rear airflow for reliable stacking
- Engineered for reliable, long-term operation
SPECIFICATIONS
-
Power output: 2 × 120 W continuous (8 ohms) or 4 × 60 W continuous (8 ohms)
-
IHF dynamic power: 300 W (4 ohms), 200 W (8 ohms)
-
Amplifier type: DirectDigital™
-
Streaming platform: BluOS®
-
Signal-to-noise ratio (A-weighted): 102 dB
-
Total harmonic distortion (THD+N): 0.005%
-
Supported audio formats: MP3, AAC, WMA, WMA-L, OGG, OPUS
-
Hi-Res audio formats: FLAC, MQA, ALAC, WAV, AIFF, MPEG-4 SLS
-
Maximum sample rate: Up to 192 kHz
-
Bit depth: 16–24-bit
-
Processor: ARM Cortex-A53 quad-core, 1.8 GHz
-
Network connection: Gigabit Ethernet (RJ45)
-
Wi-Fi: Wi-Fi 5 (802.11ac), dual-band
-
Bluetooth: Bluetooth 5.2 with aptX HD (two-way)
-
HDMI input: HDMI eARC
-
Analog input: 3.5 mm
-
Digital input: Toslink optical
-
USB input: USB Type-A (external storage)
-

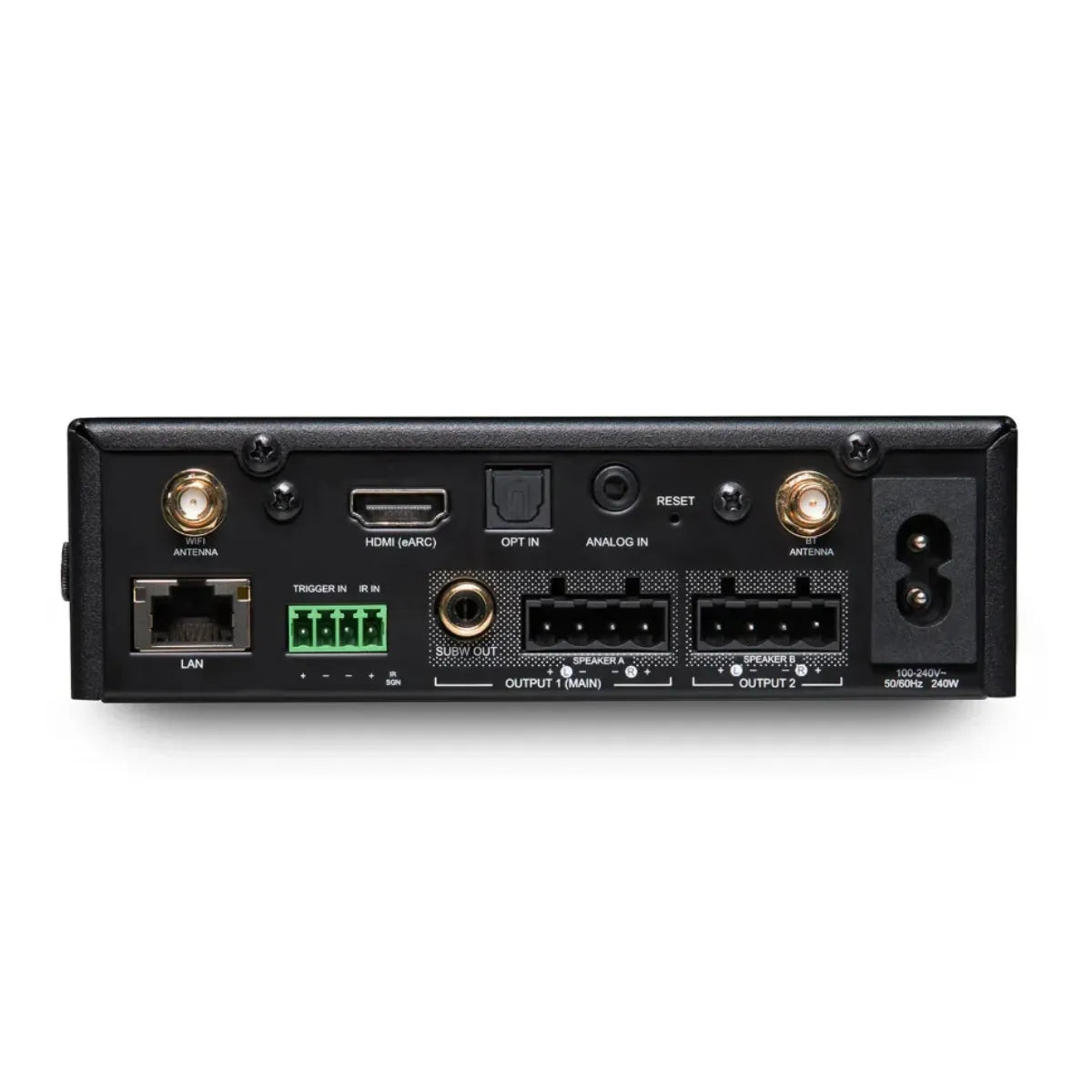

Speaker outputs: 2 × 4-pin Phoenix connectors
-
Main zone/sub zone capability: Yes (independent volume control)
-
Subwoofer output: 1 × RCA
-
AirPlay 2: Yes
-
Spotify Connect: Yes
-
TIDAL Connect: Yes
-
Dirac Live Ready: Yes (Zone 1 only)
-
Trigger input: 1 × configurable 12 V
-
Trigger output: None
-
IR input: 1 × 2-pin Phoenix connector
-
Power supply: 100–240 V AC, 50/60 Hz
-
Maximum power consumption: 240 W
-
Dimensions (W × H × D): 146.5 × 44 × 384 mm (5.77 × 1.73 × 15.11 in)
-
Weight: 2.52 kg (5.56 lb)
