NAD CI 8-150 DSP v2 Multi-Channel Network Amplifier

NAD CI 8-150 DSP v2 Multi-Channel Network Amplifier

$5,499.00 CAD
$5,499.00 CAD
Description

The NAD CI 8-150 DSP V2 Multi-Channel Amplifier is designed to deliver the most refined audio performance to the rack space. Powerful, controlled sound with precision required for the most demanding installated audio systems. With eight channels of high- performance amplification and onboard digital signal processing, it provides installers with the tools to optimise audio for each zone and loudspeaker. Built on NAD’s HybridDigital™ amplification platform, the CI 8-150 DSP V2 delivers clean, efficient power while maintaining stability during continuous operation.

KEY FEATURES

  • 8 channels of Hybrid Digital amplification with custom
    Hypex nCore output stages, for high end distributed audio and home theatre systems
  • 150 watts per channel Full Disclosure Power -  continuous into 8 ohms, all channels running.
  • Setup and configuration via intuitive webUI
  • Integrated DSP for system optimization
  • Bridgeable channel pairs for high-power configurations
  • Rack-mount chassis for professional installations Line-level & Digital inputs

  • Flexible power options via signal sense and 12v trigger

    SPECIFICATIONS

    • Model: NAD CI 8-150 DSP V2

    • Amplifier type: HybridDigital™ Class D with custom Hypex nCore output stages

    • Channels: 8

    • Power output (8 Ω): 150 W per channel (all channels driven)

    • Power output (4 Ω): 180 W per channel (all channels driven)

    • Bridged output (8 Ω): 280 W per bridged pair (4 bridged channels)

    • Total power: Up to 1,200 W continuous across 8 channels

    • Frequency response: 20 Hz–20 kHz (±0.5 dB)

    • Total harmonic distortion (THD): 0.02% (20 Hz–20 kHz)

    • Signal-to-noise ratio: 90 dB (A-weighted)

    • Peak output current: 26 A

    • Damping factor: 150

    • DSP features:

      • Parametric EQ

      • High-pass and low-pass crossovers

      • Peak and RMS limiters

      • Per-channel delay

      • Gain adjustment

      • Polarity control

      • Input/output routing and mixing

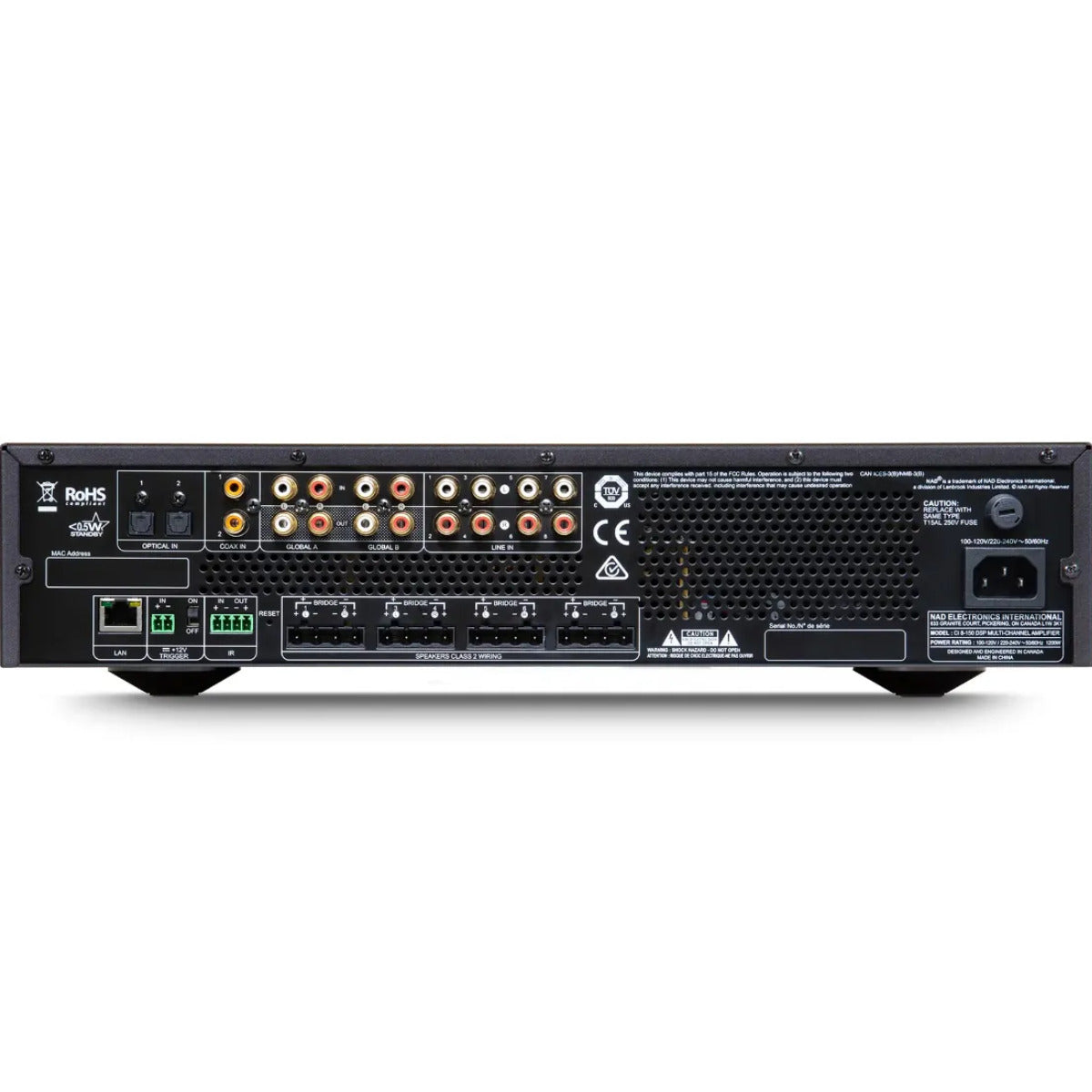

    • Inputs:

      • Analog stereo inputs

      • Optical (Toslink) digital input

      • Coaxial digital input

    • Outputs: Phoenix speaker connectors

    • Control:

      • Ethernet for web-based DSP configuration

      • 12 V trigger

      • Signal-sensing auto-on

    • Rack size: 2U

    • Dimensions (W × H × D): 483 × 90 × 435 mm (19.0 × 3.5 × 17.1 in)

    • Weight: 17.6 kg (38.8 lb)

    • Standby power consumption: 0.5 W

    • Typical applications:

      • Whole-home audio

      • Distributed audio

      • Commercial installations

      • Home theater

      • Architectural speakers

      • Bridged subwoofer channels
