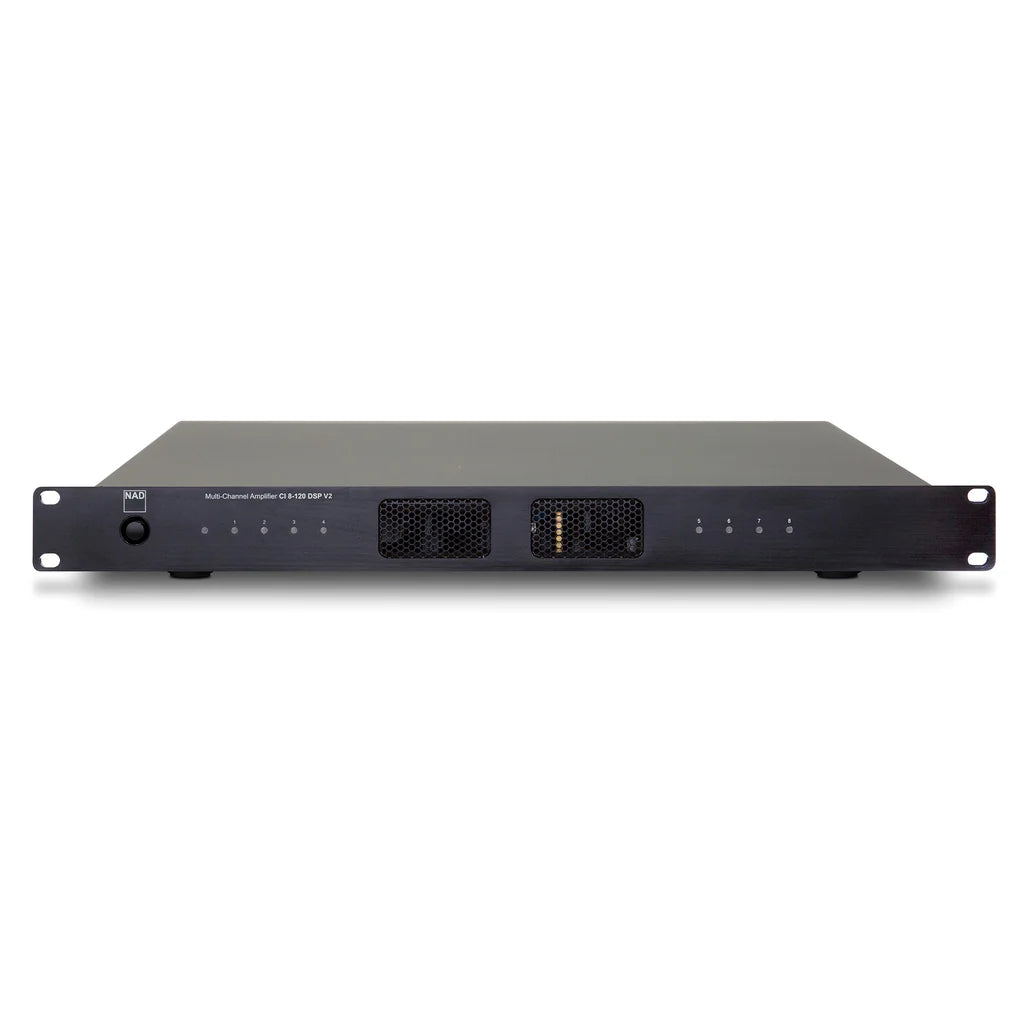

NAD CI 8-120 v2 8-Channel Multi-Zone Power Amplifier

• 8 channels of HybridDigital amplification with custom Hypex UcD output stages
• 120 watts per channel Full Disclosure Power, Continuous into 8 ohms, all channels running.
• Setup and configuration via intuitive webUI.
• Integrated DSP for system optimisation
• Compact 1U Rack-mount chassis
• Line-level inputs for flexible system integration Automation and trigger support for system control Engineered for reliable, long-term operation
• Bridgeable channel pairs for increased output where required

SPECIFICATIONS

• Model: NAD CI 8-120 DSP V2

• Amplifier type: HybridDigital™ Class D with custom Hypex UcD output stages

• Channels: 8

• Power output (8 Ω): 120 W per channel (all channels driven)

• Power output (4 Ω): 135 W per channel (all channels driven)

• Bridged output (8 Ω): 200 W per bridged pair (4 bridged channels)

• Dynamic power (8/4/2 Ω): 125 W / 200 W / 180 W per channel

• Frequency response: 20 Hz–20 kHz (±0.5 dB)

• Total harmonic distortion (THD): <0.05% (20 Hz–20 kHz)

• Signal-to-noise ratio: >88 dB (A-weighted)

• Peak output current: >20 A

• Damping factor: >110

• DSP features:

  • Parametric EQ

  • High-pass and low-pass crossovers

  • Gain adjustment

  • Delay

  • Input/output routing

  • Mono summing

  • Preset configuration

• Inputs:

  • 8 analog line inputs

  • 2 global stereo RCA inputs

• Outputs:

  • Phoenix speaker connectors

  • 2 global stereo RCA loop outputs

• Control:

  • Ethernet for web-based DSP configuration

  • 12 V trigger input

  • IR input/output

  • Signal-sensing auto-on

• Rack size: 1U

• Dimensions (W × H × D): 483 × 45 × 435 mm (19.0 × 1.8 × 17.1 in)

• Weight: 10 kg (22 lb)

• Standby power consumption: <0.5 W

• Network standby: 3 W

• Typical applications:

  • Whole-home audio

  • Multi-room distributed audio

  • Commercial AV

  • Home theater zone amplification

  • Architectural speaker systems
