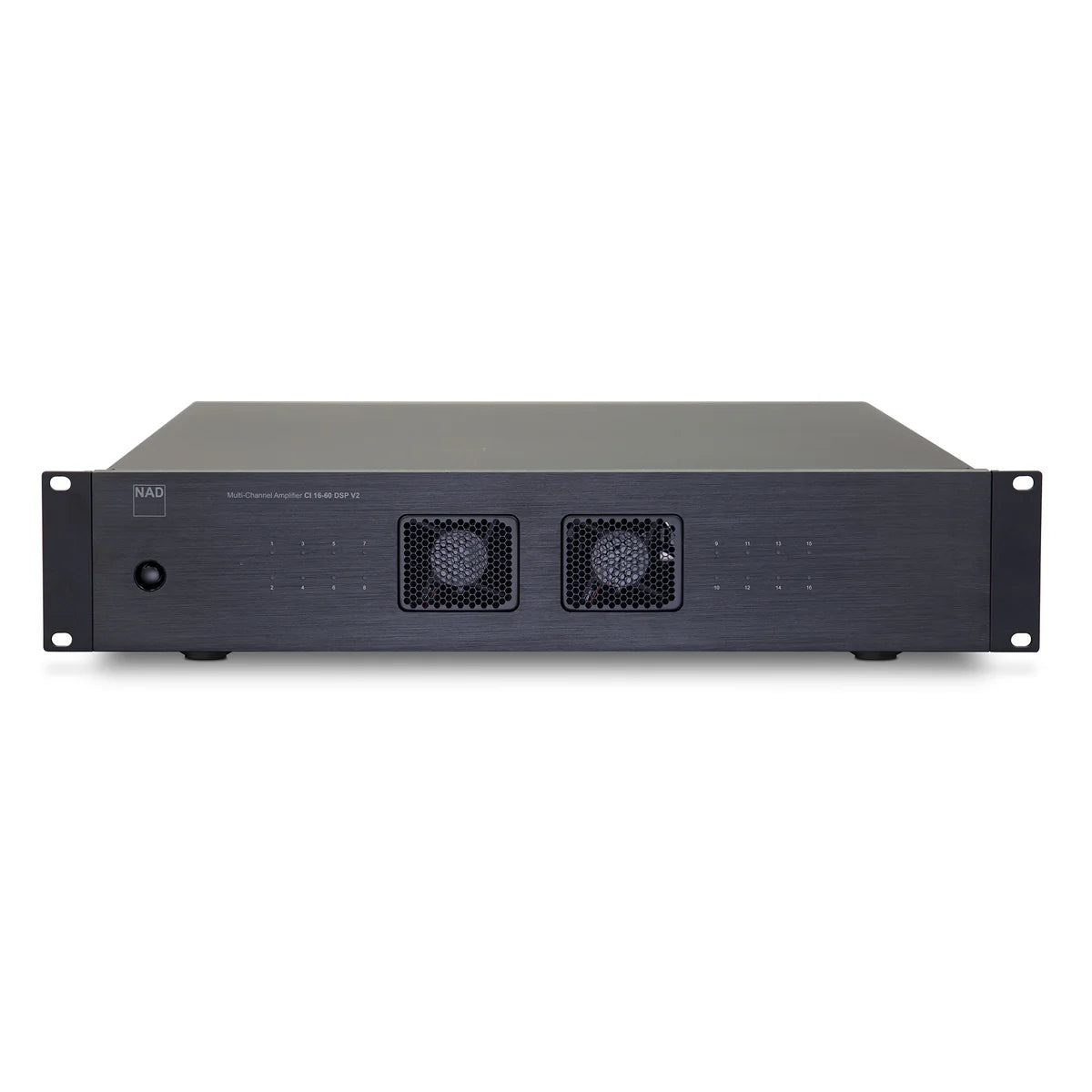

The NAD CI 16-60 V2 Multi-Channel Amplifier designed specifically for modern custom installation systems. Delivering sixteen channels of clean, efficient power, the CI 16-60 V2 is a perfect match for the NAD CI580v2 Four Zone Network Music Player, making a high quality but extremely cost effective combination for distributed audio and system, where reliability and consistency are critical. NAD’s HybridDigital™ amplification ensures stable performance with reduced heat and energy consumption, making it well suited for continuous operation. With simple set up via the web UI, flexible channel configuration, and dependable sound quality, the CI 16-60 V2 provides a robust amplification platform for scalable whole-home and commercial audio systems.
KEY FEATURES
- 16 channels of HybridDigital amplification for distributed audio systems
- 60 watts per channel into 8 ohms
- Bridgeable channel pairs for high-power output when required
- Rack-mount chassis for space-efficient installations
- Optimized for continuous, long-term operation
- Line-level inputs and loop outs forflexible system compatibility
- Automation-friendly trigger and control options
- Designed for scalability in large multi-zone systems
SPECIFICATIONS
-
Model: NAD CI 16-60 DSP V2
-
Amplifier type: HybridDigital™ Class D
-
Channels: 16
-
Power output (8 Ω): 60 W/ch
-
Power output (4 Ω): 65 W/ch
-
Bridged output (8 Ω): 140 W/ch
-
Frequency response: 20 Hz–20 kHz (±1 dB)
-
THD: 0.05%
-
Signal-to-noise ratio: 80 dB (A-weighted)
-
Peak output current: 15 A
-
DSP features:
-
Parametric EQ
-
High/low-pass crossovers
-
Gain, delay, limiters
-
Input/output routing
-

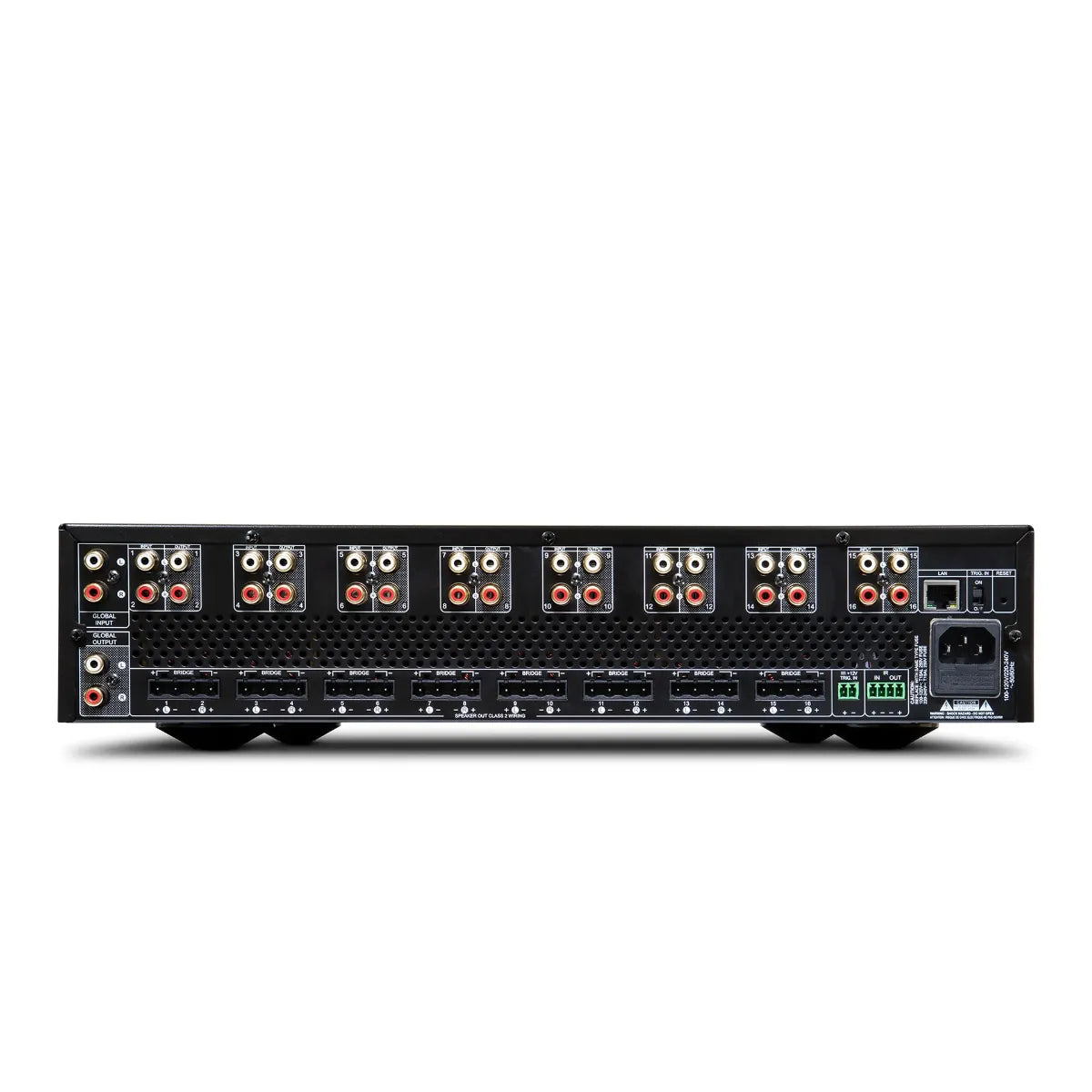

Inputs: 8 stereo RCA, 1 global stereo RCA
-
Outputs: Phoenix speaker connectors, RCA loop out
-
Control: Ethernet, 12 V trigger, IR, signal sensing
-
Rack size: 2U
-
Weight: 10.3 kg (22.7 lb)
