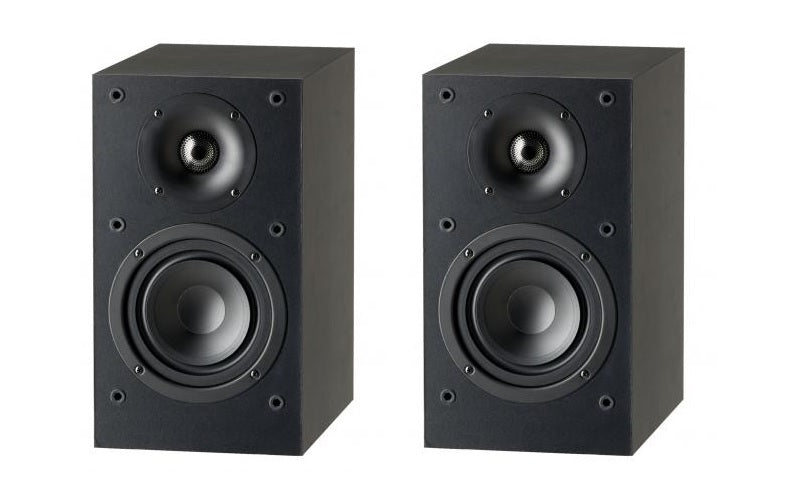

2-driver, 2-way bass reflex, bookshelf
Monitor SE loudspeakers benefit from Paradigm’s fundamental research into the science of sound. This research, conducted by Paradigm in conjunction with the Canadian National Research Council, has resulted in many of the innovative materials and patented audio technologies found throughout the Paradigm speaker.
Tweeter
X-PAL™ Pure-Aluminum Dome Tweeters with patented† Perforated Phase-Aligning (PPA™) Lens. This exclusive design acts as a refined phase plug, blocking a wide range of out-of-phase frequencies which increases and smooths output without coloring the sound.
Both visually stunning and functional, our signature PPA Lens technology improves performance while also protecting the tweeter from getting damaged.
Bass/Midrange
High-performance mineral-filled polypropylene cones with inverted dust caps are lightweight and rigid. Downroll surrounds give them a clean, low-profile look.
Enclosure
Beautiful Monitor SE speaker cabinets, with their unmistakably European fit and finish, complement today’s most stylish décor. Each model is available in high-gloss white or matte black finishes.
SPECIFICATIONS
-
Design: 2-driver, 2-way bass reflex bookshelf speaker
-
Crossover: 2nd-order electro-acoustic at 2.3 kHz
-
Frequency Response (On-Axis): ±3 dB from 61 Hz – 21 kHz
-
Frequency Response (30° Off-Axis): ±3 dB from 55 Hz – 17 kHz
-
High Frequency Driver: 1" (25 mm) X-PAL™ dome, ferro-fluid damped/cooled with Perforated Phase-Aligning (PPA™) lens
-
Mid/Bass Driver: 5.5" (140 mm) mineral-filled polypropylene cone with inverted dust cap and downroll surround
-
Sensitivity: 89 dB (room), 86 dB (anechoic)
-
Low Frequency Extension (DIN): 45 Hz
-
Suitable Amplifier Power: 15–100 watts
-
Maximum Input Power: 50 watts
-
Impedance: Compatible with 8 ohms
-
Dimensions (H × W × D): 32 × 18 × 27 cm (12.75 × 7.125 × 11 in)
-
Weight: 5.4 kg (12 lb)
-

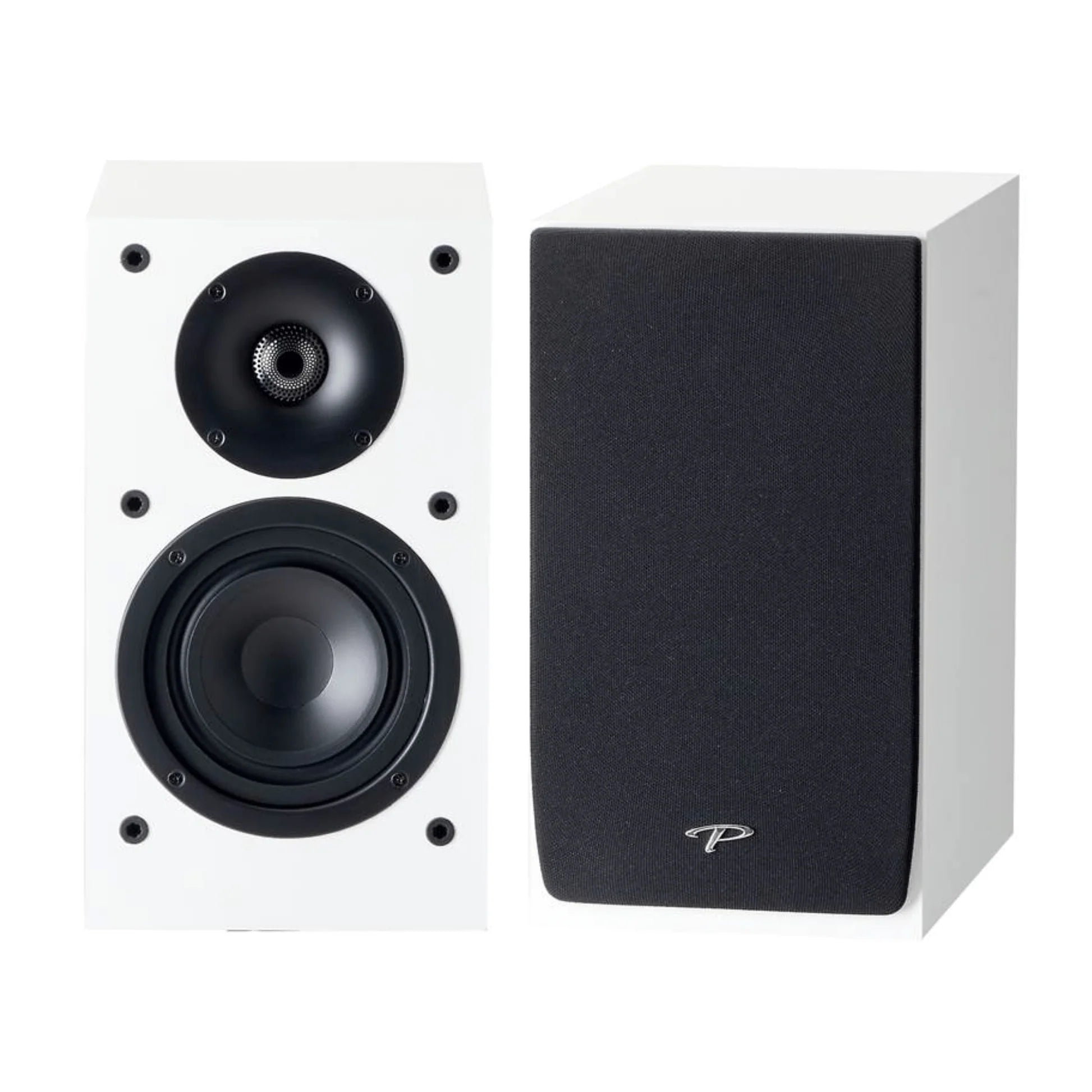

Available Finishes: Matte Black, Gloss White
