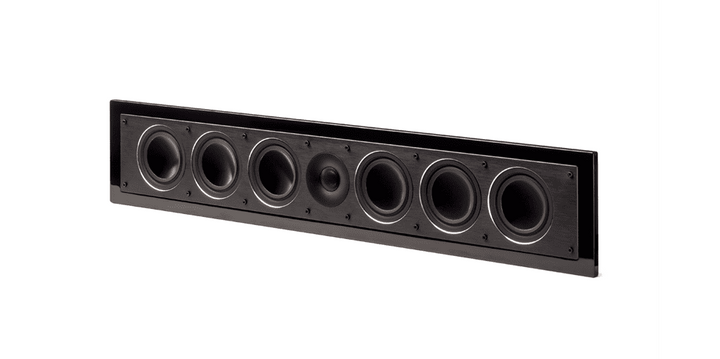

Ultra thin (1-3/4 in / 4.4 cm) including wall mount 3-driver, 2-way bass-reflex with four passive radiators in ultra-thin on-wall with molded high-gloss polymer enclosure.
High-Frequency Drive Units
- S-PAL Satin-Anodized Pure-Aluminum Dome
- Rigid Mineral-Filled ABS Chassis
- Protective, Perforated Aluminum Mesh Screen Guard with Wide Dispersion Architecture and Integrated Phase Ring
- High-Power Apical Former
- Advanced Motor Structure with Extruded Aluminum Heat sink
Bass/Midrange Drive Units
- High-Poformance Anodized Unibody Bass/midrange Cone
- Performance-Optimized Nitrite-Butodiene rubber Surround
- Nomex Spider
- High-power Apical Former
- High-Performance Motor Assembly includes 1-1/2” High-Temperature Aluminum Voice coil and Powerful Neodymium Magnet
- Steel Heatfin Basket
Passive Radiators
- High-Performance Anodized Unibody Bass/Midrange Cone
- Performance-optimized Nitrite Butadiene Rubber Surround
- Precision-Tuned Resonances System
SPECIFICATIONS
-
Design: 7-driver, 2-way bass-reflex; includes powered drivers and passive radiators
-
Crossover: 2nd-order electro-acoustic at 2.6 kHz
-
Frequency response on-axis: ±3 dB from 120 Hz – 21 kHz
-
Frequency response 30° off-axis: ±3 dB from 120 Hz – 15 kHz
-
High frequency driver: One 25-mm (1 in) S-PAL™ dome, ferro-fluid damped/cooled
-
Midrange frequency driver: Two 114-mm (4-1/2 in) anodized unibody cones, 37-mm (1-1/2 in) high-temperature aluminum voice coils, Nomex spider, Nitrile-Butadiene rubber surround, neodymium magnet, basket integrated motor heat dissipation system, tempered steel heatfin basket
-
Passive radiators: Four 114-mm (4-1/2 in) anodized unibody cones, Nitrile-Butadiene rubber surround, precision-tuned resonance system
-
Sensitivity room / anechoic: 92 dB / 89 dB
-
Low frequency extension: 60 Hz (DIN)
-
Suitable amplifier power range: 15 – 130 watts
-
Maximum input power: 70 watts
-
Impedance: Compatible with 8 ohms
-
Dimensions H×W×D: 34-1/8" × 6-3/8" × 1-5/8" (86.7 cm × 16.2 cm × 4.1 cm)
-
Weight: 9 lbs. (4.1 kg)
-
Finishes: Black gloss with brushed aluminum accents
