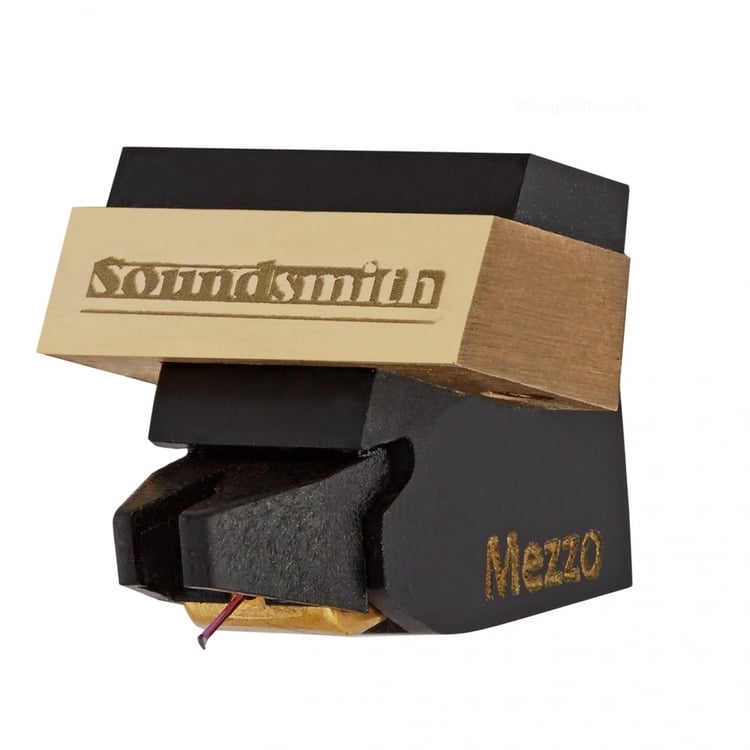

Soundsmith

Mezzo

  • Cartridge Type: Fixed Coil
  • Stylus Type: O.C. Contact Line
  • Output: Medium
  • Output Voltage: 1.1 mV
  • Available As Dual Coil Mono: Yes
  • Stylus: Contact Line Nude, 0.100mm SQ
  • Radius of curvature: OCL (Optimized Contour Contact Line) SELECTED
  • Cantilever: Ruby
  • Recommended tracking force: 1.8 to 2.2 grams
  • Effective tip mass: 0.30 mg
  • Compliance: 10 μm/mN (low compliance)
  • Frequency response: 20-20,000 Hz ± 1.0 dB
  • Channel Separation (stereo only): 1000 Hz >34 dB, 50-15,000 >25 dB
  • Channel difference: <0.5 dB (Stereo) <1.0 dB (Mono)
  • Output voltage (Mezzo): 1.1 mV
  • Cartridge weight: 10.25 grams
  • Loading (Mezzo): ≥ 1.5 kΩ
Regular price $6,499.95
- +
  • Cartridge Type: Fixed Coil
  • Stylus Type: O.C. Contact Line
  • Output: Medium
  • Output Voltage: 1.1 mV
  • Available As Dual Coil Mono: Yes
  • Stylus: Contact Line Nude, 0.100mm SQ
  • Radius of curvature: OCL (Optimized Contour Contact Line) SELECTED
  • Cantilever: Ruby
  • Recommended tracking force: 1.8 to 2.2 grams
  • Effective tip mass: 0.30 mg
  • Compliance: 10 μm/mN (low compliance)
  • Frequency response: 20-20,000 Hz ± 1.0 dB
  • Channel Separation (stereo only): 1000 Hz >34 dB, 50-15,000 >25 dB
  • Channel difference: <0.5 dB (Stereo) <1.0 dB (Mono)
  • Output voltage (Mezzo): 1.1 mV
  • Cartridge weight: 10.25 grams
  • Loading (Mezzo): ≥ 1.5 kΩ
