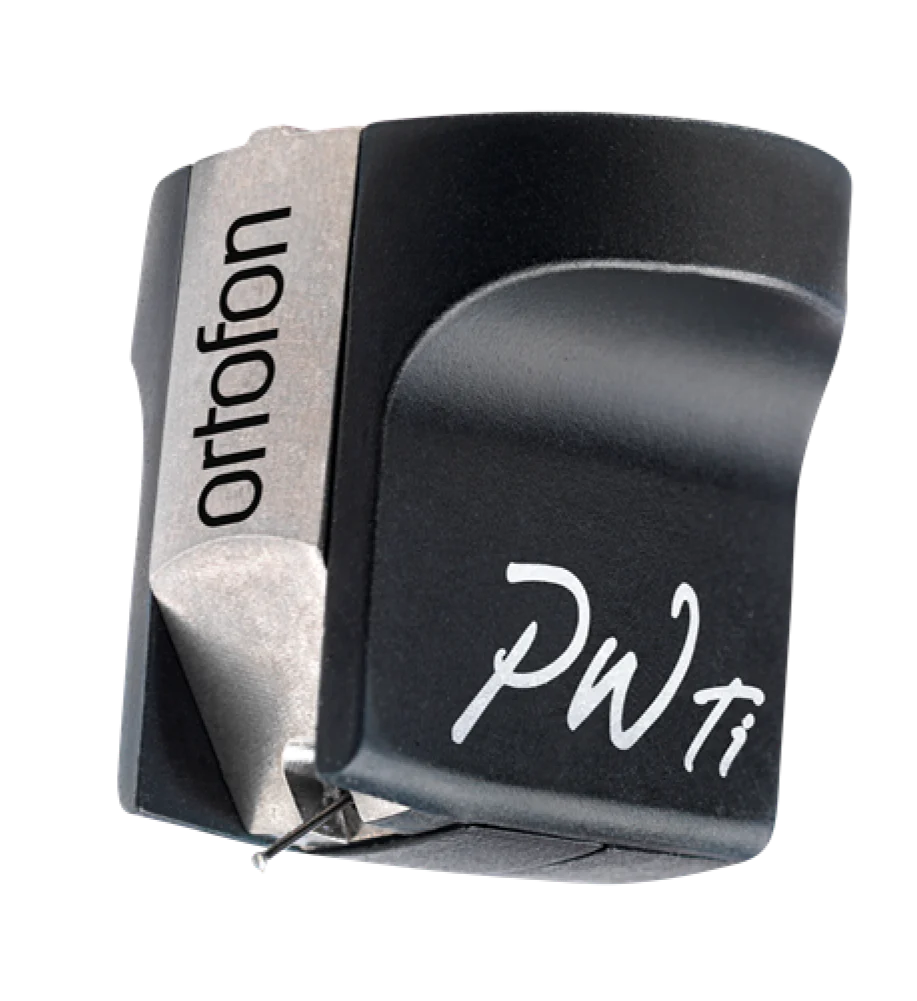

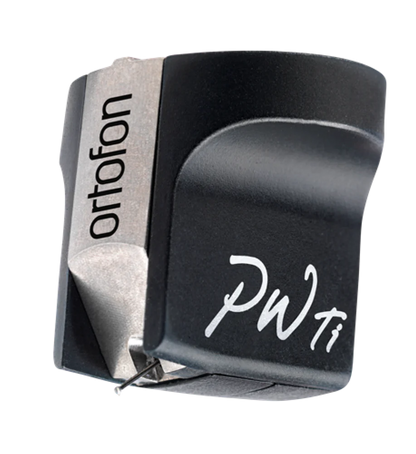

Ortofon

MC Windfield

Moving coil cartridge

Regular price $4,299.00
- +

Moving coil cartridge

"...until the Windfeld, I can recall hearing none that produced such perfect symmetry of tonality and texture at both ends of the audioband - withoutinducing boredom, or a sensation of wanting more of something...
...The Ortofon Windfeld might be the most tonally neutral cartridge I've ever auditioned...
 ...Tonally and, especially texturally, I don't think you'll find a cartridge that's more evenhanded and honest than the Ortofon Windfeld...
...It's easy to recommend, regardless of your musical taste or associated components..."
Stereophile, May 2008, Reviewed by Michael Fremer

Product Specification
Output voltage at 1000 Hz, 5cm/sec - 0,3 mV
Channel balance at 1 kHz - < 0,2 dB
Channel separation at 1 kHz - > 28 dB
Channel separation at 15 kHz - > 22 dB
Frequency range at - 3dB - 10-80.000 Hz
Frequency response FIM distortion at recommended - 20-20.000 Hz + / - 1 dB
Tracking ability at 315Hz at recommended tracking force  - 100 µm
Compliance, dynamic, lateralc - 16 µm/mN
Stylus type  - Nude Ortofon Replicant 100, special polished
Stylus tip radius -  r/R 5/100 µm
Tracking force range - 2,3-2,8 g (23-28 mN)
Tracking force, recommended - 2,6 g (26 mN)
Tracking angle - 23°
Internal impedance, DC resistance - 4 Ohm
Recommended load impedance - > 10 Ohm
Cartridge body material - Stainless steel/special alloy
Cartridge colour - Black/Black
Cartridge weight - 13 gram
