Ortofon

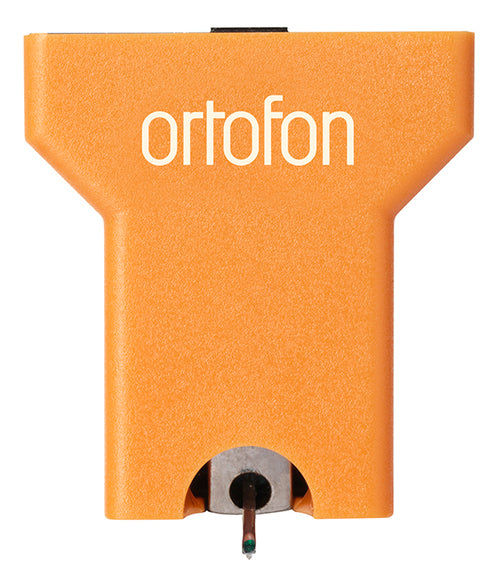

MC Quintet Bronze

Technical data

Regular price $849.00
- +

Technical data

  • Output voltage at 1000 Hz, 5cm/sec. 0.3 mV
  • Channel balance at 1 kHz< 1.2 dB
  • Channel separation at 1 kHz> 23 dB
  • Channel separation at 15 kHz> 15 dB
  • Frequency range at - 3dB 20-25.000 Hz
  • Frequency response 20-20.000 Hz+/-1.5 dB
  • Tracking ability at 315Hz at recommended tracking force 80 µm
  • Compliance, dynamic, lateral 15 µm/mN
  • Stylus type Nude Fine Line
  • Stylus tip radius r/R 8/40 µm
  • Tracking force range 2.1-2.5 g (21-25 mN)
  • Tracking force, recommended 2.3 g (23 mN)
  • Tracking angle 20°
  • Internal impedance, DC resistance 5 Ohm
  • Recommended load impedance> 20 Ohm
  • Cartridge body material ABS/Aluminium
  • Coil wire material Pure 4-nines copper
  • Cartridge colour Bronze
  • Cartridge weight 9 gram
