Ortofon

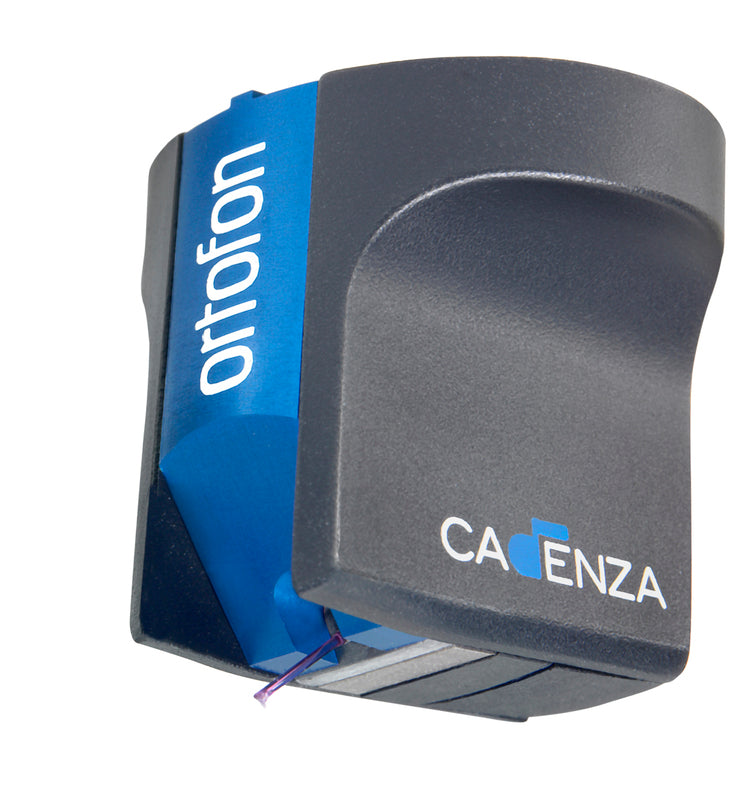

MC Cadenza Blue

Moving coil cartridge

Regular price $2,099.00
- +

Moving coil cartridge

Clear, open and airy , are the main traits of the Cadenza blue.  Exceptionally detailed with a subtlety that is rarely found from cartridges in this price category. An exceptional design.

  • Output voltage at 1 kHz 5 cm/sec - 0,5 mV
  • Channel balance - < 1,2 dB
  • Channel separation at 1 kHz - > 23 dB
  • Channel separation at 15 kHz - > 15 dB
  • Frequency range at -3 dB - 20 Hz - 50 kHz
  • Frequency response 20 Hz - 20 kHz - +2/-1
  • Tracking ability at 315 Hz at recommended tracking force *) - 80 μm
  • Compliance, dynamic, lateral - 12 μm/mN
  • Stylus type - Nude FG 70 on Ruby cantilever
  • Stylus tip radius - r/R 6/70
  • Tracking force range - 2,2-2,7 g (22-27 mN)
  • Tracking force recommended - 2,5 g (25 mN)
  • Tracking angle - 20º
  • Internal impedance, DC resistance - 5 Ohm
  • Recommended load impedance - 50-200 Ohm
  • Cartridge body material - Stainless steel Aluminium
  • Cartridge colour - Blue/Black
  • Cartridge weight - 10,7 g
