Ortofon

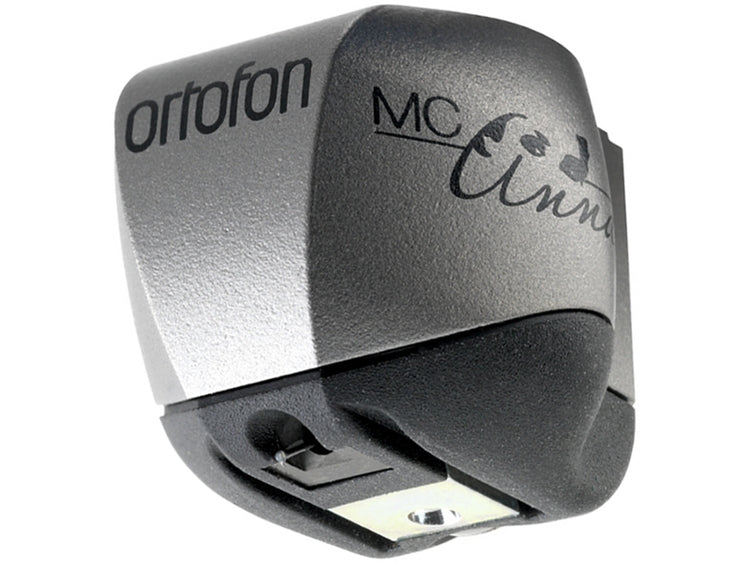

MC Anna

Low output moving coil phono cartridge

Regular price $8,999.00
- +

Low output moving coil phono cartridge

“Ortofon’s Anna is a gorgeously natural-sounding moving-coil cartridge offering tremendous subtlety and a rich, vivid tonality.
It’s detailed and immediate, silky-smooth and refined, crisp and transparent…
... if you desire this level of sonic performance, there are no short cuts to perfection”
Hi-Fi News, October 2012, Reviewed by James Huges

Product specifications

  • Output voltage at 1000 Hz, 5cm/sec - 0,2 mV
  • Channel balance at 1 kHz - 0,5 dB
  • Channel separation at 1 kHz - 25 dB
  • Channel separation at 15 kHz - 22 dB
  • Frequency response - 20 Hz-20.000 Hz +/- 1.5 dB
  • Tracking ability at 315Hz at recommended tracking force - 80 µm
  • Compliance, dynamic, lateral - 9 µm/mN
  • Stylus type - Special polished Nude Ortofon Replicant 100 on Boron Cantilever
  • Stylus tip radius - r/R 5/100 µm
  • Tracking force, recommended - 2,6 g (26 mN)
  • Tracking angle - 23°
  • Internal impedance, DC resistance - 6 Ohm
  • Recommended load impedance - > 10 Ohm
  • Cartridge body material - SLM Titanium
  • Cartridge colour - Black/Silver
  • Cartridge weight - 16 gram
