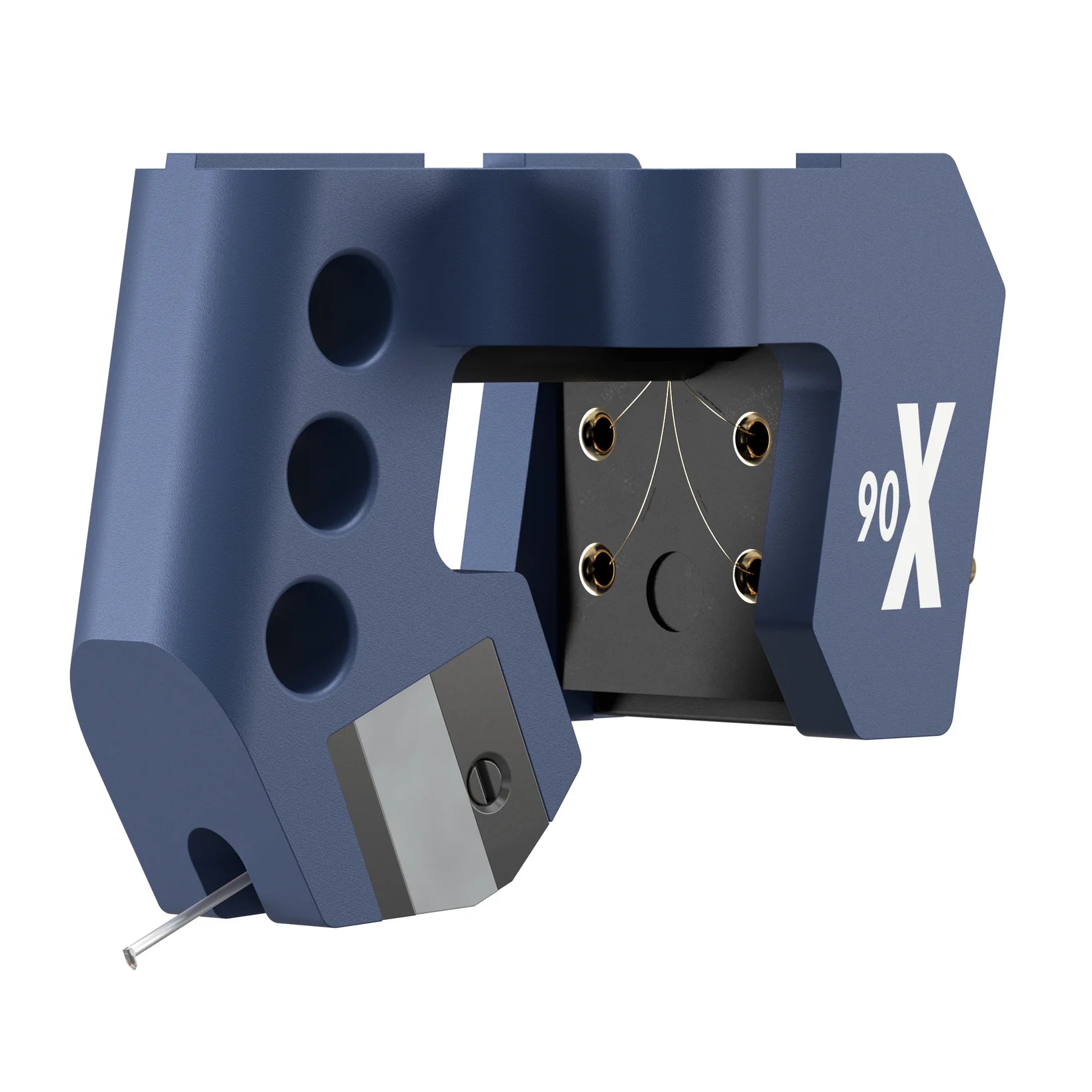

Ortofon MC 90X Cartridge

Name: Ortofon MC 90X Cartridge
Brand: Ortofon
Price: 7974.0 CAD
Availability: InStock

$7,974.00 CAD

Product variants

Description

The MC 90X is a reimagining of a classic, combining precision engineering with advancements in material science and magnetism.

Building on the groundbreaking technology of the MC A90, the MC 90X features a stainless-steel structure crafted using Selective Laser Melting (SLM) technology, along with the Field Stabilizing Element, Wide Range Damping, Ortofon Replicant 100 Diamond stylus, and newly developed proprietary Ortofon rubber dampers.

Specifications

Output voltage 0.25 mV
Cantilever material Boron
Stylus type Ortofon Replicant 100
Stylus tip radius r/R 5/100 μm
Coil wire Aucurum
Channel balance at 1 kHz < 0.2 dB
Channel separation at 1 kHz > 28 dB
Frequency response 20 Hz - 20 kHz +/- 1 dB
Dynamic lateral compliance 11 μm/mN
Recommended load resistance > 10 Ω
Recommended tracking force 2.3 g
Tracking angle 23°
Internal impedance, DC resistance 4 Ohm
Cartridge body material Stainless steel
Cartridge weight 9.5 g
Cartridge colour Blue
