With more than 130 years of experience, Yamaha has grown to become the world's leading sound company. The M-5000 embodies this spirit with time-honoured craftsmanship and market-leading innovation and serves as the epitome of high-fidelity audio reproduction.
- 200 W + 200 W (4 ohm, 20 Hz-20 kHz, 0.07% THD, 2-ch driven)
- 100 W + 100 W (8 ohm, 20 Hz-20 kHz, 0.07% THD, 2-ch driven)
- Meticulously designed, balanced signal transmission
- Floating and balanced power amplifier layout for improved drivability
- Perfectly symmetrical design for isolating left and right channels
- Low impedance design with shortened signal and power supply paths
- Improved construction delivers state-of-the-art rigidity
- Massive toroidal core power transformer
SPECIFICATIONS
-
Type: Stereo power amplifier
-

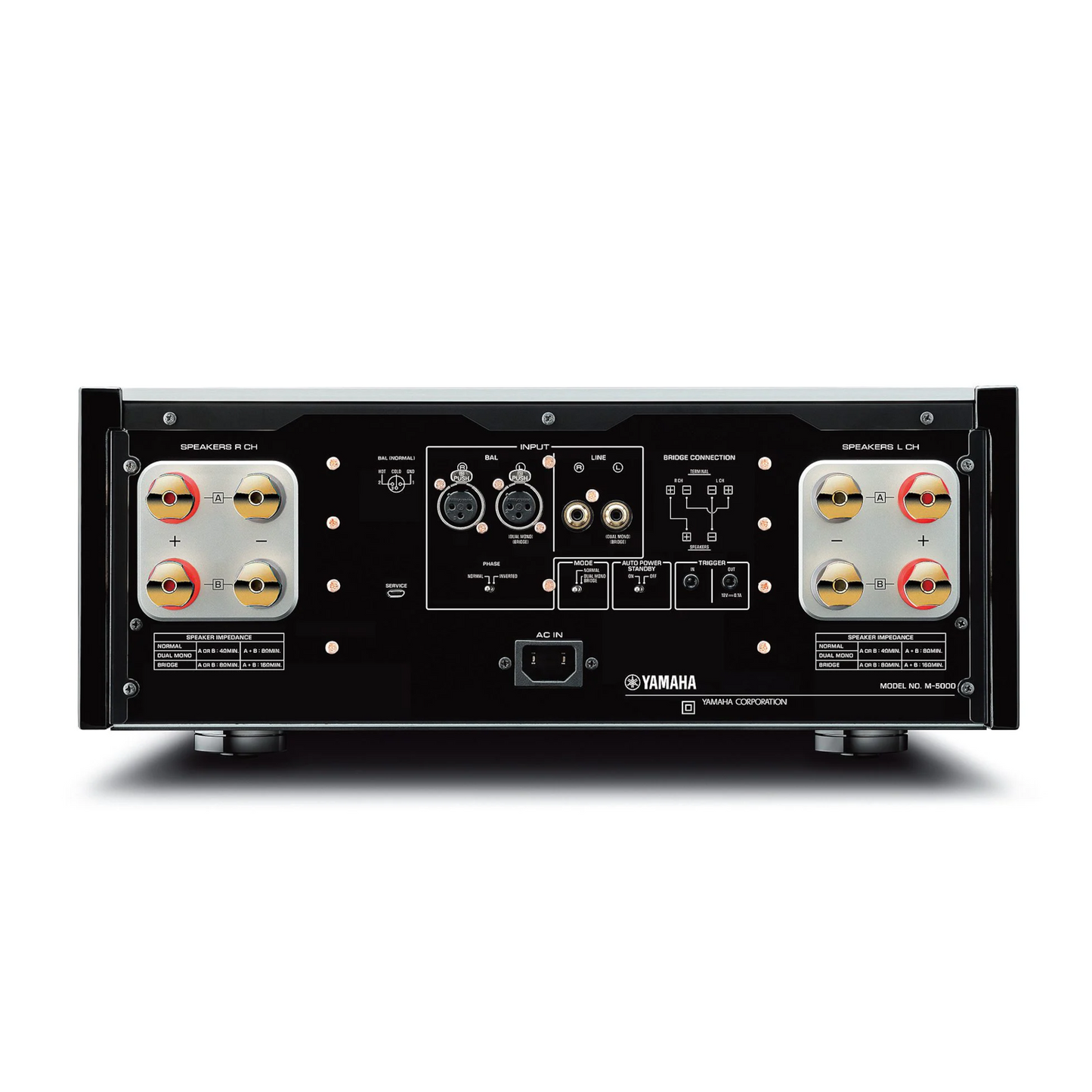

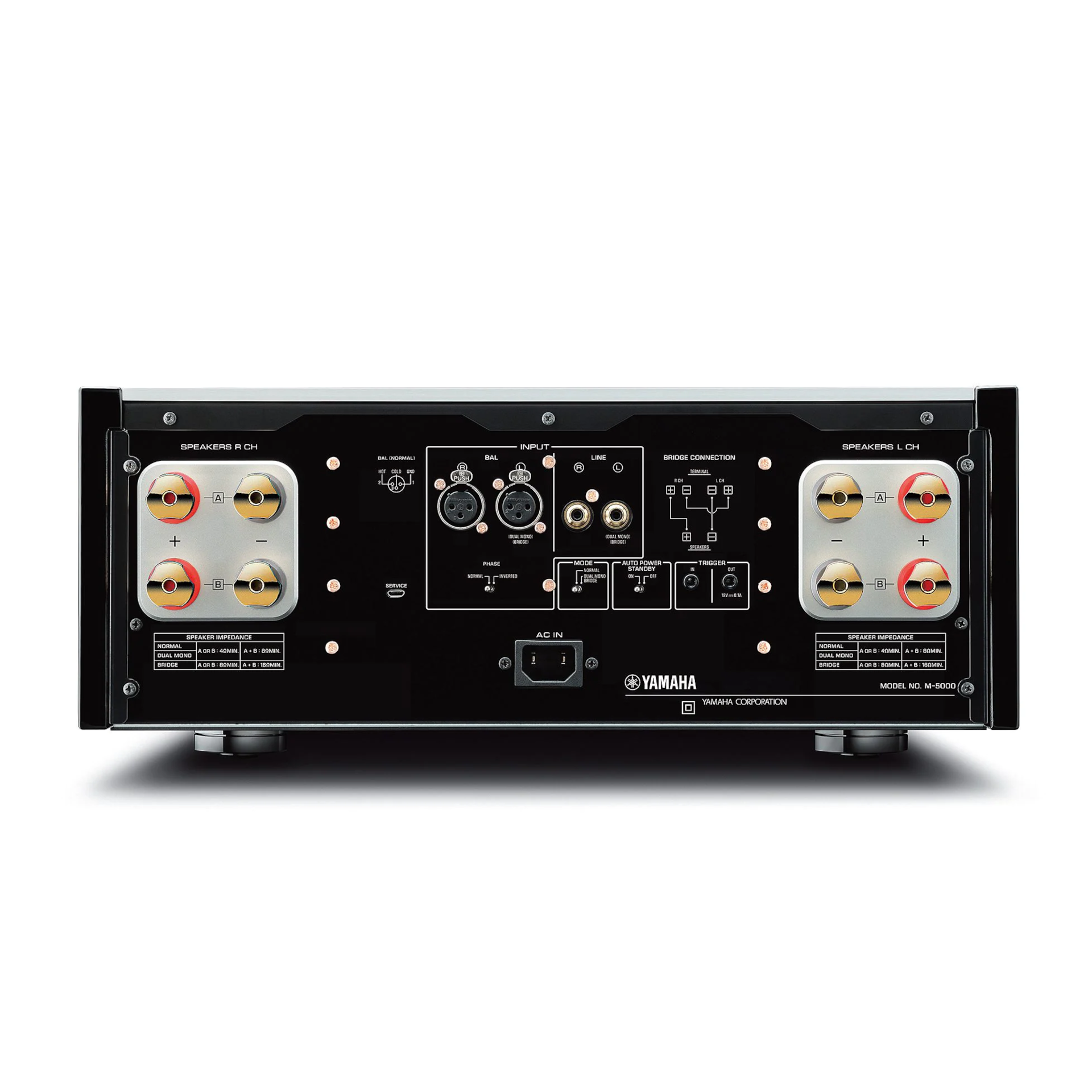

Input terminals: RCA × 1, Balanced (XLR) × 1, Trigger In × 1
-
Output terminals: Trigger Out × 1
Rated Output Power
-
100 W + 100 W: 8 Ω, 20 Hz–20 kHz, 0.07% THD, 2-channel driven
-
200 W + 200 W: 4 Ω, 20 Hz–20 kHz, 0.07% THD, 2-channel driven
-
400 W: 8 Ω, 20 Hz–20 kHz, 0.07% THD, monaural driven
Dynamic Power per Channel — IHF
-
125 W + 125 W: 8 Ω
-
170 W + 170 W: 6 Ω
-
250 W + 250 W: 4 Ω
-
500 W + 500 W: 2 Ω
Other Audio Specifications
-
Dynamic headroom: 0.97 dB, 8 Ω
-
Maximum output power: 220 W + 220 W, 4 Ω, 1 kHz, 0.7% THD
-
IEC output power: 125 W + 125 W, 8 Ω, 1 kHz, 0.02% THD
-
Maximum effective output power: 135 W + 135 W, 8 Ω / 270 W + 270 W, 4 Ω, JEITA, 1 kHz, 10% THD
-
Power bandwidth: 10 Hz–50 kHz, 8 Ω, 0.1% THD, 45 W
-
Damping factor: 300 or higher, 8 Ω, 1 kHz
-
Input sensitivity / impedance:
- Balanced: 2.0 Vrms / 47 kΩ
- Line: 1.0 Vrms / 47 kΩ
-
Maximum input signal voltage:
- Balanced: 2.20 Vrms
- Line: 1.10 Vrms
-
Frequency response:
- +0 / −3 dB: 5 Hz–100 kHz
- +0 / −0.3 dB: 20 Hz–20 kHz
-
THD + Noise:
- 0.035% — 2-channel driven, 50 W, 8 Ω
- 0.05% — monaural driven, 200 W, 8 Ω
-
Channel separation: ≥90 dB at 1 kHz; ≥70 dB at 10 kHz
-
Signal-to-noise ratio: 110 dB, IHF-A
-
Residual noise: 40 µVrms balanced / 50 µVrms line
-
Meter class: 2.5th class
General
-
Power consumption: 400 W
-
Standby: 0.2 W
-
Off mode: 0.1 W
-
Maximum power consumption: 800 W
-
Auto Power Standby: Yes
-
Dimensions: 435 × 180 × 464 mm (W × H × D)
-
Weight: 26.9 kg
