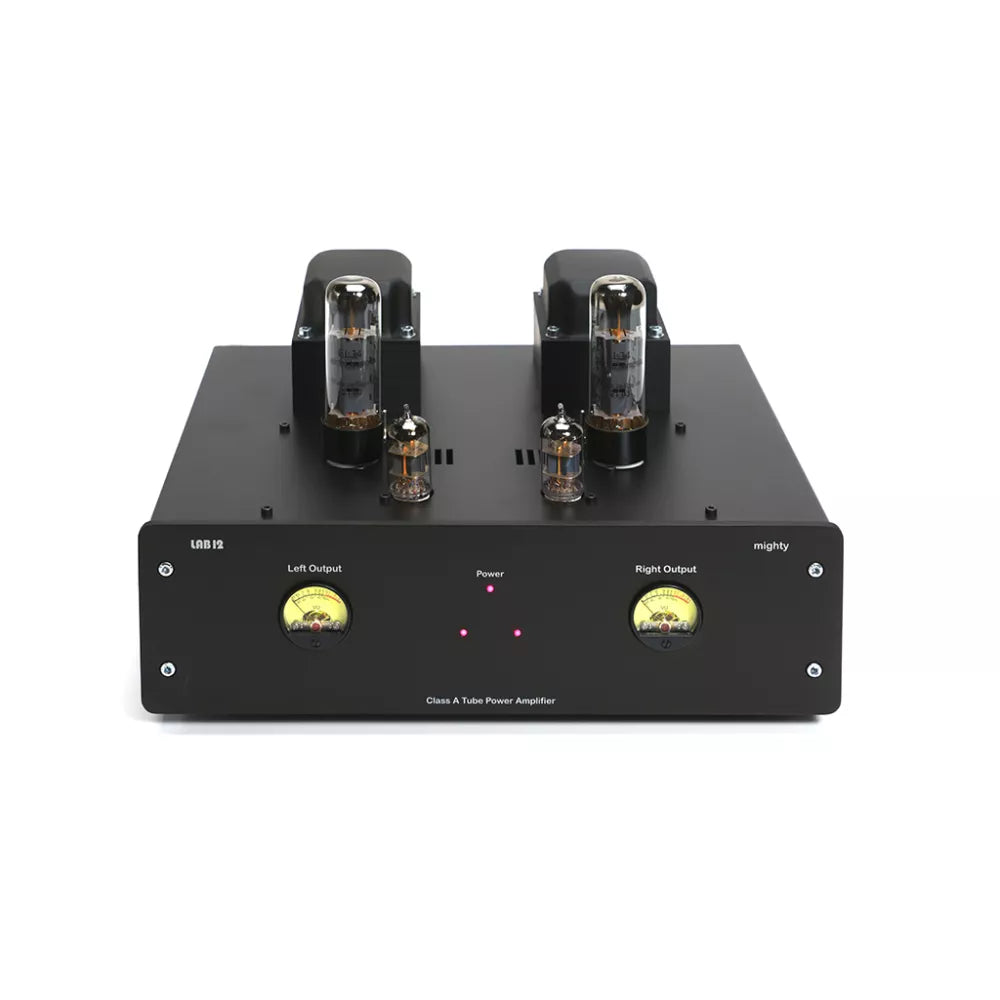

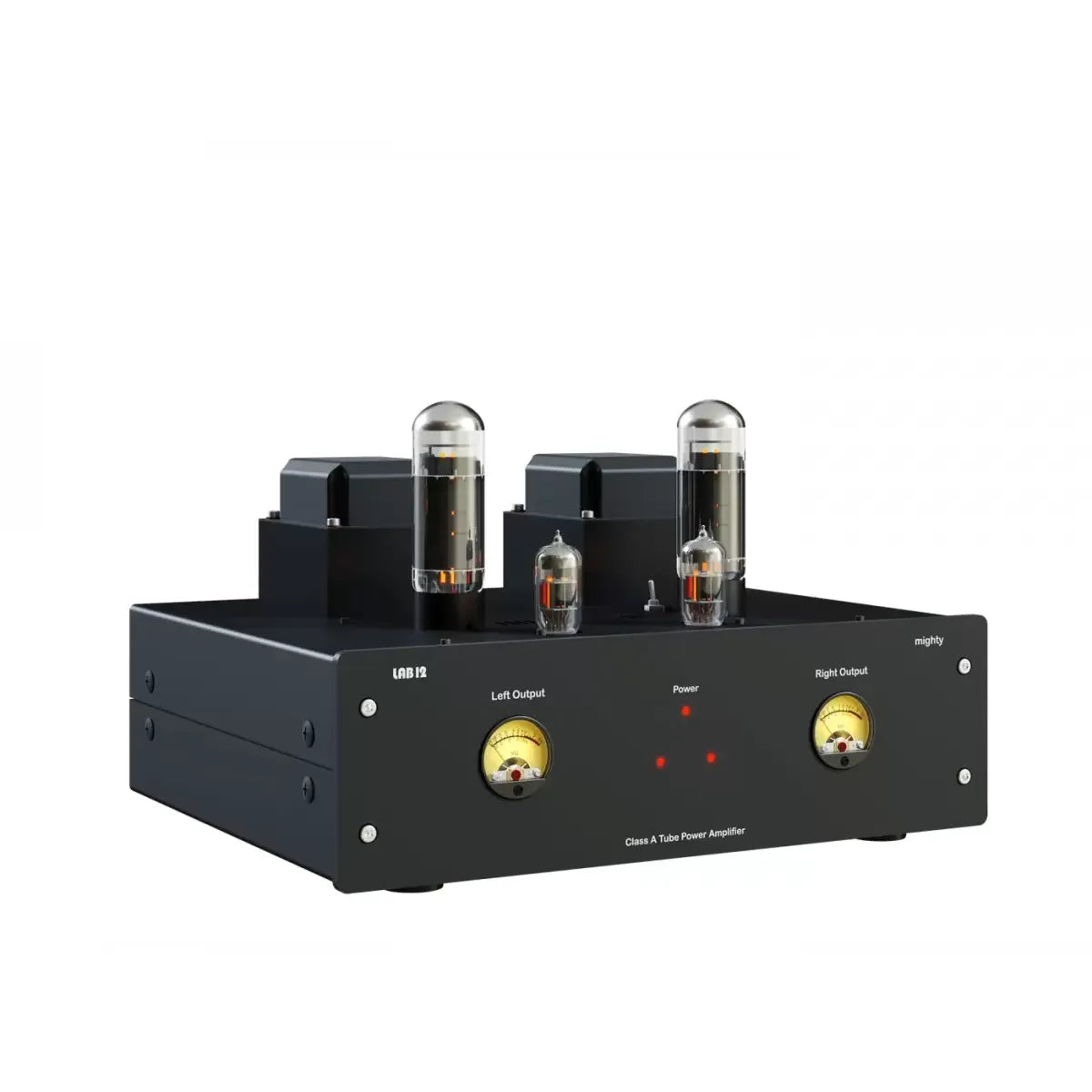

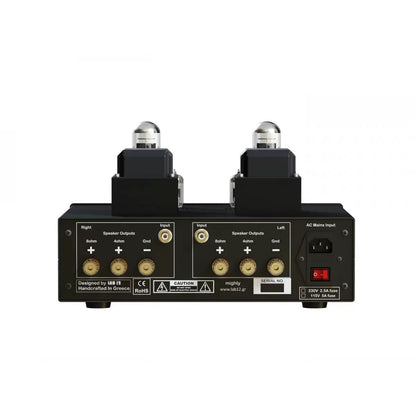

LAB 12 Mighty – Class A Single Ended Power Amplifier

Nothing comes closer to the sound of pure Class A, single-ended audio amplifiers and we’re pushing the limits again with Mighty, which encapsulates all the best attributes of refined tube designs along with the emotional impact of true Class A. Mighty cuts through the layers of music with ease, offering total control and the ability to deliver music in the best possible way to any speakers. Mighty was designed from ground up to work in perfect synergy not only with our own Hpa and True, but also with all solid state and tube preamplifiers on the market. We’ve spent countless hours listening and incorporating finest selection of audiophile grade electronic components to bring music lovers a one-of-a-kind immersive listening experience, that ensures many hours of fatigue-free musical enjoyment.

Features: EL34, 6550, KT88 compatible (EL34 from factory), Triode / Ultra Linear selector switch, No feedback design, SRSG® implementation, Fine symmetry® implementation, Analog retro Nissei VU meters, 5mm Aluminum face panel. Finish Available: Matt Black Only!

SPECIFICATIONS

• Power consumption: 150 VA max
• Output power: 10 Watt per channel
• Frequency response: 20 Hz-25 KHz (-0.9dB)
• Input impedance: 100K ohm
• Recommended speakers: 4-8 ohm
• Tube complement: 2x 6n1p dual triodes, 2x EL34 Power Pentodes
• Input sensitivity: 600mV triode mode / 400mV Ultra Linear mode
• Inputs: 1x line stereo (RCA connectors)
• Available Colours: Matt Black
• Dimensions (WxHxD): 32x17x29 cm
• Weight: 9Kg
• Tube Cage Included!
