The KIN Sub 10 is yet another audio solution in the award winning, versatile KIN family. Perfectly proportioned and packed with proprietary Totem technology, KIN Sub 10 accentuates the bass excitement of every music, movie, or gaming experience.
The 10” Woven Fiberglass Woofer is driven by an oversized vented magnetic structure designed for tremendous dynamic capacity. It is powered and controlled to perfection by our digital 300W amplifier, developed in tandem to achieve the perfect balance of musicality and impact. Overall presence can be fine-tuned through a unique BASS EQ offering a pure and linear Natural setting or the enhanced High Impact setting for more intense bass energy.
Placement options become boundless with the addition of the optional LINK wireless transmitter. Convenience and simplicity blend with performance and modern technology in the KIN Sub 10.
Add the LINK for a wireless connection between your amplifier or powered speaker and KIN SUB 10.
Design Highlights
- Compact for easy home integration
- Sealed enclosure for consistent performance regardless of placement
- Ultra low-profile feet
- Wireless connectivity option

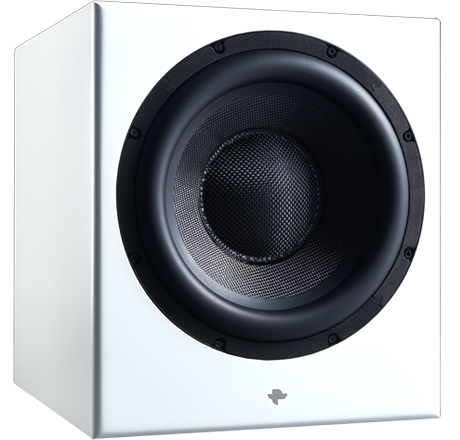

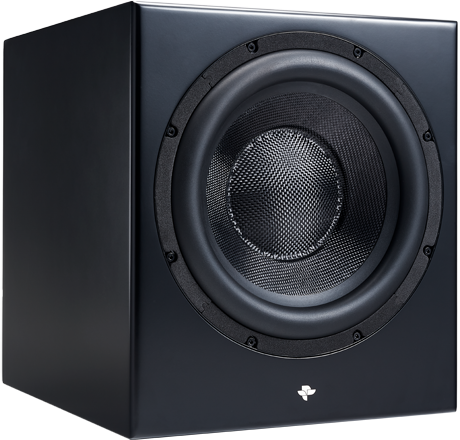

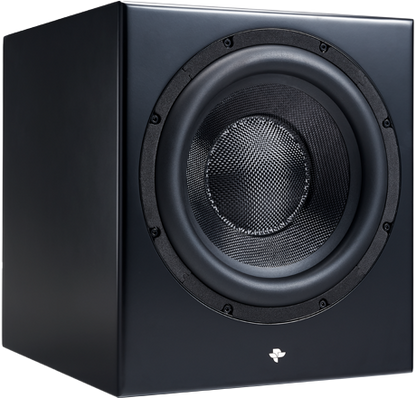

- Available in Black and White Satin with matching magnetic grill
Technical Features
- 300 watt Class D high efficiency amplifier
- 10” Reinforced Fiberglass woofers with anodized aluminum dust cap

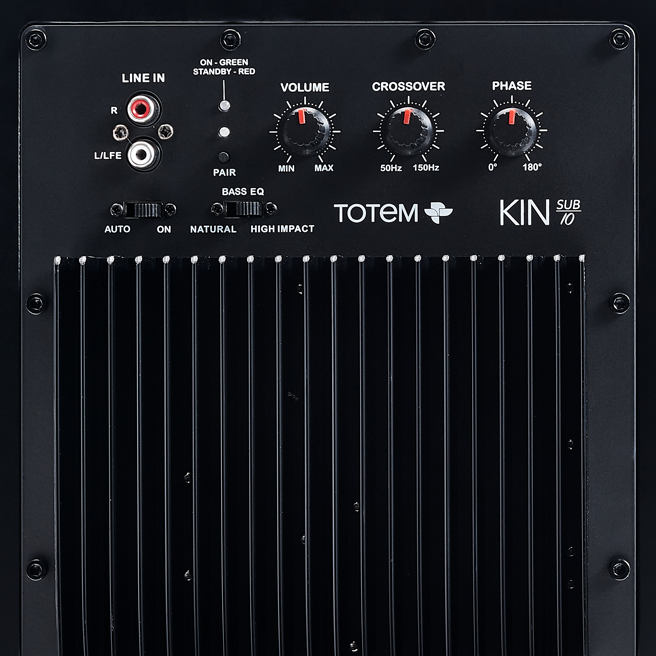

- High Impact and Natural BASS EQ settings
- Variable volume / phase / frequency adjustments for pinpoint accuracy
- Sealed enclosure for consistent performance regardless of placement
Specifications
| Design: |
Powered Subwoofer |
| Enclosure: |
Sealed |
| Amplifier: |
Class D 300 watts |
| Woofer: |
10” cone composed of high tensile spun fibreglass strands top coated and bonded to a cellulose core. Driven by vented magnetics utilizing an oversized ferrite magnet assembly. Butyl rubber surround. |
| Voice coil: |
High temperature enamel resin coated copper wire wound on a vented aluminum former |
| Frequency response: |
27 Hz – 200 Hz |
| Crossover: |
Variable from 50Hz to 150Hz, 24dB/Octave |
| Phase: |
Variable from 0 to 180 degrees |
| Volume: |
Variable |
| Inputs: |
Stereo RCA/LFE/Wireless |
| Power modes: |
Auto/On |
| Dimensions (HxWxD) : |
13” x 11.5” x 13.5” / 330mm x 292mm x D 345mm |
| Weight: |
30.86lb / 14kg |
