A Wall of Sound
The shallowest of all Totem Architectural speakers fit effortlessly into the tight confines of standard construction framework, transforming them into walls of sensational Totem sound.
Powerful bass generated by the 8” carbon fiber woofer meshes flawlessly with the clear, precise highs emanating from a 1” ceramic tweeter. Totem’s incomparable dispersion will wholly occupy the entire space to ensure every spot of the living area sounds like a prime location. They also seamlessly intermesh with all other Totem speakers for omnipresent multichannel systems so fearlessly mix and match as required.
Discover your Kin Architectural and expand your musical experiences.
Optional Accessories
PCK W8: Pre-construction kits facilitate installation before drywall has been installed.
Enormous Dispersion
KIN IC diffuse sound in an enormously wide, expansive manner comparable to a flood light and illuminate a room with Totem’s holographic sound whereas most others function like a focused, narrow spotlight, creating small acoustic “hot spots”. The dispersion is almost twice that of competitive speakers, so it takes fewer Totem speakers to thoroughly fill a room, and listeners enjoy the same sound whether seated or standing.
Construction / Ease of Installation
Stainless Steel Hardware
Stainless steel hardware and grilles resist corrosion and make KIN suitable for indoor high humidity applications like bathrooms and saunas, and even somewhat protected outdoor applications like soffits and gazebos.
Unified Framework Shield
A ribbed, connected cover protects the speaker from material within walls and ceilings during the installation process and reinforces the rigidity of the integral framework to eliminate resonance.
Heavy Duty Dog Ears
This dog ear system means the speaker installs smoothly, quickly, and easily in any situation. The robust clamping mechanism and drywall gripping teeth provides a rigidity that improves midrange accuracy and bass response.
Carbon Fiber Woofers
The pure polymer impregnated carbon weave is very stiff so it maintains its perfect shape through punishing bass output. It is also incredibly light so it reacts instantaneously. Coupled to a high compliance rubber suspension, the cone motion is controlled for the best possible transient response and clarity. The overall result is thunderous, fast, tight bass.
Slim Profile
This series of 5 in-wall, in-ceiling, and angled in ceiling speakers have a mounting depth that is 25% shallower than comparable KIN IC models. The remarkable shallowness ensures KIN IC Slim can fit wherever sound is required.
SPECIFICATIONS
-
Speaker Type: Slim 8 in in-wall speaker
-
Woofer: 8 in (203 mm) carbon fiber driver
-
Tweeter: 1 in (25.4 mm) ceramic dome, pivoting
-
Frequency Response: 48 Hz – 25 kHz (±3 dB)
-
Sensitivity: 91 dB (1 W / 1 m)
-
Nominal Impedance: 8 Ω
-
Recommended Amplifier Power: 10–125 W
-
Speaker Terminals: Spring-loaded gold-plated terminals
-
Supported Speaker Wire: Accepts up to 12 AWG
-
Dimensions (W × H × D):
-
264 × 364 × 102 mm (10.39 × 14.33 × 4.01 in)
-
Dimensions (without grille):
-
255 × 355 × 101 mm (10.03 × 13.97 × 3.97 in)
-
Mounting Depth: 96 mm (3.77 in)
-
Cutout Dimensions (W × H):
-
225 × 328 mm (8.85 × 12.75 in)
-
Weight: 2.08 kg (4.6 lb)
-

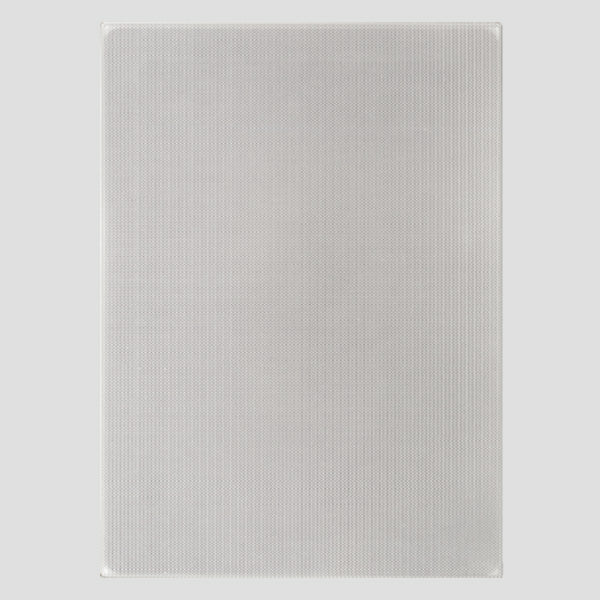

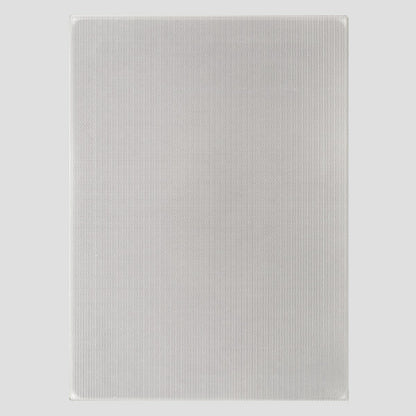

Grille: Magnetic, paintable, virtually bezel-less white metal
-
Accessories/Options:
- PCK W8 pre-construction bracket
- Optional square grille
-
Dispersion Pattern: 75°
*Inquire about pre-construction brackets*
KIN IW PCB8-Pre Construction Brackets
$45/each
