*Contact store for purchase and upgrade options*
Modular Upgrades Include:
1) Performance DAC Board + $2,180.00
2) PhoenixDAC Board + $5,850.00
3) SPDIF Board + $1,170.00
4) PhoenixUSB Board + $2,400.00
5) PhoenixI2S Board + $2,980.00
An enthusiast-level streamer and server, benefitting from premium chassis and high-
level linear power supply using AR6-CX technology. Modular storage and output
design, supporting the full range of modules including high-end DAC and Digital
solutions. STREAM3 takes the same mainboard platform of STREAM1 but with
further improvements.
SPECIFICATIONS
File Formats
-
File Formats: WAV, AIFF, FLAC, ALAC, AAC, MP3, DSF, DFF
-
MQA Supported: Yes
Sample Rates
-
PCM: Up to 32bit/768KHz
-
DSD: Up to DSD256 via DoP, up to DSD512 via Native DSD
-
SPDIF Maximum Output: 24bit/192KHz
Connectivity
-
USB: DACs, Imports, Backups, USB Drive playback
-
USB 3.2: 3 x USB 3.2
-
USB-C: 1 x USB-C
Network
-
Ethernet: 2 x 2.5gb Ethernet, Bridged (wired only)
Other
-

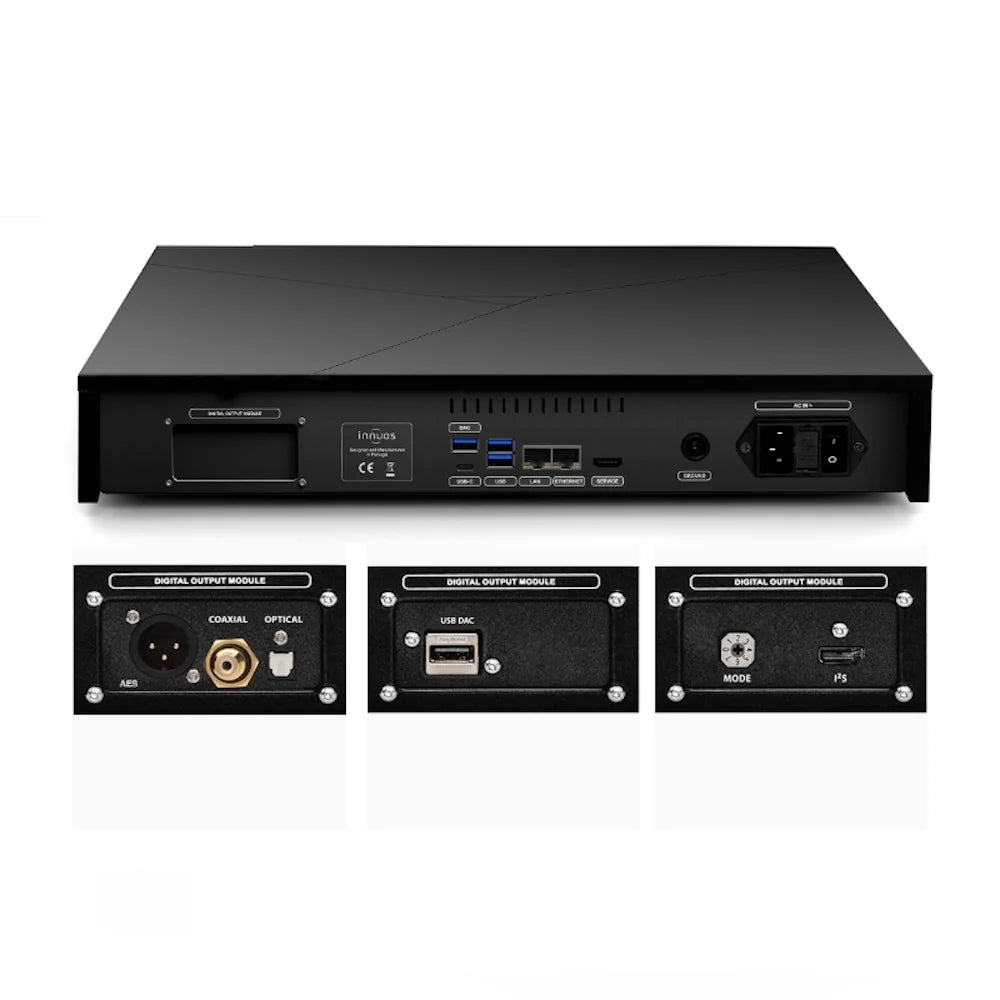

Digital Output Module Bay: 1 x
-
Storage Expansion Bay: 1 x (1 x M2 nVME SSD)
-
HDMI: 1 x (service only)
-
Chassis Grounding Port: 1 x (4mm)
-
AC Power Inlet: 1 x
Streaming Sources
Streaming Services
- Qobuz
- TIDAL
- Deezer
- HighResAudio
- IDAGIO
- Spotify Connect
- TIDAL Connect
- Qobuz Connect
- Internet Radio & Podcasts
- Radio Paradise FLAC and Interactive services
Local Music Files
- Internal M2 NVMe SSD
- NAS Drives/Servers
- USB Drives
Premium subscription required for streaming services.
USB Drives: ‘Folder View’ only, full library integration unavailable.
CD Ripping
-
CD Ripping: Available via external USB Optical Drive + installed SSD storage
-
Metadata Sources: Discogs, FreeDB, GD3, Musicbrainz
-
Ripping Format Options: FLAC or WAV
Control Software & Integrations
-
Innuos Sense App for iPadOS/iOS: v16.6 (or later)
-
Innuos Sense App for Android: 7 (or later)
-
Innuos Sense App for Amazon Fire OS: 7 (or later)
-
Web Browser Access: Any web browser via my.innuos.com or IP address
Optional Integrations
-
Roon: Core and Endpoint modes supported
-
HQPlayer: NAA Endpoint mode only
-
AssetUPnP: Server mode only
Power
-
Power Supply: 230V AC / 115V AC
Dimensions & Weight
-
Dimensions (W x D x H): 420mm x 330mm x 85mm
-
Weight: 12.8 Kg
Contents
- Innuos Stream3
- AC Power Cable (2.0m)
- Ethernet Cable (2.0m)
- Quick Start Guide
