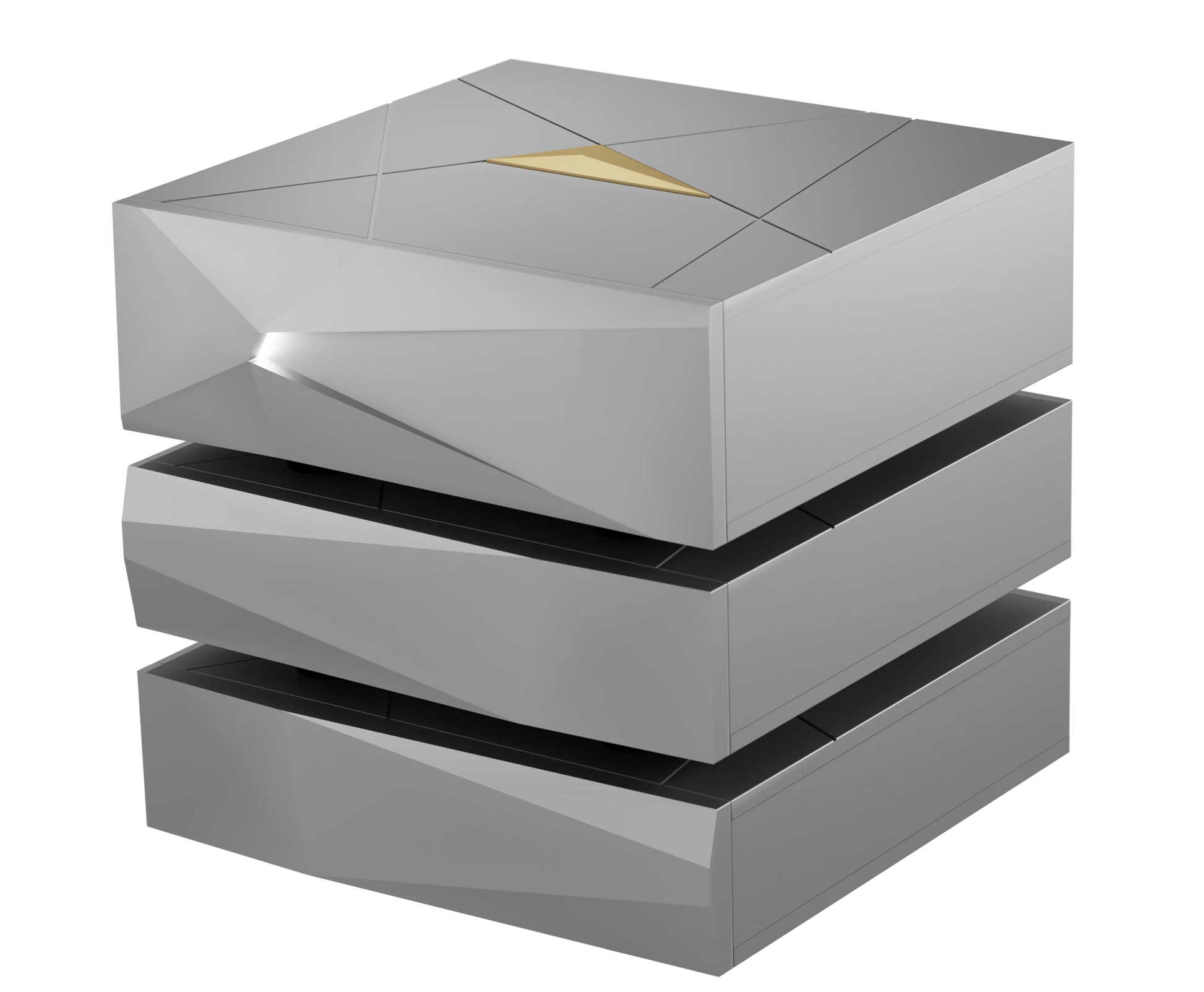

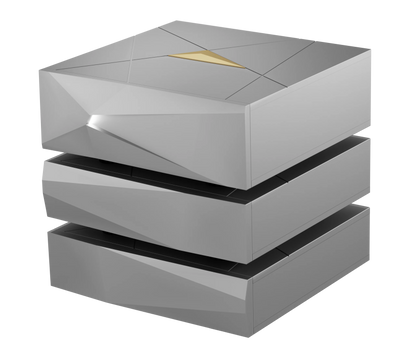

Innuos Nazaré Audio Streamer

Innuos Nazaré Audio Streamer

$66,000.00 CAD
$66,000.00 CAD
Description

Processing

Using a deeply tuned and customised PreciseAudio mainboard, NAZARÉ benefits from new dedicated PreciseUSB and PreciseNET boards, independently powered and connected directly to the CPU to bypass conventional mainboard implementations, with substantial processing capability from 10 performance cores, allowing even greater AudioCore processing. Up to 16TB of internal SSD storage is available to accommodate large music libraries.

Power Supply

Nazaré sets a new standard in power supply design, combining premium components with cutting-edge engineering for exceptional performance. Developed in collaboration with Dr. Sean Jacons, NAZARÉ boasts innovative GaN-ARC8 modules with GaN-based active rectification with 376,000uF capacitance per module, coupled with advanced DC4 regulation modules with low-noise foil resistors. An upgraded NGaN+ regulator with high-performance filters ensure clean, stable power delivery sourced through high-precision multifilar toroidal transformers, custom-made Lundahl inductors, and premium internal cabling.

Output

The NazaréFLOW is a dedicated high-performance output stage designed to complement the NAZARÉ streamer, while remaining fully compatible with any USB audio source. It features a high-precision USB reclocker with synchronized clock connections to internal boards, ensuring accurate signal timing. The FLOW also includes on-board I2S output conversion and supports dedicated output modules for proprietary DAC interfaces like MSB ProISL. All components are powered by the latest generation NAZARÉ PSU architecture, which provides separate, low-noise power rails for the clocks, reclocker, and output boards.

Network

The NazaréNET is a state-of-the-art audiophile network switch, housed in a matching NAZARÉ chassis and powered by the latest generation of NAZARÉ PSU architecture. It features a next-generation board with both SFP+ fibre and RJ45 input/output options, offering maximum flexibility and speed. Dedicated power rails for the network boards and clocks ensure uncompromised signal integrity and optimal performance throughout the system.

Chassis

All NAZARÉ products feature a newly engineered high-quality chassis and benefit from advanced SmartStack technology; a high-performance vibration dampening system applied through collaboration with TONEO and is used across key components including PreciseAudio boards, toroidal transformers, inductors, capacitor banks, and regulators. The asymmetric fascia and cover help dissipate standing waves and reduce structural resonance throughout the full aluminium enclosure. For further isolation, system-tuned feet developed with IsoAcoustics ensure optimal performance.

The NAZARÉ Series

The NAZARÉ family of devices can all be used independently and are designed to work individually with a wide variety of different existing systems, interfacing with different DACs and streamers. But combining the NAZARÉ, the NazaréFLOW and the NazaréNET will give you a seamless three-piece system for the ultimate performance in digital audio reproduction, able to maximise the very best of any connected high-end DAC to satisfy the most discerning audiophiles.

Specifications:

File Formats:
- WAV, AIFF, FLAC, ALAC, AAC, MP3, DSF, DFF
- MQA Supported

Sample Rates:
- PCM: Up to 32bit/768KHz
- DSD: Up to DSD256 via DoP, up to DSD512 via Native DSD
- (24bit/192KHz maximum output on SPDIF module)

Connectivity:
- USB (for DACs, Imports, Backups, USB Drive playback)
- 2 x USB 3.2
- 1 x PreciseUSB

Network:
- 1 x PreciseNET Gigabit Ethernet

Other:
- 1 x Storage Expansion Bay (1 x M2 nVME SSD)
- 1 x HDMI (service only)
- 1 x AC Power Inlet
- 1 x 4mm Chassis Ground Port

Streaming Sources:
- Qobuz
- TIDAL
- Deezer
- HighResAudio
- IDAGIO
- Spotify Connect
- TIDAL Connect
- Qobuz Connect
- Internet Radio & Podcasts
- Radio Paradise FLAC and Interactive services

Local Music Files
- Internal M2 NVMe SSD
- NAS Drives/Servers
- USB Drives (Folder View’ only, full library integration unavailable)

CD Ripping:
- Available via external USB Optical Drive + installed SSD storage
- Metadata Sources: Discogs, FreeDB, GD3, Musicbrainz
- Ripping format options: FLAC or WAV
- Control Software & Integrations

Innuos Sense App for iPadOS/iOS v16.6 (or later)
Innuos Sense App for Android 7 (or later)
Innuos Sense App for Amazon Fire OS 7 (or later)
Any web browser via my.innuos.com or IP address.

Optional:
- Roon (Core and Endpoint modes supported)
- HQPlayer (NAA Endpoint mode only)
- AssetUPnP (UPnP Server mode only)

Power:
- 230V AC / 115V AC

Dimensions:
- 480mm x 434mm x 216mm (W x D x H)
Weight:
- 40.9 Kg

Contents:
- Nazaré
- AC Power Cable (2.0m)
- Ethernet Cable (2.0m)
- Quick Start Guide
