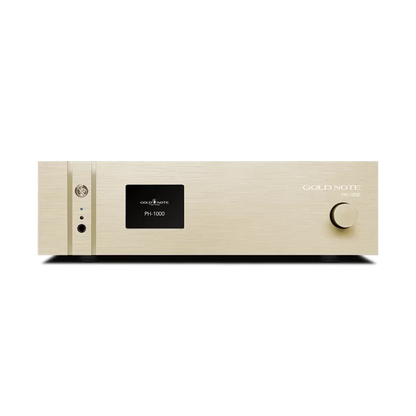

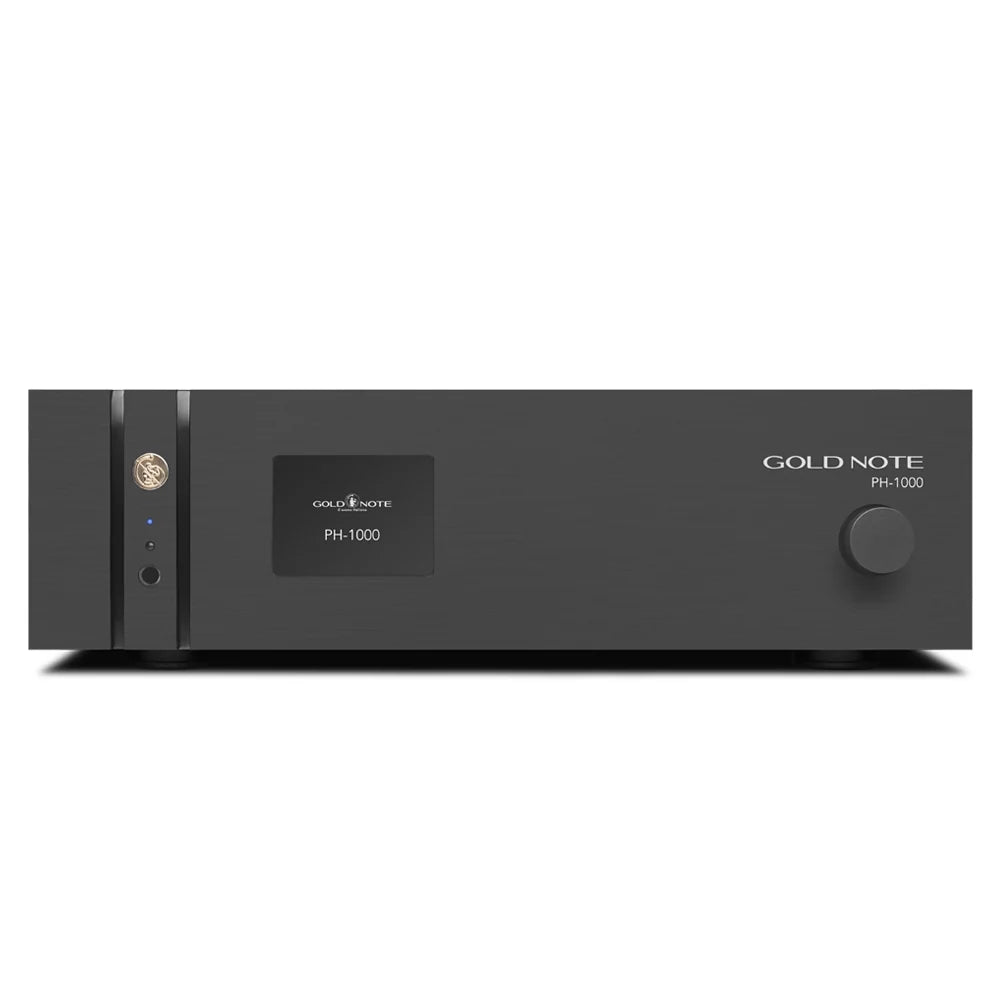

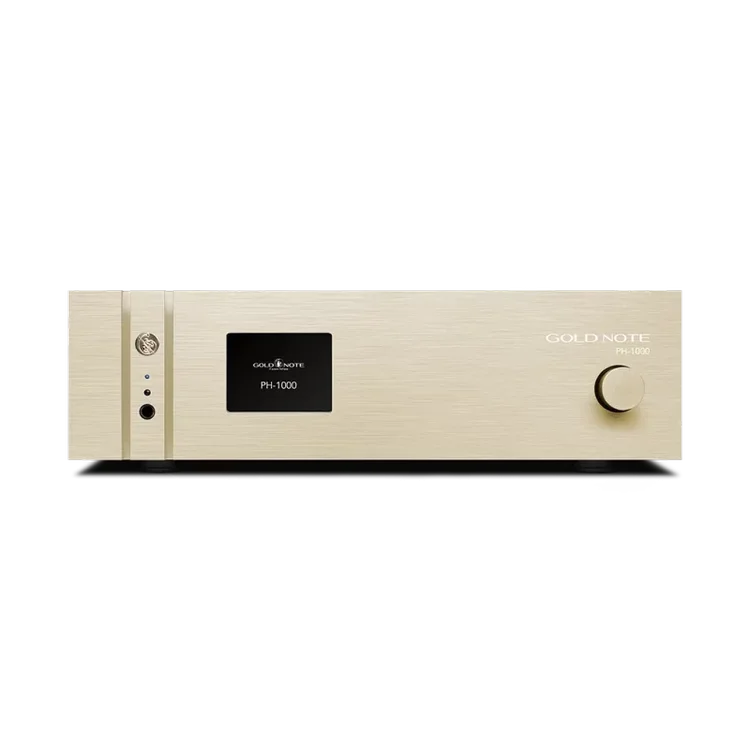

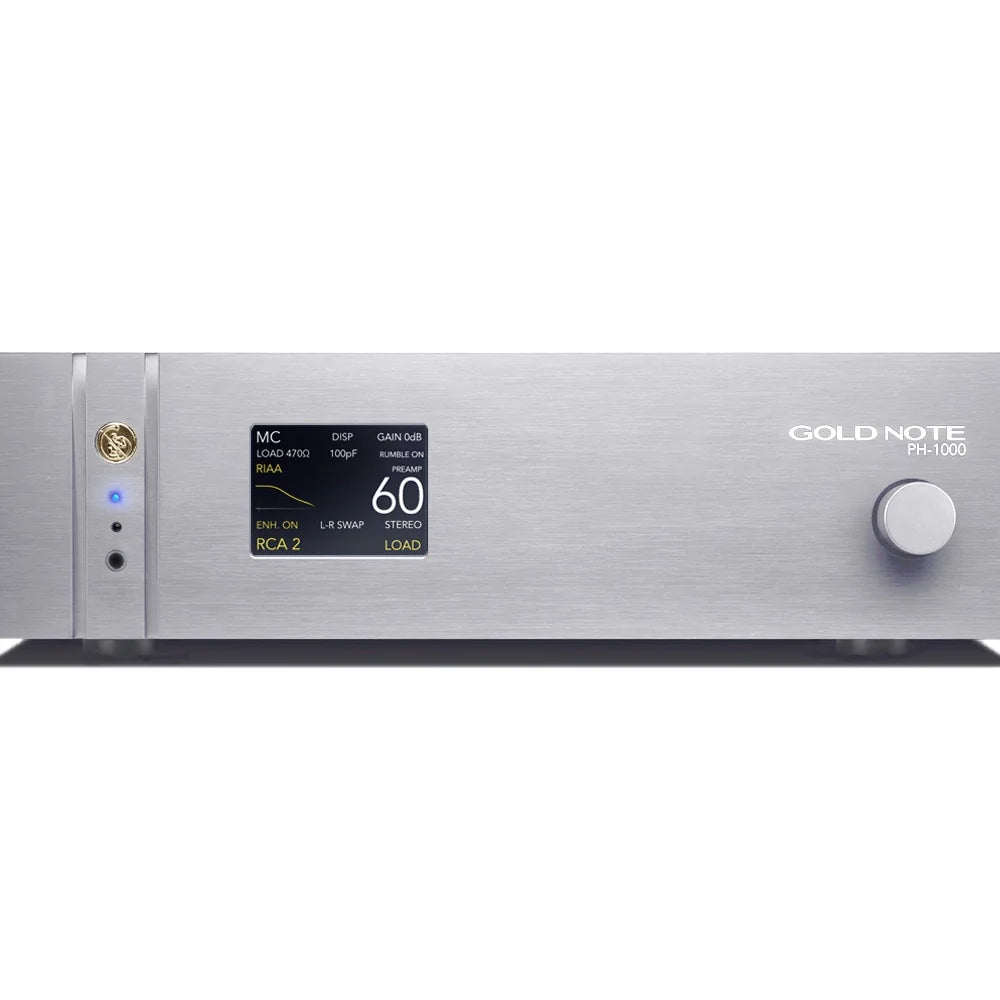

Gold Note PH-1000 Lite Phono Preamplifier

Contact for purchase and more info

The Gold Note PH-1000 LITE is a high-end solid-state phono preamplifier designed for both MM and MC cartridges. It retains much of the technology of the flagship PH-1000 while offering a simplified feature set and lower price.

It provides 36 selectable EQ curves, along with adjustable gain, cartridge loading, and capacitance, giving it broad compatibility with different cartridges and phono systems. The LITE uses a dual-mono architecture for low noise and excellent channel separation.

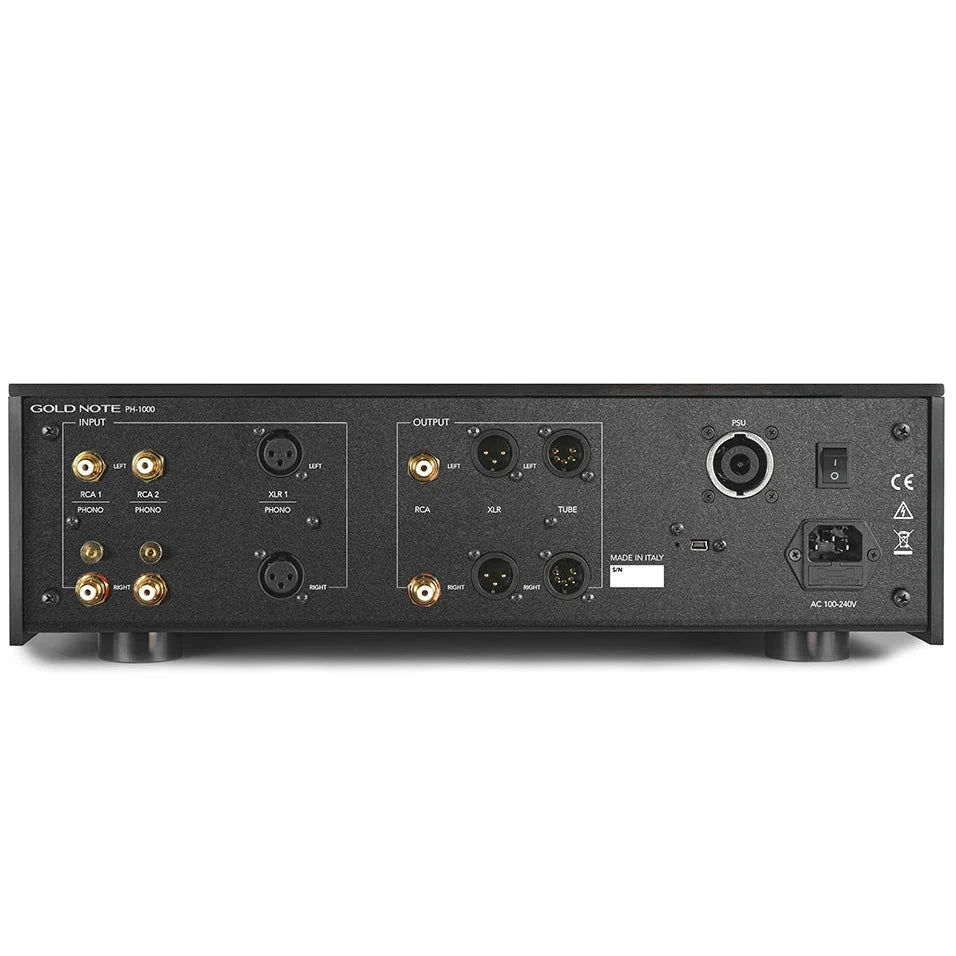

The PH-1000 LITE includes 2 RCA and 1 balanced XLR inputs, with both RCA and XLR outputs. It can also be upgraded with Gold Note's PSU-1000 or PSU-1250 external power supplies. Unlike the full PH-1000 and PH-1000 LINE, the LITE does not support external cartridge loading or custom/infinite EQ curves.

SPECIFICATIONS

• Inputs: 2 × RCA, 1 × XLR
• Outputs: RCA, XLR
• Gain: 40 dB MM to 60 dB MC, 7 steps
• Load: 12 RCA options, 8 XLR options
• Capacitance: OFF, 100 pF, 150 pF, 220 pF, 330 pF, 470 pF, 1000 pF
• EQ Curves: 36 total — 18 preset curves with Enhanced options
• Filter: 10 Hz infrasonic, 36 dB/octave
• Mono/Stereo: Stereo, Stereo 180°, Mono, Mono 180°, Mono L
• Channel Swap: R/L, L/R
• Frequency Response: 20 Hz–20 kHz
• THD: < 0.01%
• SNR: 100 dB
• Dynamic Range: 110 dB
• Dimensions: 16.93" × 5.31" × 14.76"
• Weight: 26.46 lbs
