Gold Note PH-1000 Line Phono Preamplifier

Contact for purchase and more info

Gold Note PH-1000 LINE is a flagship solid-state Class A phono preamplifier designed for high-end vinyl playback. It supports both MM and MC cartridges and offers extensive adjustment of gain, cartridge loading, capacitance, and EQ, including multiple preset and customizable EQ curves.

The LINE version adds a built-in Class A line preamplifier with volume control, allowing the PH-1000 LINE to be used as a system preamp as well as a dedicated phono stage. It provides RCA and XLR connectivity and can be connected directly to a power amplifier, eliminating the need for a separate line preamp. The line section can also be switched off when using it strictly as a phono stage.

SPECIFICATIONS

• Type: Solid-state Class A phono preamplifier + line preamplifier
• EQ Curves: Infinite + Custom, with 4 user-adjustable presets
• Gain: 40 dB MM to 65 dB MC, 7 steps
• Load: 12 RCA options / 8 XLR options
• Capacitance: OFF, 100 pF, 150 pF, 220 pF, 330 pF, 470 pF, 1000 pF

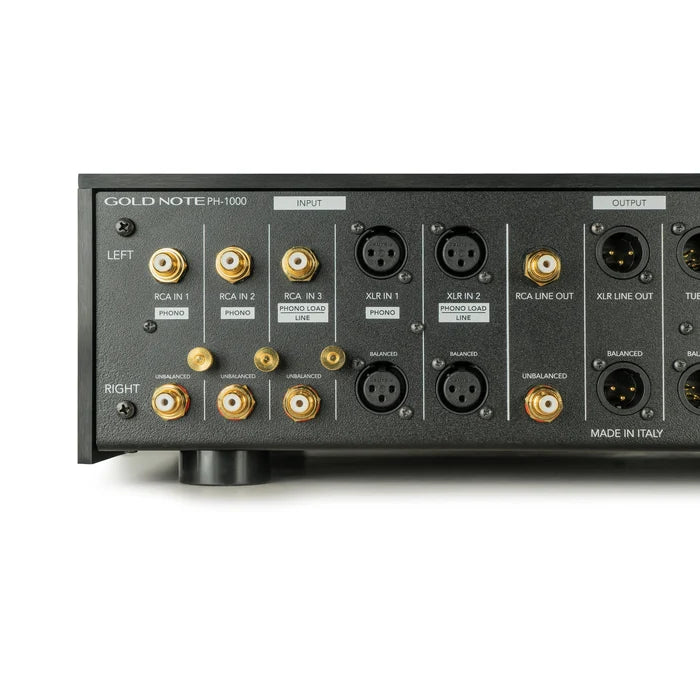

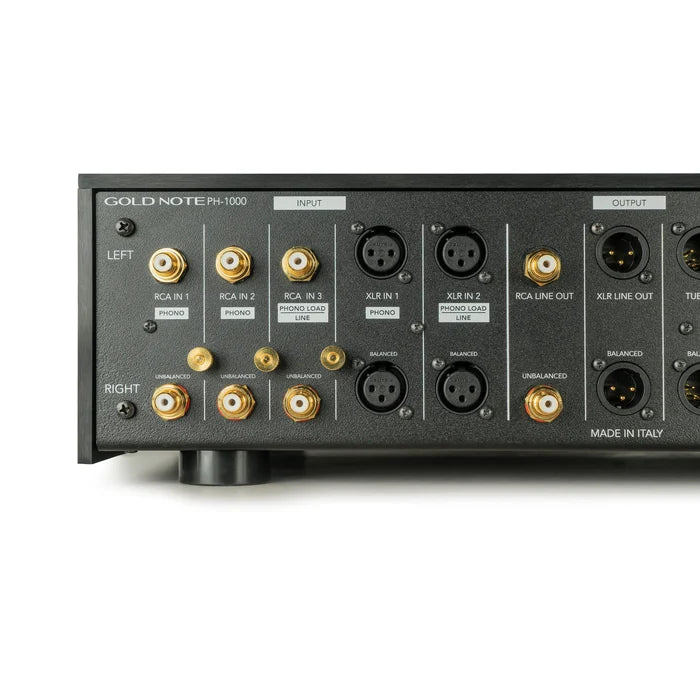

• Inputs: 2 × RCA, 1 × XLR
• Line Inputs: RCA and XLR
• Outputs: Tube, RCA, XLR, 1 × Headphone
• External Load: Supported
• Line Stage: Class A
• Cartridge Compatibility: MM / MC
• Volume Control: Yes, for line-stage operation
