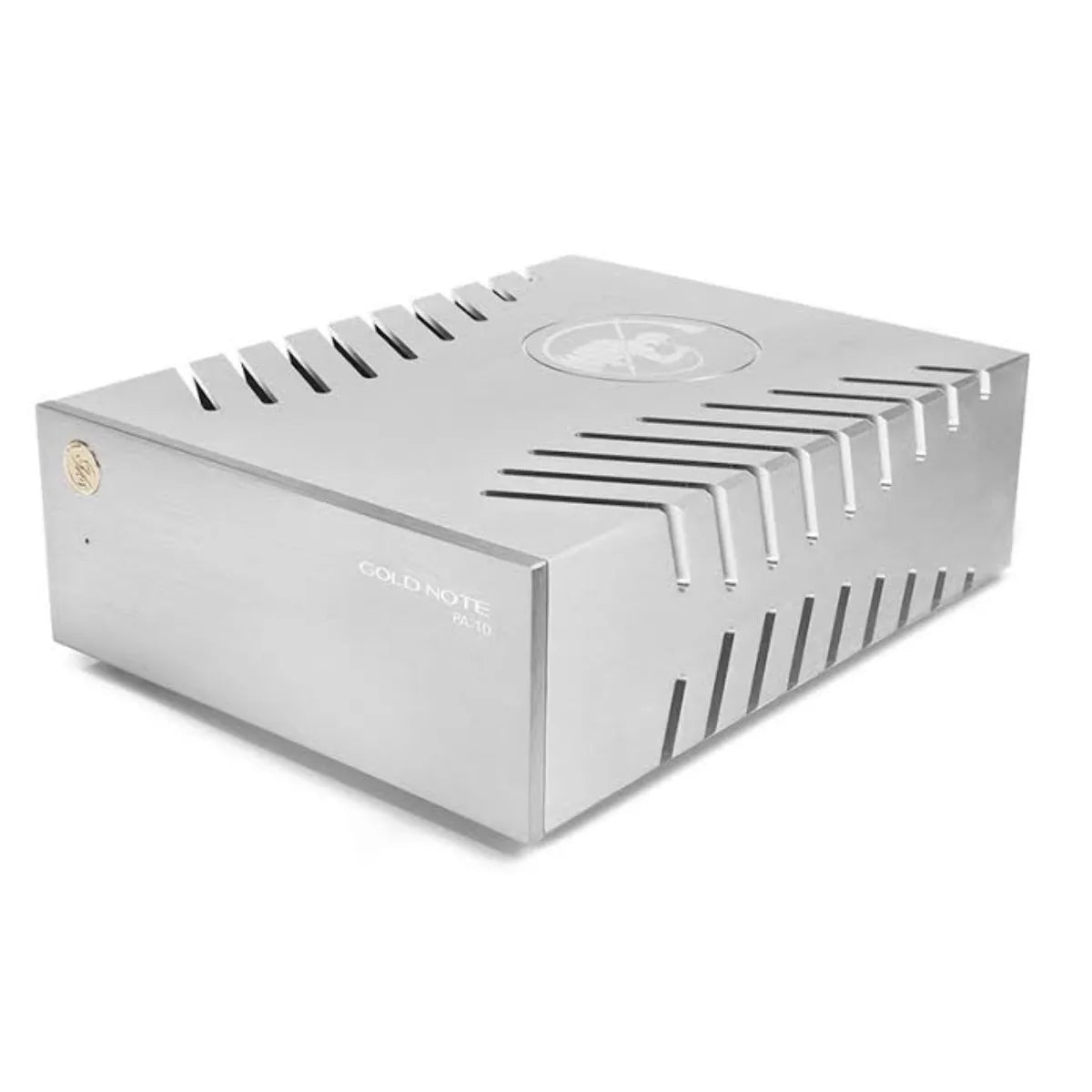

The Gold Note PA-10 is a compact, high-power stereo/mono power amplifier designed for modern high-end systems. Its proprietary amplifier technology is engineered to deliver Class-A-like performance while providing high power and the ability to handle demanding speaker loads.
The PA-10 delivers 75 W per channel into 8 Ω, 150 W into 4 Ω and 300 W into 2 Ω in stereo, while BTL mono operation increases output to 300 W into 8 Ω and 600 W into 4 Ω. Its selectable high/low damping factor allows it to be matched to different loudspeaker types, from difficult-to-drive floorstanders to sensitive speakers and mini-monitors.

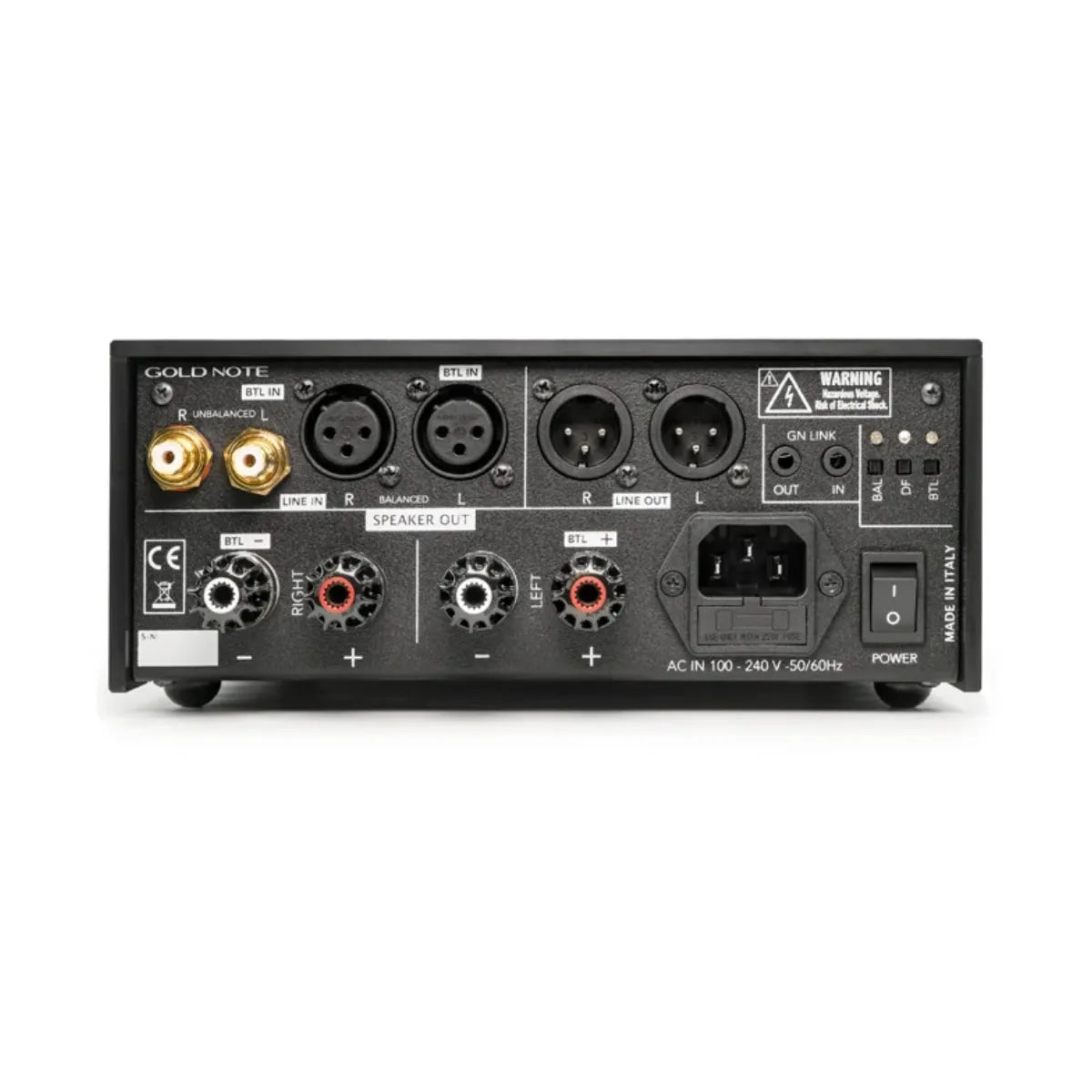

Connectivity includes RCA and XLR inputs, with the ability to connect two sources simultaneously. An XLR stereo output allows multiple PA-10 units to be linked for multi-room or additional amplifier configurations, while GN Link provides master-slave power control. The PA-10 can also automatically switch between standby and operation based on the incoming audio signal.
The PA-10 is discontinued and was later superseded by the PA-10 EVO, which is a different amplifier and should not be treated as the same model.
SPECIFICATIONS
-
Type: Stereo / Mono Power Amplifier
-
Output Power: 75 W/ch @ 8 Ω
-
Output Power: 150 W/ch @ 4 Ω
-
Output Power: 300 W/ch @ 2 Ω
-
Mono (BTL): 300 W @ 8 Ω / 600 W @ 4 Ω
-
Frequency Response: 10 Hz–30 kHz ±1 dB
-
THD: 0.05%
-
Damping Factor: High 250 / Low 25, selectable
-
Inputs: 1 × RCA stereo, 1 × XLR stereo
-
Input Sensitivity: 1.4 Vrms RCA/XLR
-
Input Impedance: 13 kΩ RCA/XLR
-
Speaker Outputs: Gold-plated binding posts
-
Line Output: 1 × XLR stereo
-
GN Link: 12V In/Out
-
Power Supply: 100–240 V, 50/60 Hz
-
Power Consumption: <1 W standby / <10 W no signal / 1,400 W max
-
Dimensions: 200 × 80 × 260 mm
-
Weight: 4 kg net / 5 kg boxed
