The HP-5.2 is our latest high-end headphone amplifier, engineered for the most demanding audiophiles. It features a balanced Dual-Mono Class A design that ensures signal purity and delivers exceptional audio fidelity. With four headphone outputs and abundant power, it effortlessly handles any headphone on the market.
The audio path is constructed with premium components, and all settings are applied in real-time within the analog domain. Combining high sound quality, versatility, and unique features, the HP-5.2 offers extraordinary performance at an unbeatable price.
A touchscreen display ensures quick adjustments and an intuitive user experience. Perfect for all high-end systems, the HP-5.2 boasts advanced tools such as Crossfeed (for soundstage reconstruction), Harman option (to optimize headphone listening), variable gain and damping factor, and mono/stereo selection.
It functions as a traditional amplifier with analog inputs/outputs while integrating Bluetooth 5.2 HD aptX, USB-C, and a SABRE DAC.
REMOTE AND TOUCHSCREEN DISPLAY
The HP-5.2 offers flexible control via the included remote and the touchscreen display, ensuring a superior user experience. With the remote, you can adjust any setting from the comfort of your listening position without interruption.
BYPASS
Designed for systems that include a preamplifier, the bypass function allows you to integrate the HP-5.2 without altering your existing wiring. This lets you seamlessly switch between the HP-5.2 and your preamp for loudspeaker listening.
Bypass mode is automatically activated by selecting one of the four headphone outputs (excluding the REAR output) and placing the unit into standby (indicated by the red LED). You can enter standby by pressing the power button on the remote or holding the display for three seconds.
Please note: For the bypass to function correctly, the source and preamplifier connected to the HP-5.2 must utilize the same connection type (RCA or XLR).
EXPLORING THE FEATURES
Studio is an innovative suite of features designed to elevate the headphone listening experience, implemented entirely in the analog domain:
- Crossfeed: Blends L/R channels to recreate a soundstage similar to listening through loudspeakers.
- Harman: Optimizes equalization specifically for headphone acoustics.
- Superflat: Linearizes the frequency response in the high range.
- DF (Damping Factor): Adjusts the damping factor to perfectly match the impedance of your headphones.
The Balance function offers precise volume control over Left/Right channels, allowing you to manage output according to your hearing needs or specific driver characteristics.

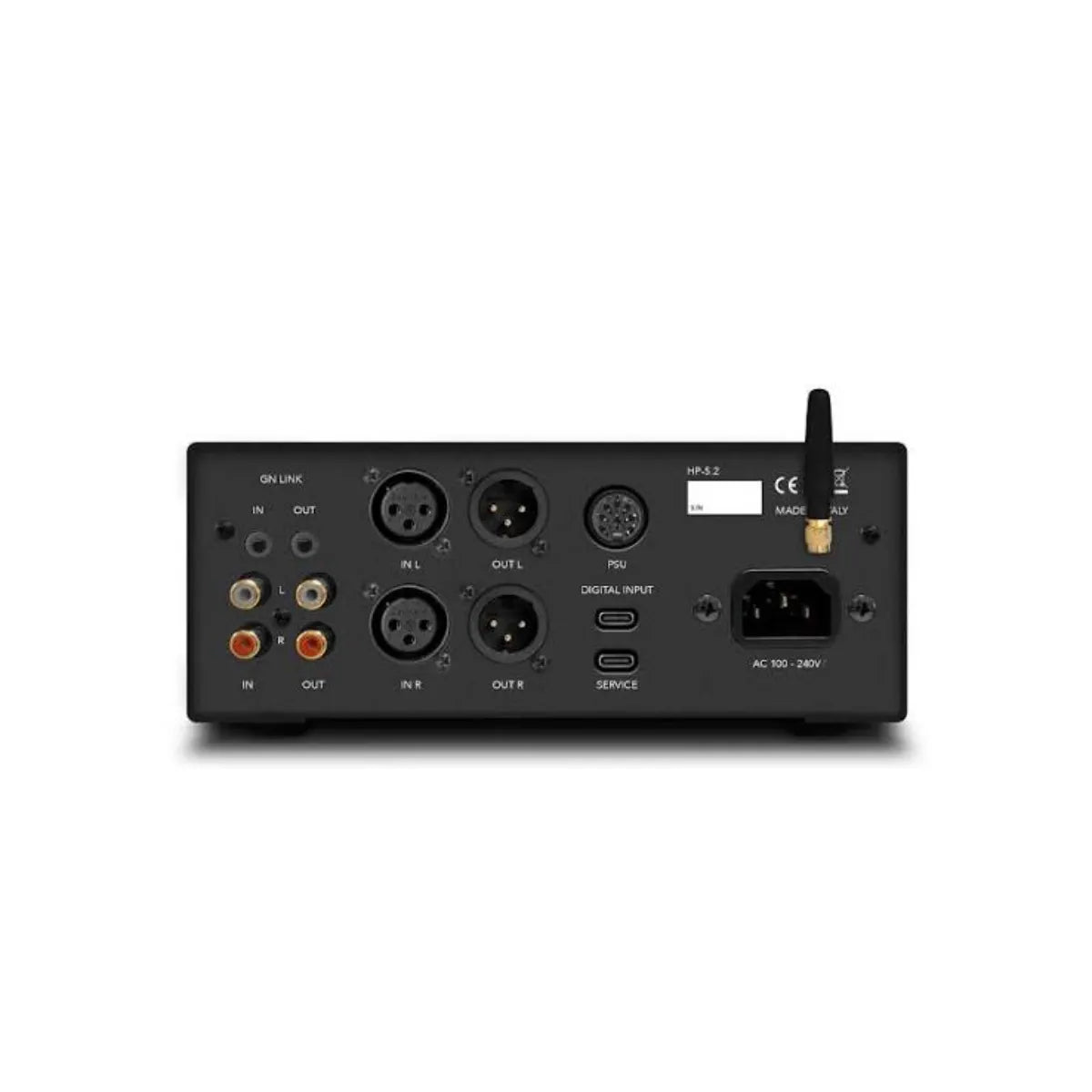

The HP-5.2 is equipped with balanced (XLR) and unbalanced (RCA) inputs, plus Bluetooth 5.2 HD aptX and a USB-C digital input. These digital connections allow for direct streaming from smartphones, tablets, or computers.

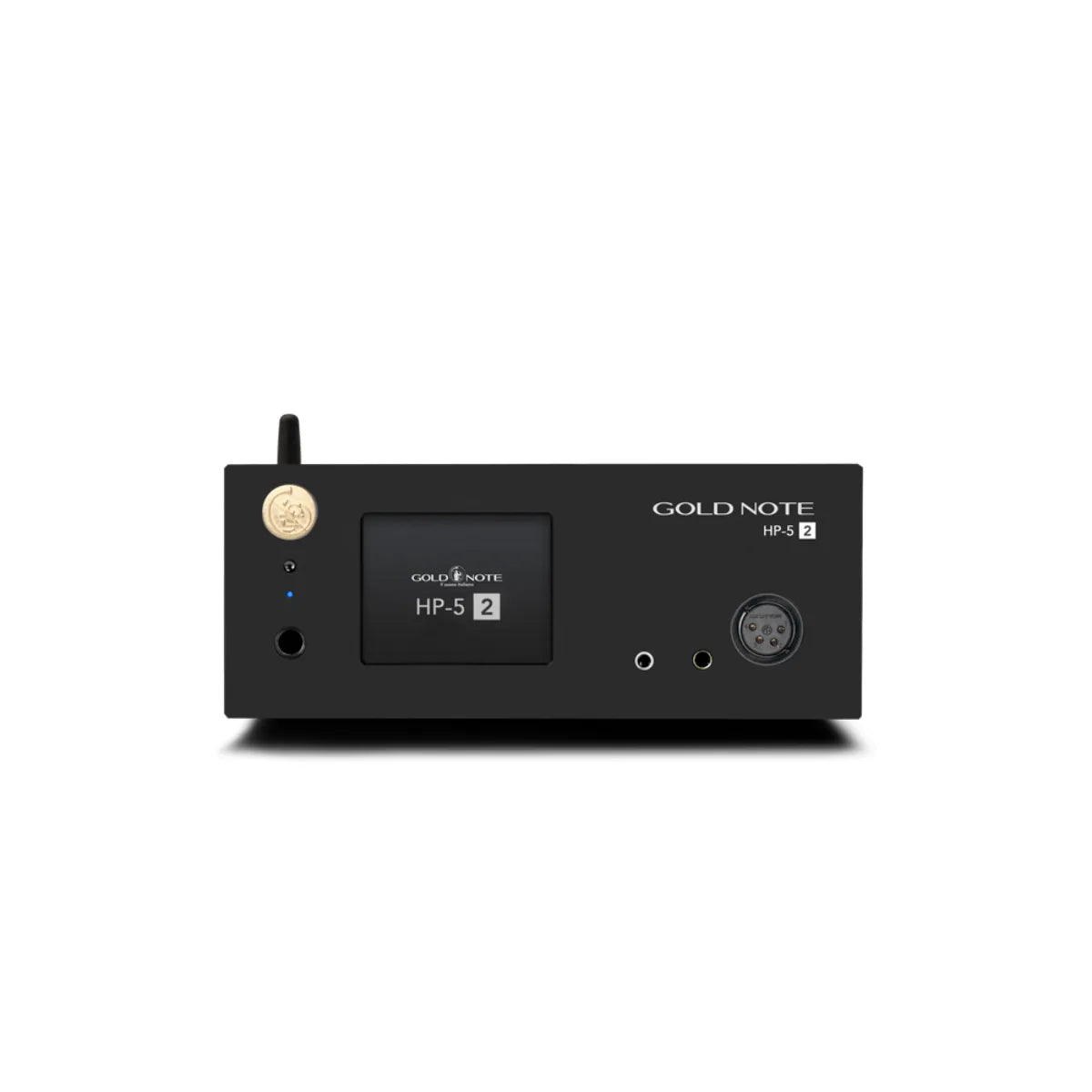

A wide array of outputs ensures compatibility with your favorite headphones. The front panel features unbalanced (3.5mm, 6.3mm) and balanced (4.4mm, XLR) connectors. You can also connect Bluetooth headphones seamlessly via the touchscreen display.
Furthermore, by selecting the RCA/XLR line outputs, the HP-5.2 functions as a line preamplifier, retaining the ability to apply all Studio settings to your main system. Finally, for maximum flexibility, both stereo and mono playback modes are supported.
SPECIFICATIONS
-
Type: Class-A Dual-Mono Headphone Amplifier
-
DAC: ESS SABRE
-
Bluetooth: 5.2 HD aptX, 24-bit
-
Digital Inputs: 1 × USB-C, Bluetooth
-
Digital Output: Bluetooth 5.2 HD aptX, 24-bit
-
Analog Inputs: 1 × RCA, 1 × XLR
-
Headphone Outputs: 3.5 mm, 6.3 mm, 4.4 mm balanced, 4-pin XLR balanced
-
Line Outputs: 1 × RCA, 1 × XLR
-
Headphone Output Power: 5 W max
-
Frequency Response: 20 Hz–20 kHz ±0 dB
-
THD+N: 0.015% @ 1 kHz
-
S/N Ratio: 105 dB
-
Crossfeed: Adjustable
-
Analog EQ: Harman options, Superflat
-
Damping Factor: Adjustable — High/Low
-
Gain: Low / Mid / High
-
Balance: L/R adjustable
-
Stereo/Mono: Selectable
-
Preamp Function: Yes — RCA/XLR line outputs
-
Remote: Multifunction remote included
-
Power Supply: 100–240 V, 50/60 Hz
-
Power Consumption: 25 W max
-
Dimensions: 200 × 80 × 260 mm
-
Weight: 3 kg net / 4 kg boxed
-
Finish: Black anodized aluminum
-
Optional Upgrade: PSX-5.2 external power supply
