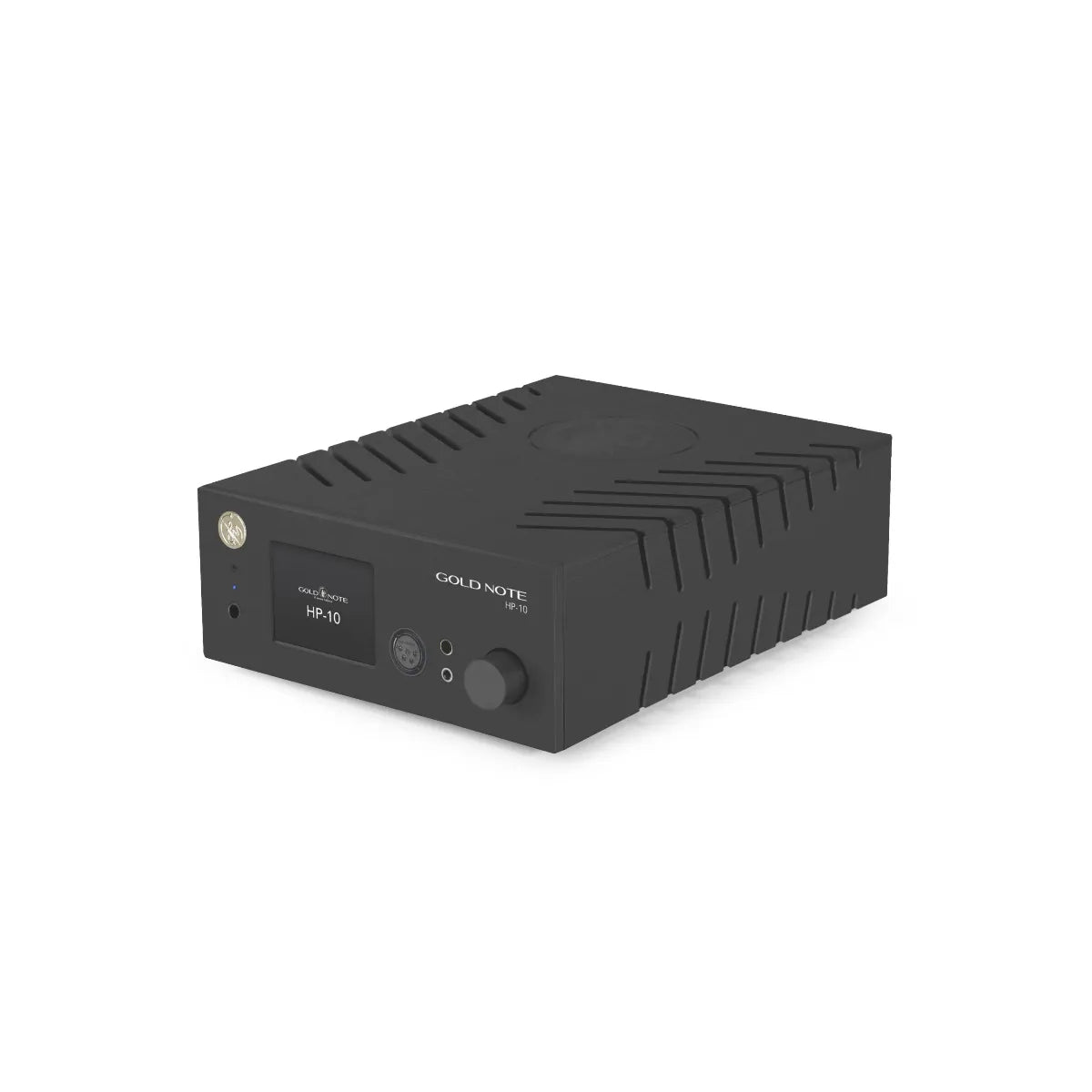

The Gold Note HP-10 is a high-end Dual-Mono Class-A balanced headphone amplifier designed for exceptional signal purity and compatibility with a wide range of headphones. Its fully analog signal path uses high-quality discrete components, with all processing and adjustments performed in the analog domain.

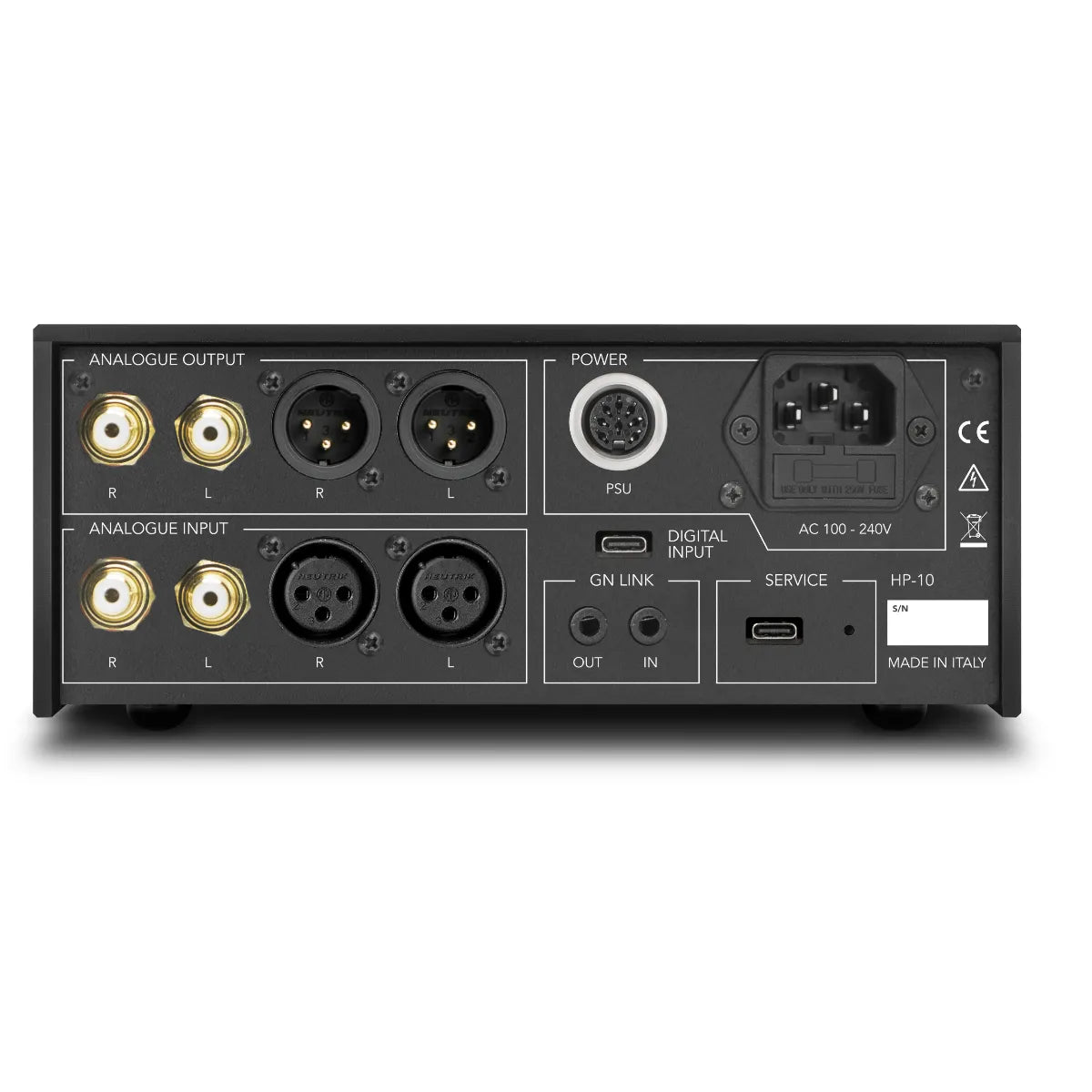

The HP-10 features four headphone outputs—3.5 mm, 6.3 mm, 4.4 mm balanced and 4-pin XLR balanced—along with balanced XLR and unbalanced RCA inputs. A touchscreen, rotary control and remote provide easy access to its extensive listening controls, including four Crossfeed modes, Harman Curve EQ, Superflat, adjustable damping factor, variable gain, channel balance and 0°/180° phase control.
It can also operate as a line preamplifier, with RCA and XLR outputs while retaining its Studio processing. Stereo/mono operation, L/R channel switching and individual channel selection in mono provide further flexibility. A 12V trigger In/Out and bypass function allow the HP-10 to integrate easily into larger high-end systems.
SPECIFICATIONS
-
Type: Dual-Mono Class-A Headphone Amplifier
-
Frequency Response: 20 Hz–20 kHz ±0.3 dB
-
THD+N: 0.015% @ 1 kHz
-
S/N Ratio: 110 dB
-
Headphone Output Power: 10 W max
-
Analog Inputs: 1 × RCA, 1 × XLR
-
Line Outputs: 1 × RCA, 1 × XLR
-
Headphone Outputs: 3.5 mm, 6.3 mm, 4.4 mm balanced, 4-pin XLR balanced
-
Crossfeed: Adjustable — full spectrum, lows, mids or highs
-
Analog EQ: Harman Curve, Superflat
-
Damping Factor: Adjustable — High/Low
-
Phase: Adjustable — 0°/180°
-
Stereo/Mono: Selectable
-
Channel Balance: Adjustable
-
Gain: Variable
-
Remote: IR multifunction remote
-
Trigger: 12V In/Out
-
Preamp Function: Yes — RCA/XLR line outputs
-
Power Supply: 100–240 V, 50/60 Hz
-
Power Consumption: 25 W max
-
Dimensions: 200 × 80 × 260 mm
-
Weight: 3.5 kg net / 4.5 kg boxed
-

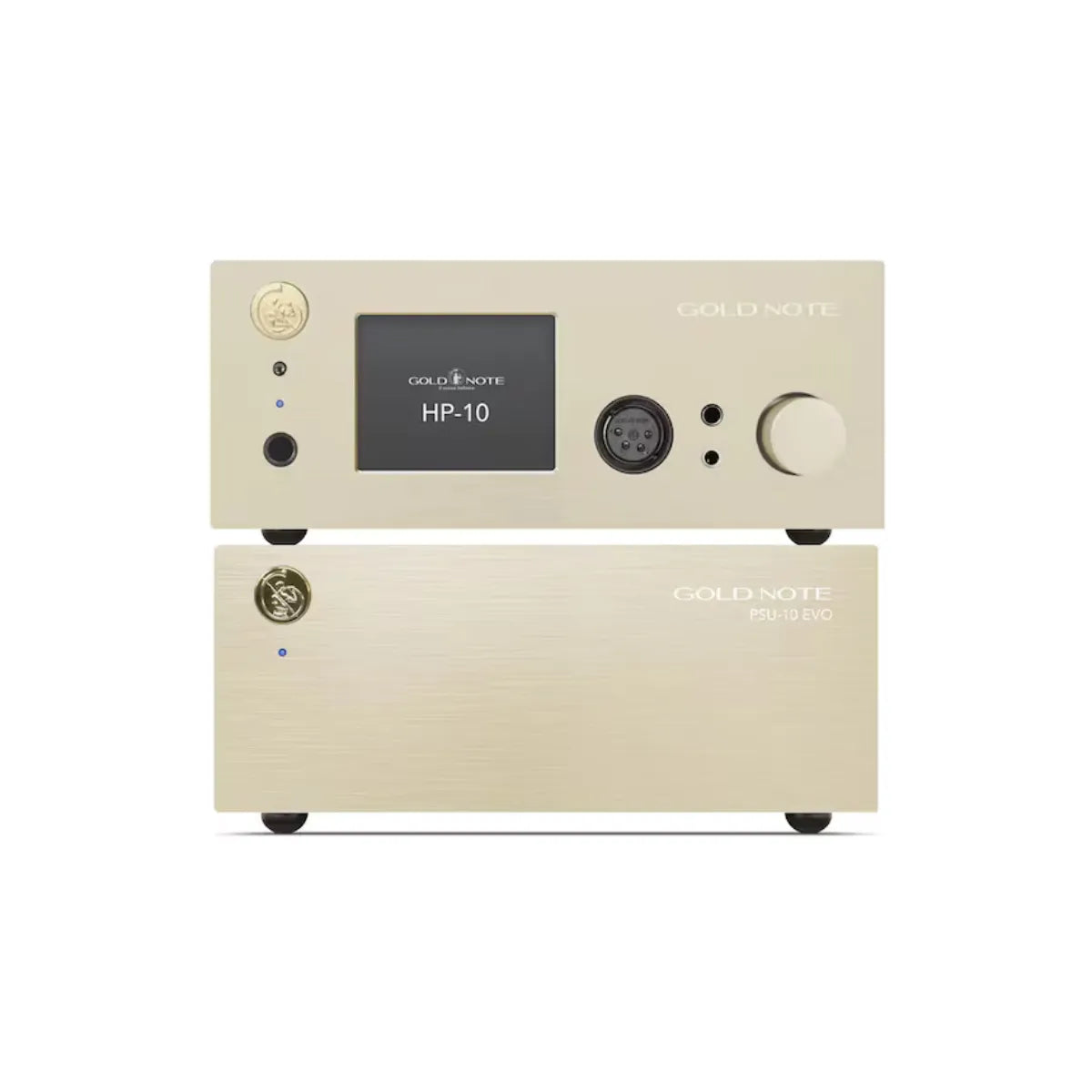

External PSU: Compatible with PSU-10 EVO
