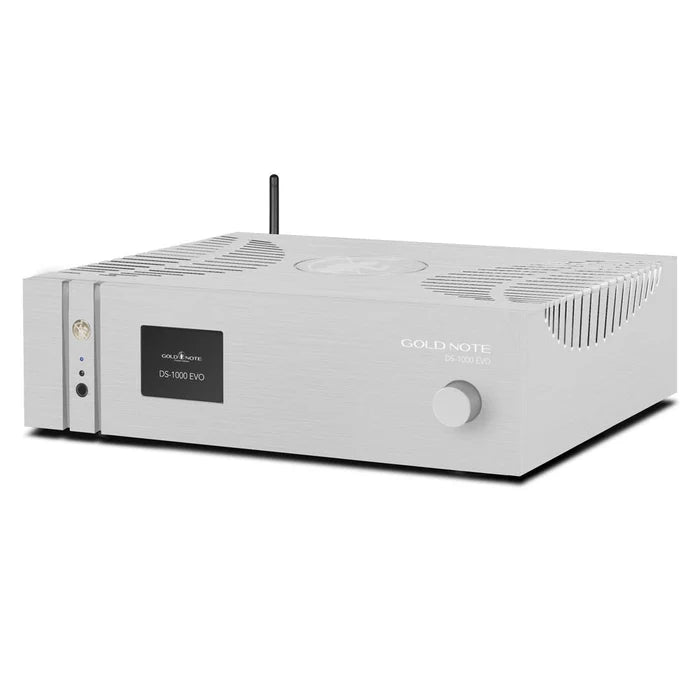

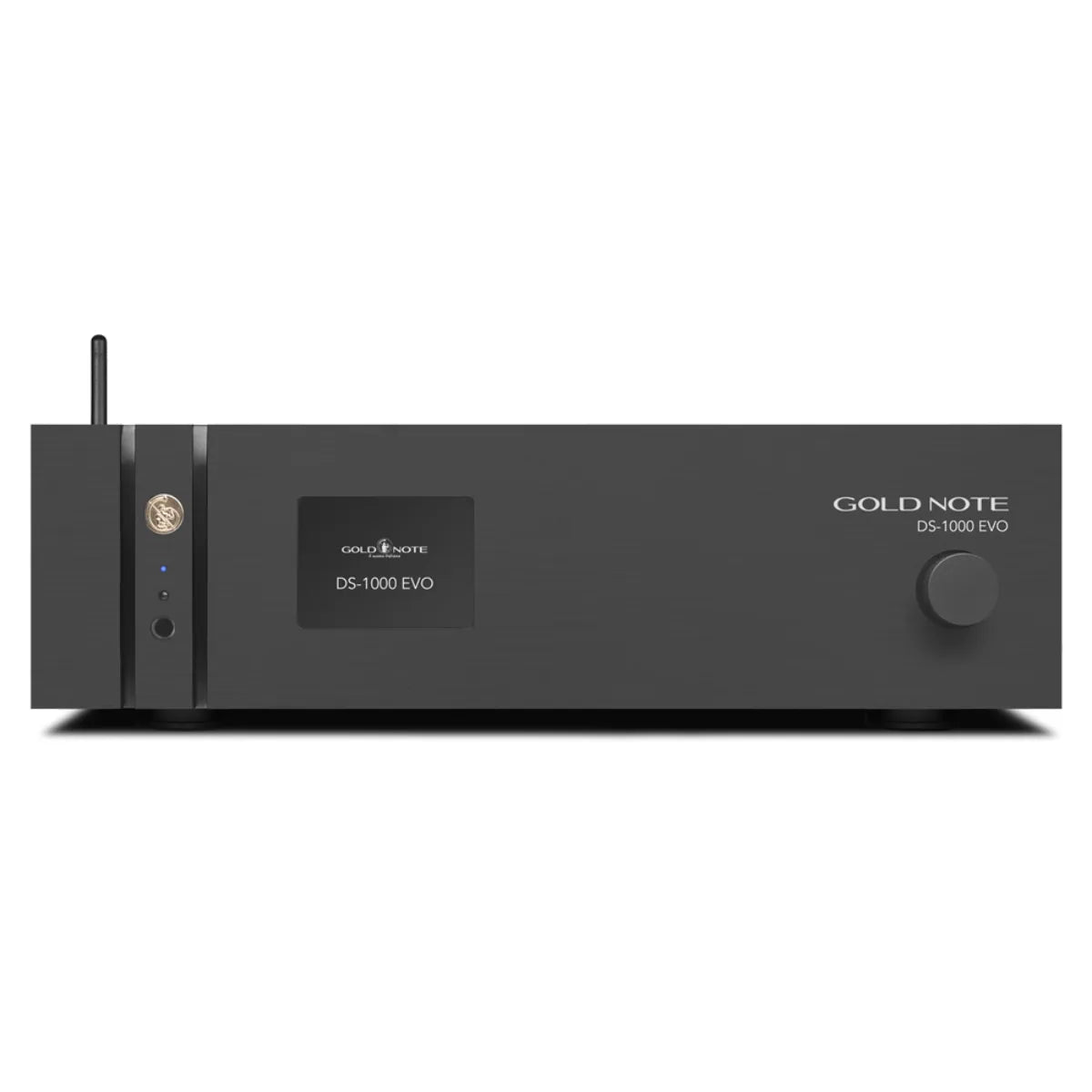

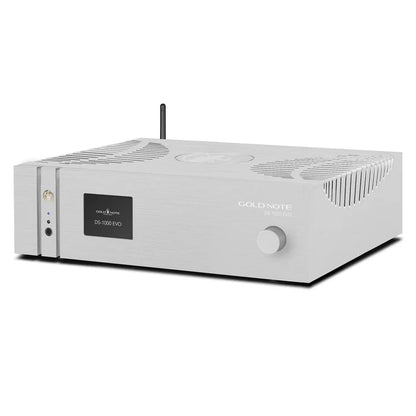

The DS-1000 EVO is the most advanced streaming DAC we have ever designed, combining advanced technology solutions applied to the digital-to-analogue domain with our unique know-how in delivering compelling sound quality, or, as we call it, the Italian Sound.
The core of the DS-1000 EVO is the Dual-Mono D/A converter design, powered by two AKM AK4493 converters to ensure the highest fidelity is always preserved during the conversion stage, with virtually zero crosstalk.
Streaming is as easy as pressing play on Tidal thanks to Tidal Connect, or simply connecting your computer with a USB cable – no audio file will be a problem, supporting MQA, PCM (up to 32bit/384kHz) and DSD (up to DSD512).
Completing the design, the output stage in Class A features audio-grade discrete components selected to deliver our unique Italian sound.
STREAMING IN ULTRA-HIGH RESOLUTION
With the DS-1000 EVO, you can stream through Roon, Airplay, Tidal, MQA, Qobuz, vTuner, and Deezer. With Tidal Connect and Spotify Connect, streaming is even easier directly from within their apps. To access your collection of digital music, stored locally on a NAS or computer, you can use any UPnP/DLNA software from your smartphone or tablet. Or simply download our app GN Control (free for iOS and Android) to control all the features and functions of the DS-1000 EVO, as well as managing your music and streaming services.
HEADPHONES AMP AND LINE PREAMPLIFIER
The DS-1000 EVO models feature a professional 6.3mm headphones output with two sensitivity levels (High/Low), a proprietary technology we developed to get the best out of your headphones. The DS-1000 EVO LINE is also equipped with a Class A preamp stage to control the volume directly in the analogue domain, which can be bypassed when the unit is set to DAC mode.
ROON READY
Being Roon Ready means that Gold Note uses Roon streaming technology, for an incredible user interface, simple setup, rock-solid daily reliability, and the highest levels of audio performance, without compromise.
TIDAL CONNECT
With Tidal Connect you can stream music to your DS-1000 EVO directly from the Tidal app (available on iOS and Android).
AUDIRVĀNA
Plays with Audirvāna products are certified to play music from Audirvāna over USB or network with the best level of integration and audio performance.
QOBUZ CONNECT
With Qobuz Connect you can stream music to your IS-1000 MkII directly from the Qobuz app (available on iOS and Android).
SPECIFICATIONS
-
Type: High-end streaming DAC / network player / preamplifier
-
DAC: Dual-mono, 2 × AKM AK4493
-
DAC architecture: One DAC chip per channel
-
Maximum DAC resolution: PCM 32-bit/768 kHz, DSD512
-
Network streaming: Up to PCM 32-bit/384 kHz, DSD256
-
Frequency response: 20 Hz–20 kHz ±0.1 dB
-
THD: 0.001% max
-
Signal-to-noise ratio: 125 dB
-
Dynamic range: 120 dB
-
Output impedance: RCA 50 Ω / XLR 100 Ω
-
Output stage: Class A, discrete components
-
Integrated preamp: Yes — Line version only
-
Volume control: Analogue-domain Class A preamp, can be bypassed in DAC mode
-
Headphone amplifier: Yes
-
Headphone output: 6.3 mm front-panel jack, High/Low sensitivity

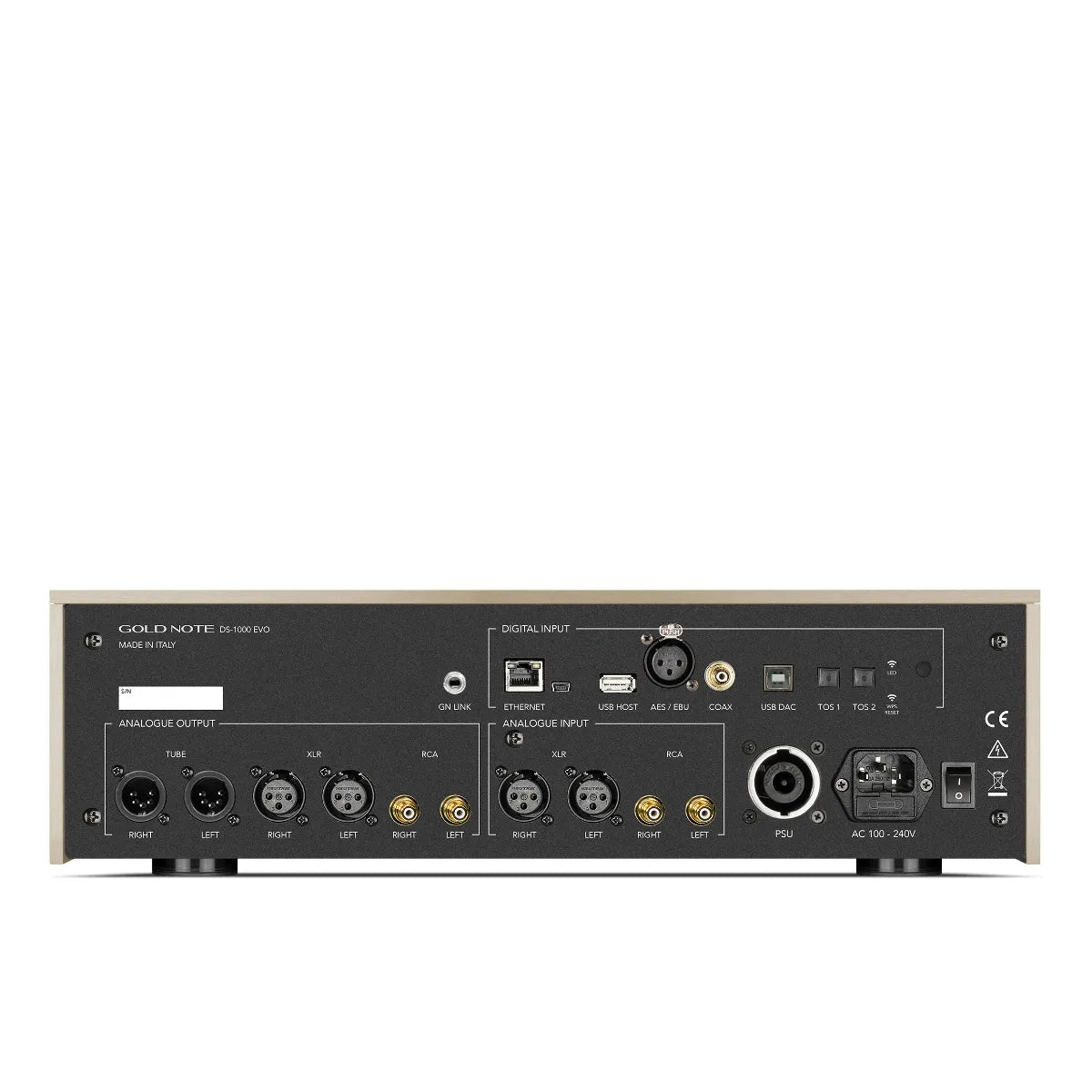

Digital inputs
-
1 × RCA coaxial S/PDIF — PCM up to 24-bit/192 kHz
-
1 × AES/EBU balanced — PCM up to 24-bit/192 kHz
-
2 × TOS-Link optical — PCM up to 24-bit/192 kHz
-
1 × USB-B asynchronous — PCM up to 32-bit/384 kHz, DSD512
-
1 × USB-A — PCM up to 32-bit/384 kHz, DSD256
- FAT32/NTFS
- Maximum USB flash-drive capacity specified: 32 GB
-
Ethernet/LAN: Yes
-
Wi-Fi: 802.11a/b/g/n/ac dual-band
-
Bluetooth: Bluetooth 5.0, 44.1 kHz/16-bit
Analogue inputs — EVO Line only
- 1 × RCA stereo unbalanced
- 1 × XLR stereo balanced
Analogue outputs
DAC outputs:
-
1 × RCA: 2 Vrms
-
1 × XLR: 2 Vrms
Preamp outputs — Line version:
- 1 × RCA
- 1 × XLR
- 1 × 6.3 mm headphone output
Streaming / software
- Roon Ready
- Tidal
- Tidal Connect
- Qobuz
- Deezer
- Spotify Connect
- AirPlay
- vTuner
- MQA
- UPnP/DLNA
-
GN Control app — iOS / Android
- Audirvāna certified
Supported network formats
- FLAC
- WAV
- AIFF
- ALAC
- MP3
- OGG
- Apple Lossless
- Monkey's Audio
- DSD: DSF / DFF
Power
-
Power supply: 100–240 V / 50–60 Hz
-
Power consumption: 30 W
-
Fuse: 2 A T
Dimensions / weight
-
Width: 430 mm
-
Height: 135 mm
-
Depth: 375 mm
-
Net weight: 10 kg
-
Boxed weight: 15 kg

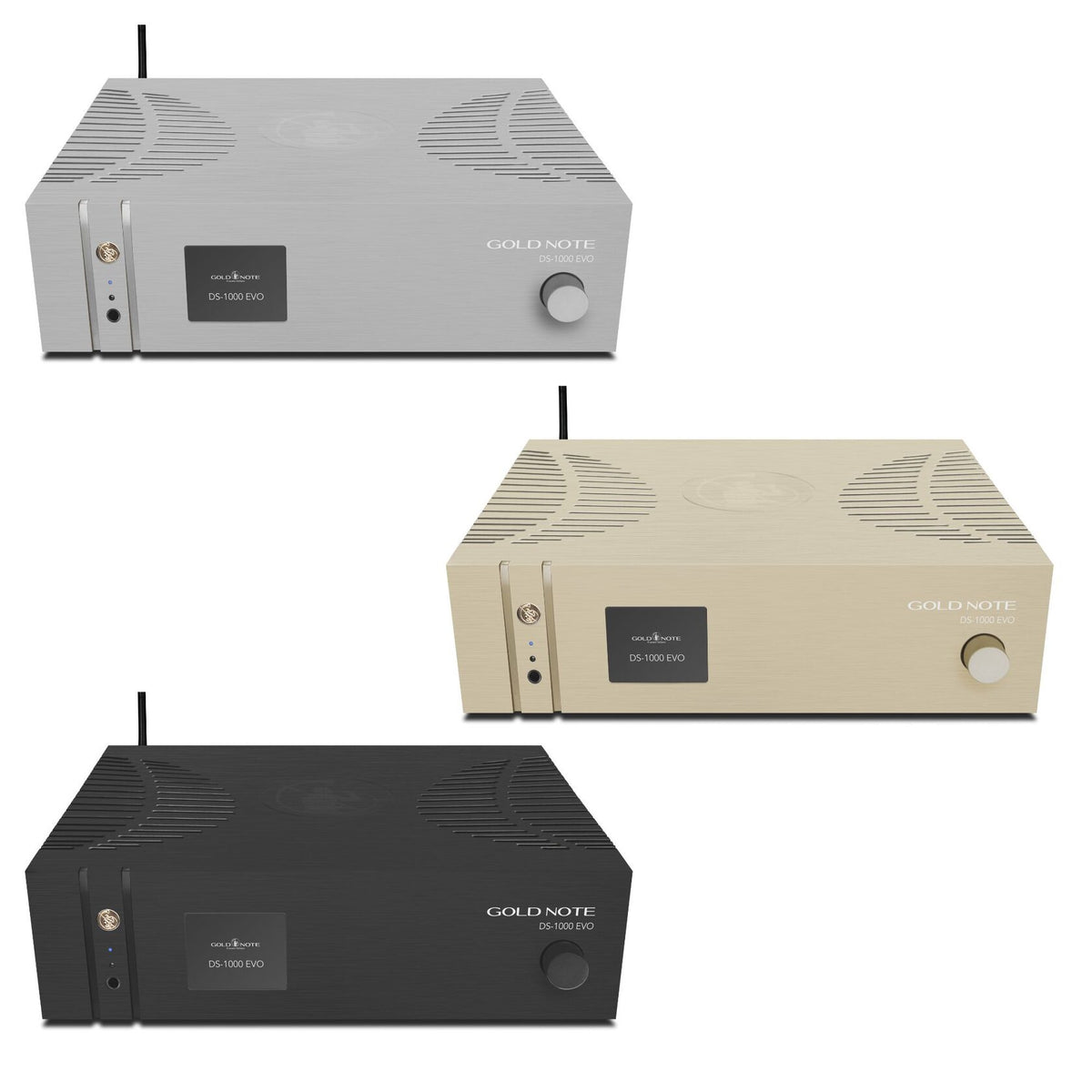

Finishes
- Black
- Silver
- Gold
- Brushed/anodised aluminium chassis
Optional upgrades
-
PSU-1250 — external inductive power supply
-
PSU-1000 — external inductive power supply
