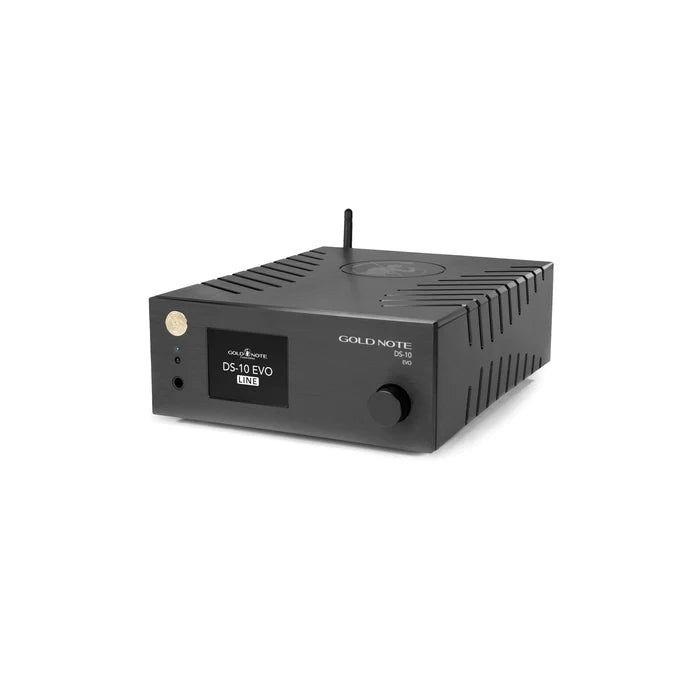

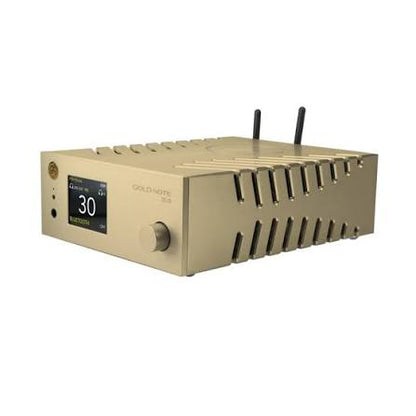

The Gold Note DS-10 EVO Line consolidates multiple high-performance audio components into a single half-width aluminum enclosure. Designed as a complete digital front end, the Gold Note DS-10 EVO Line combines a network streamer, preamplifier, headphone amplifier, and digital-to-analogue converter into a unified system. Among modern digital sources, standalone DAC's often require separate preamplification, but the Gold Note DS-10 EVO Line includes an analogue preamplifier stage with direct-to-power-amplifier output functionality.
Versatile Digital Integration and Streaming:
As high-resolution streaming becomes the primary playback method for modern listening setups, network players need to handle diverse transmission protocols without compromising signal stability. The Gold Note DS-10 EVO Line offers full streaming support across platforms such as Roon Ready, TIDAL Connect, Qobuz, Spotify, and AirPlay 2, operating over both Wi-Fi and Ethernet. For local or mobile audio sources, high-definition Bluetooth provides quick connection capabilities, allowing external devices to send audio streams directly to the internal AKM AK4493 converter platform.
Real-Time Custom Sonic Tailoring:
At the heart of the digital conversion architecture is the AKM AK4493 converter, supporting PCM formats up to 32-bit/384kHz alongside native DSD512 processing. Gold Note incorporates its proprietary Chameleon DAC technology, enabling real-time adjustments to digital filters, de-emphasis curves, and DSD playback characteristics. These processing adjustments allow fine-tuning of tonal balance and impulse response directly from the front-panel Single Knob Control or the GN Control app. In addition, the Line variant introduces an analogue input, allowing direct connection of analogue sources such as phono stages into the main signal path.
Authorized Dealer
We are an authorized dealer for Gold Note audio components. Purchasing from a trusted brand partner ensures that your investment includes the full manufacturer's warranty alongside dedicated technical support from knowledgeable specialists. This gives you complete confidence that your component receives official service backup and expert guidance whenever you need it.
Key Features:
-
All-In-One Architecture: Combines a network streamer, high-resolution DAC, line preamplifier, and headphone amplifier into a single space-saving component.
-
AKM AK4493 DAC Platform: Translates digital audio files up to PCM 32-bit/384kHz and DSD512 into clean, detailed analogue sound.
-
Chameleon DAC Technology: Allows on-the-fly adjustment of digital filters and equalizer curves to match individual acoustic preferences.
-
Analogue Line Input: Accepts traditional analogue source components, turning the system into a full-featured preamplifier control center.
-
Comprehensive Streaming Support: Connects to Roon Ready, TIDAL Connect, Qobuz, Spotify, AirPlay 2, and UPnP network storage via Ethernet or Wi-Fi.
-
Direct Power Amp Connection: Features an integrated analogue volume control to drive power amplifiers or active speakers directly.
-
Dedicated Headphone Amplifier: Features a front-panel 6.3mm headphone jack with selectable gain settings for driven headphones.
-
Solid Aluminum Chassis: Shields sensitive internal audio circuitry from external mechanical vibrations and electrical interference.
SPECIFICATIONS
-
DAC Chipset: AKM AK4493
-
Supported Formats: PCM up to 32-bit/384kHz, DSD512 native, MQA
-
Frequency Response: 20Hz – 20kHz (+/-0.1dB)
-
THD (Total Harmonic Distortion): 0.001% max
-
Signal-to-Noise Ratio: 125dB
-
Dynamic Range: 120dB
-

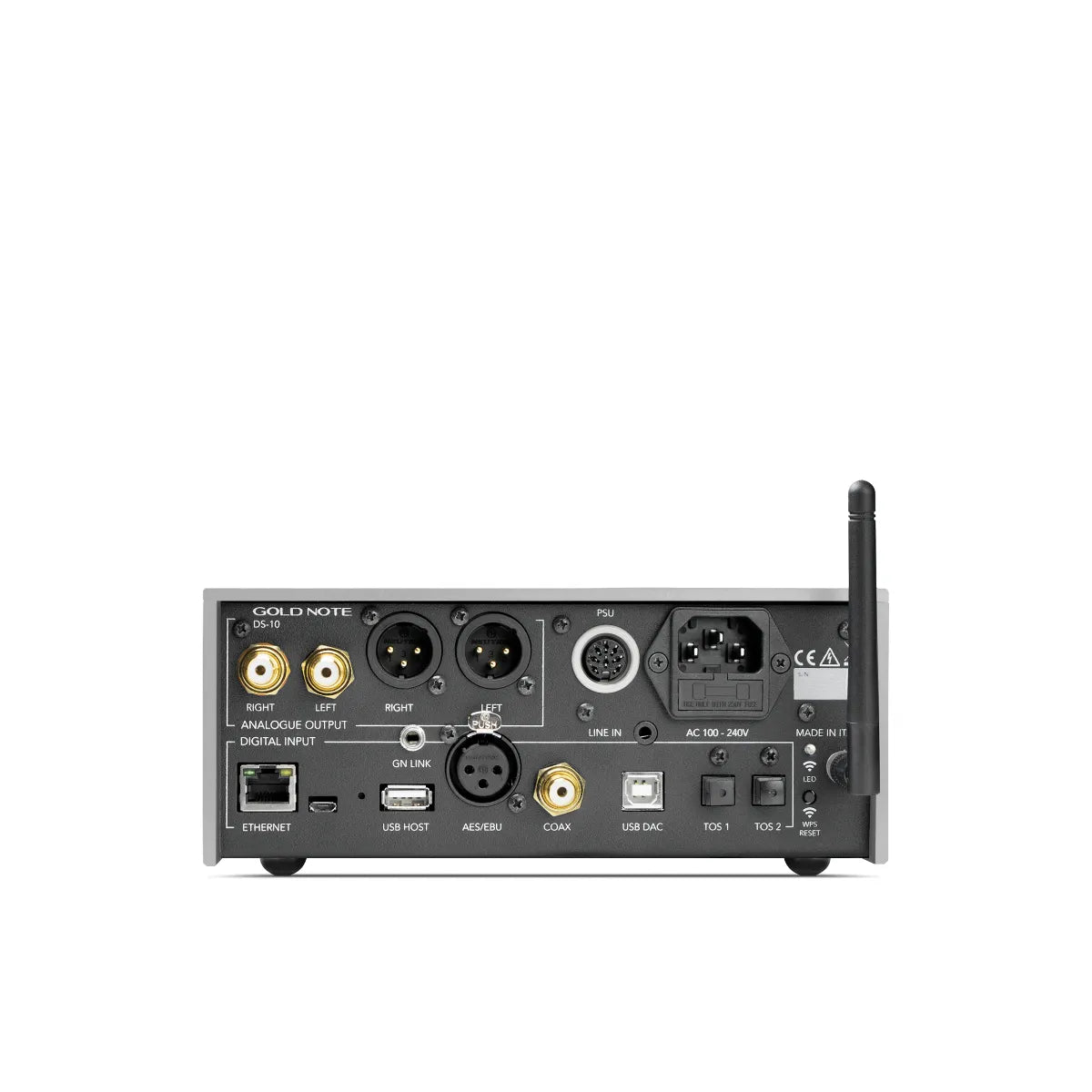

Digital Inputs: 1x RCA Coaxial, 2x Optical Toslink, 1x AES/EBU XLR, 1x USB-B, 1x USB-A port
-
Analogue Inputs: 1x 3.5mm mini-jack (Line version)
-
Analogue Outputs: 1x Stereo RCA, 1x Stereo XLR, 1x 6.3mm headphone output
-
Network Connectivity: Ethernet RJ45, Wi-Fi 802.11b/g, High-Definition Bluetooth 5.0
-
Control Interfaces: TFT colour display, Single Knob Control, GN Control App, IR Remote
-
Dimensions: 200mm W x 80mm H x 260mm D
-
Weight: 4 kg
-
Chassis Material: Machined Aluminum
