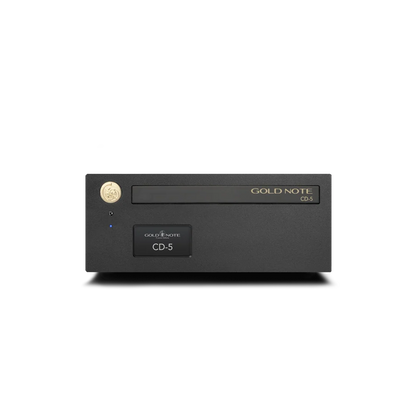

Experience unparalleled audio fidelity with the CD-5, the definitive choice for discerning audiophiles. Featuring a state-of-the-art high-precision CD mechanism supporting Gapless playback and a high-resolution D/A converter, the CD-5 ensures an impeccable reproduction of every nuance in your music collection.
Crafted with meticulous attention to detail, the CD-5’s mechanical chassis and audio circuits are designed to deliver the highest sound quality. By employing select audio-grade components and an analogue signal path design, this masterpiece eliminates noise and intermodulation, ensuring a pure and immersive listening experience. Navigating your music is a breeze with the intuitive touchscreen display and included remote control.
The CD-5 offers both analogue and digital outputs in a fully balanced configuration, providing versatile connectivity options for your high-end audio setup.
Elevate your audio experience further by pairing the CD-5 with the optional PSU-10 EVO external power supply. This upgrade enhances dynamic range and reveals even finer details in your favorite tracks, taking your listening enjoyment to new heights.
Indulge in the ultimate musical pleasure with the CD-5, where precision engineering meets unparalleled performance.
SPECIFICATIONS
-
Type: CD player with integrated D/A converter
-
DAC: AKM AK4493
-
Frequency response: 20 Hz–20 kHz ±0.3 dB
-
THD: 0.001% max
-
Signal-to-noise ratio: 124 dB
-
Dynamic response: 123 dB
-
Output impedance: 100 Ω
-
Volume control: Digital
-
CD mechanism: High-precision Stream Unlimited tray loader
-
Speed fluctuation: 0.0001%
-
CD format: Red Book
-
Disc compatibility: CD, CD-R, CD-RW
-
Gapless playback: Yes
-
Remote: Multifunctional IR remote included

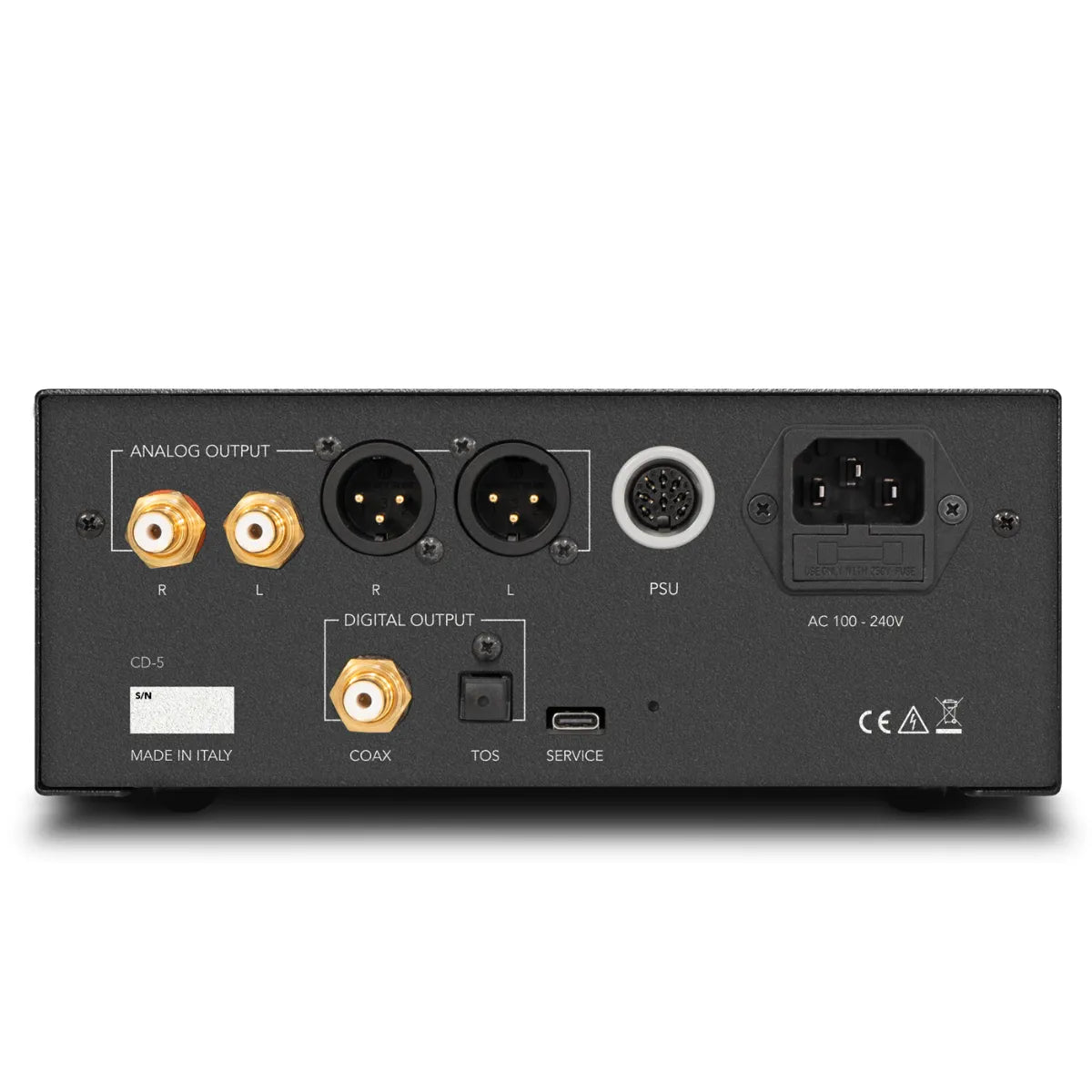

Analogue outputs
-
1 × RCA stereo: 2 Vrms
-
1 × XLR balanced: 2 Vrms
Digital outputs
-
1 × Coaxial S/PDIF: 75 Ω, up to 24-bit/192 kHz
-
1 × TOS-Link optical: up to 24-bit/192 kHz
Digital inputs
-
None — the CD-5 has digital outputs only, unlike the CD-10 and CD-1000 MkII.
Power
-
Power consumption: 30 W
-
Power supply: 100–240 V, 50/60 Hz
-
Fuse: 2 A T
Dimensions / Weight
-
Width: 200 mm
-
Height: 80 mm
-
Depth: 260 mm
-
Weight: 3 kg net / 4 kg boxed
Finish
-
Black: varnished steel and aluminium
Optional upgrade
-
PSU-10 EVO: external inductive Dual-Mono power supply
