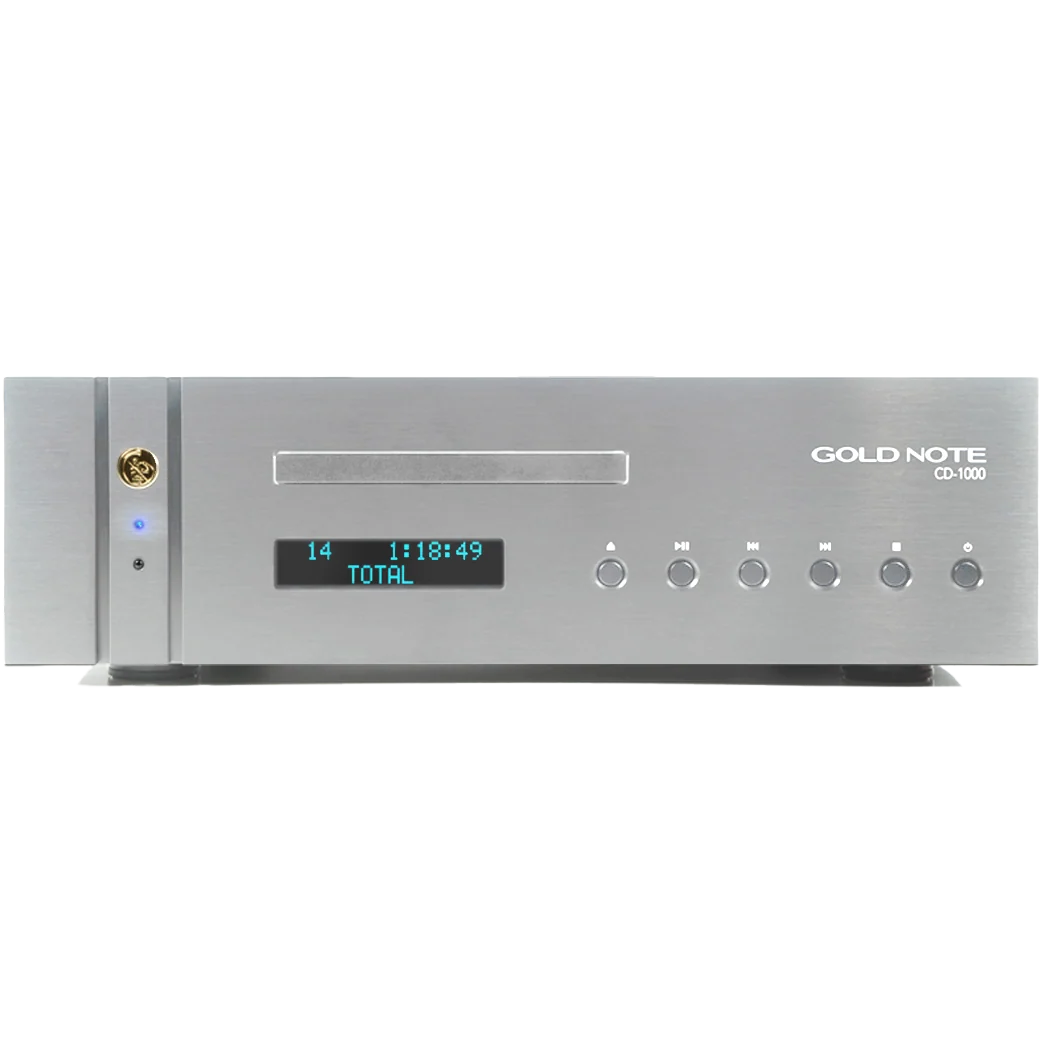

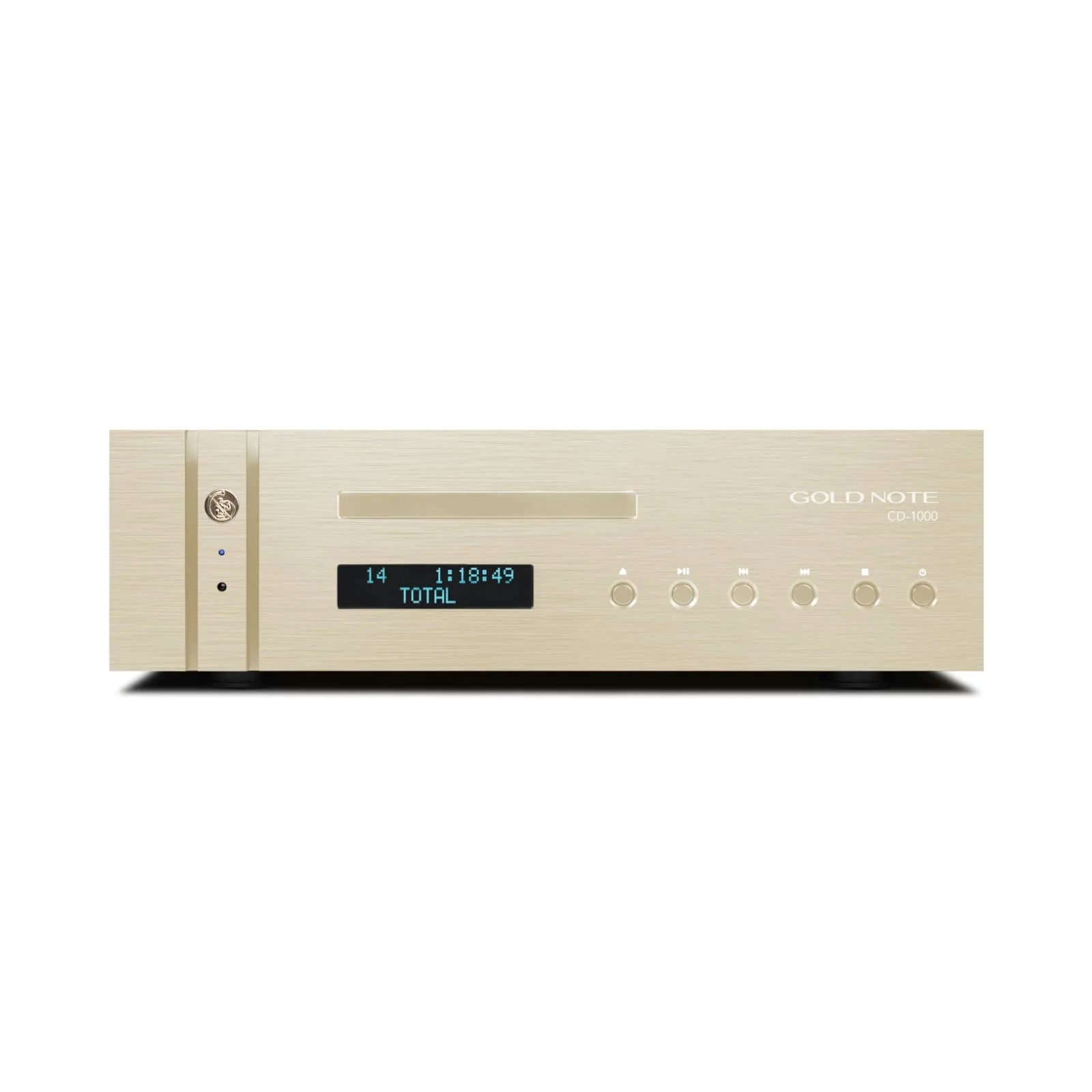

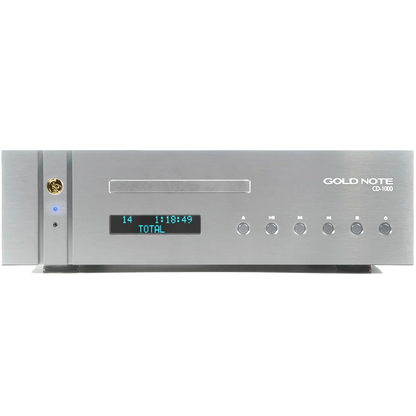

The CD-1000 MkII Deluxe DSD, housed in a beautiful brushed aluminium chassis, integrates a digital and an analogue stage into a single, elegant device. It is designed to listen to music from a CD as well as to play audio files from a TV or DVD player connected via optical or coaxial input. The CD-1000 MkII delivers a natural, detailed and powerful sound, and can be easily integrated into any Hi-End stereo system. CD-1000 MkII Deluxe DSD supports Gapless playback and is equipped with a top-of-the-range 24bit/192kHz digital converter and digital inputs such as the S/PDIF coaxial and the TOS optical to get the best out of your system. The aluminium JPL-2800 transport mechanism made in Austria by Stream Unlimited is one of the best in the world and ensures maximum stability avoiding fluctuations or loss of definition. The CD-1000 MkII Deluxe DSD integrates our Zero-ClockTM technology which allows for an effective reduction of jitter, and features a digital volume control that can be used to drive directly a power amplifier or active speakers.
The CD-1000 MkII Deluxe DSD equipped with the integrated DAC BurrBrown PCM1792A and a USB-B port (supporting up to DSD256 and PCM 32bit/384kHz).
The CD-1000 MkII Deluxe DSD can be paired with external units that allow further improvement of its exceptional audio performance:
– TUBE-1012 – class A valve output stages developed with 12 valves
– PSU-1250 – super inductive external power supply dedicated to the Gold Note series 1000.
SPECIFICATIONS
-
Type: CD player with integrated DAC
-
DAC: Burr-Brown PCM1792A
-
DAC resolution: 24-bit / 192 kHz
-
USB-B: PCM up to 32-bit/384 kHz
-
USB-B DSD: DSD256
-
Coaxial input: RCA S/PDIF, up to 24-bit/192 kHz
-
Optical input: TOS, up to 24-bit/192 kHz
-
CD formats: CD, CD-R, CD-RW
-
CD standard: Red Book
-
Gapless playback: Yes
-
Transport: Aluminium JPL-2800, Stream Unlimited
-
Speed fluctuation: 0.0001%
-
Zero-Clock™: Yes, jitter-reduction technology
-
Frequency response: 20 Hz–20 kHz, ±0.3 dB
-
THD: 0.001% max
-
Signal-to-noise ratio: 128 dB
-
Dynamic response: 127 dB
-
Digital volume control: Yes, switchable on/off
-

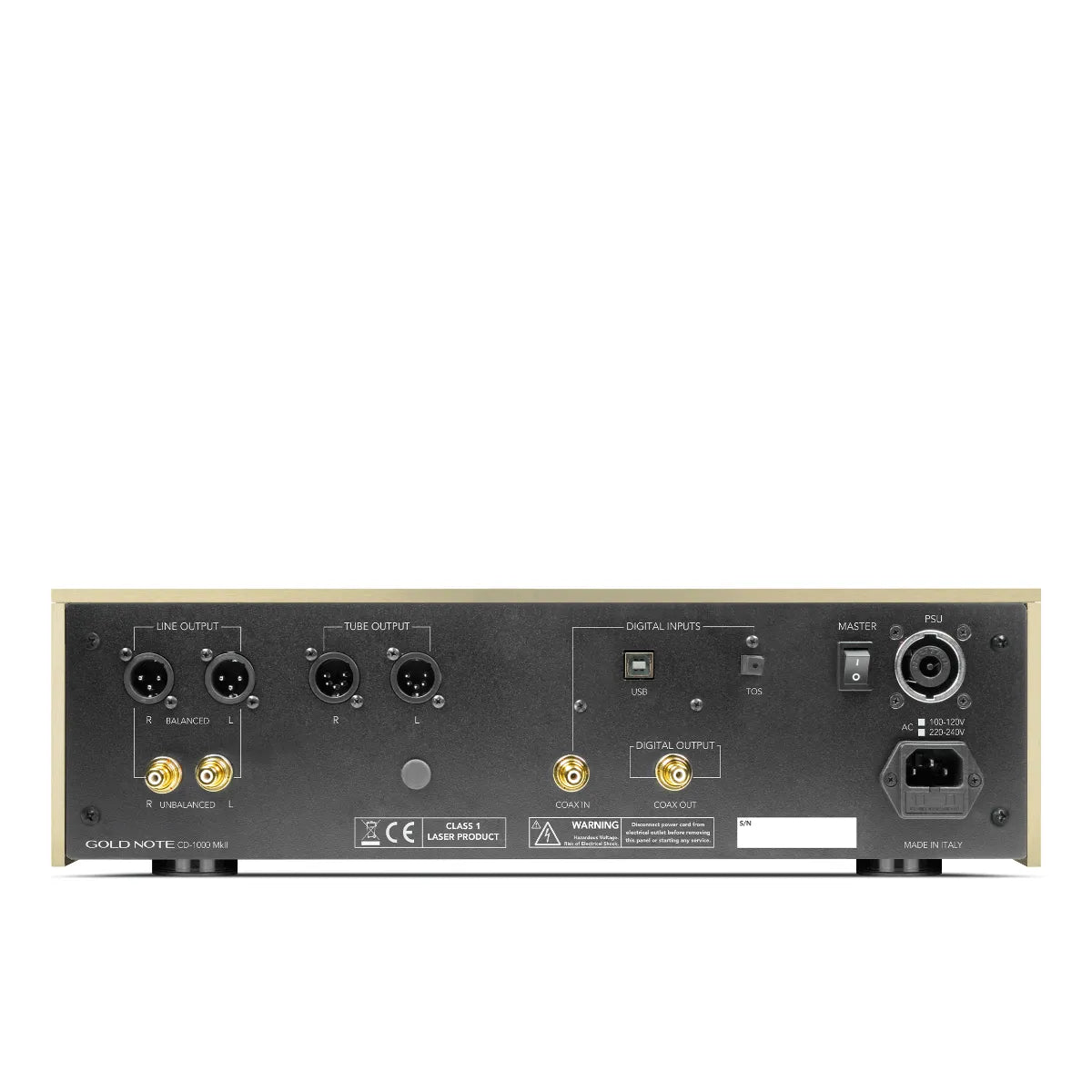

Analog outputs:
- 1 × RCA unbalanced
- 1 × XLR balanced
- 1 × connector for TUBE-1012
-
Analog output level: 2 Vrms RCA / 2 Vrms XLR
-
Digital output: 1 × RCA S/PDIF, 75 Ω
-
Output impedance: 50 Ω
-
Power consumption: 30 W
-
Power supply: Dual-mono
-
Mains: 100–120 V or 220–240 V, 50/60 Hz
-
Dimensions: 430 W × 135 H × 375 D mm
-
Weight: 12 kg net / 16 kg boxed
-
Remote: Multifunction remote included
-
Finishes: Black, Silver, Gold
Optional upgrades:
-
PSU-1250: 300 W external inductive dual-mono power supply
-
PSU-1000: 200 W external inductive dual-mono power supply
-
TUBE-1006: Class-A, 6-tube output stage
-
TUBE-1012: Class-A, 12-tube output stage
