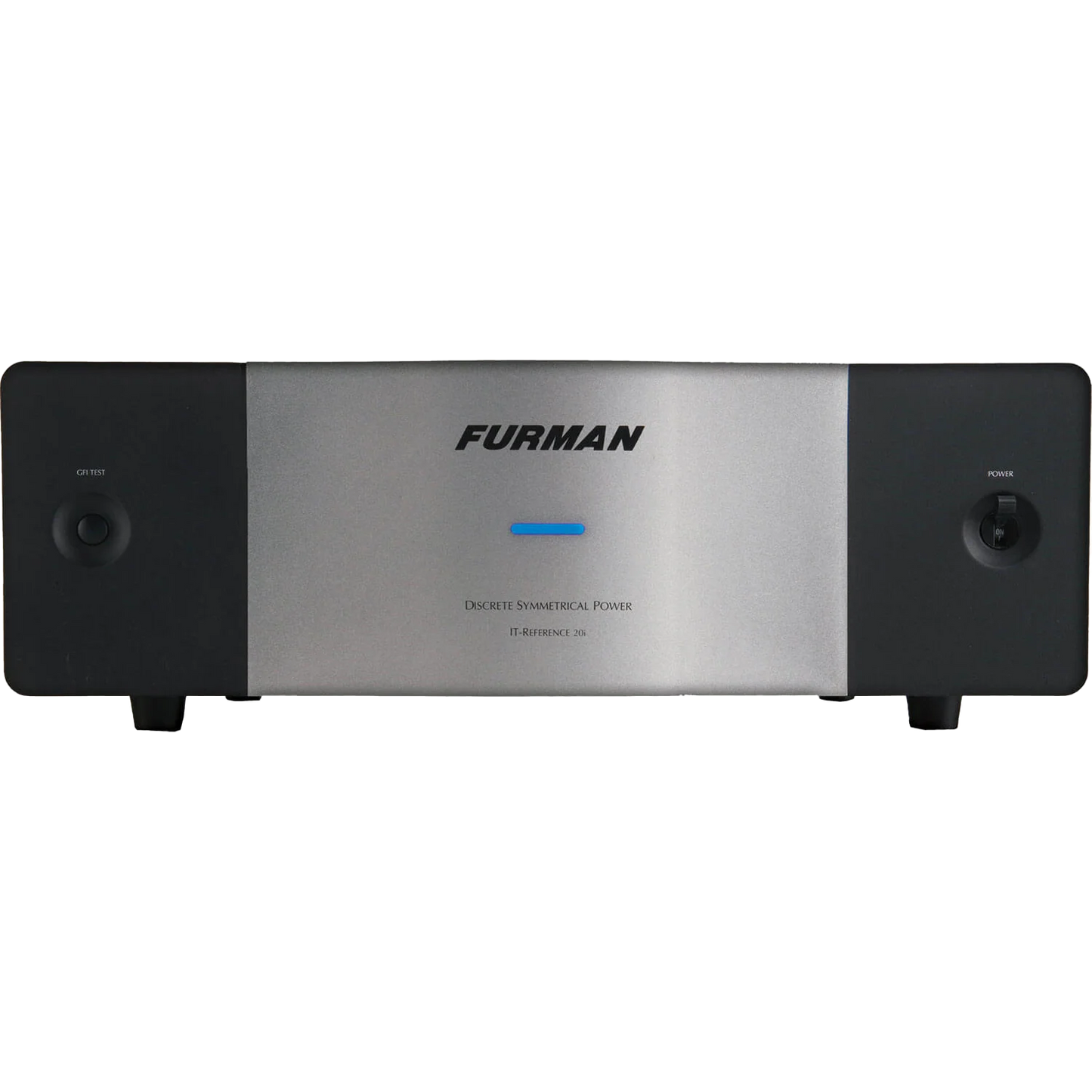

Engineered for the most demanding audiophile and home theater systems, the flagship Furman IT-Reference 20i is the revolutionary solution to today's corrupted power lines. Its unique design features four discrete, isolated symmetrical power banks that completely eliminate inter-component interference, positively breaking noise-inducing ground loops and power supply backwash between your critical equipment. For the most extreme current demands, our Power Factor Technology provides a continuous reserve of over 9 amps—and an over 80 amp peak charge—allowing power-starved amplifiers to work at peak efficiency, doubling their perceived power and dramatically improving quality. The result is an unprecedented level of audio and video detail, with stunningly focused images and bass fundamentals that shake foundations, ensuring your system performs exactly as it was designed to—uncompromised.
FEATURES
-
Five Discrete Power Banks: Eliminate inter-component interference
-
Power Factor Technology: Provides surplus current for power-hungry amplifiers
-
Discrete Symmetrical Power Filter: 20A power conditioning
-
Symmetrical Balanced Power: Dual Screen Technology cancels hum-inducing noise from audio and video equipment
SPECIFICATIONS
-
Series: Reference Series
-
Line Voltage: 120 V
-
Number of Outlets: 12
-
Number of Isolated Banks: 5
-

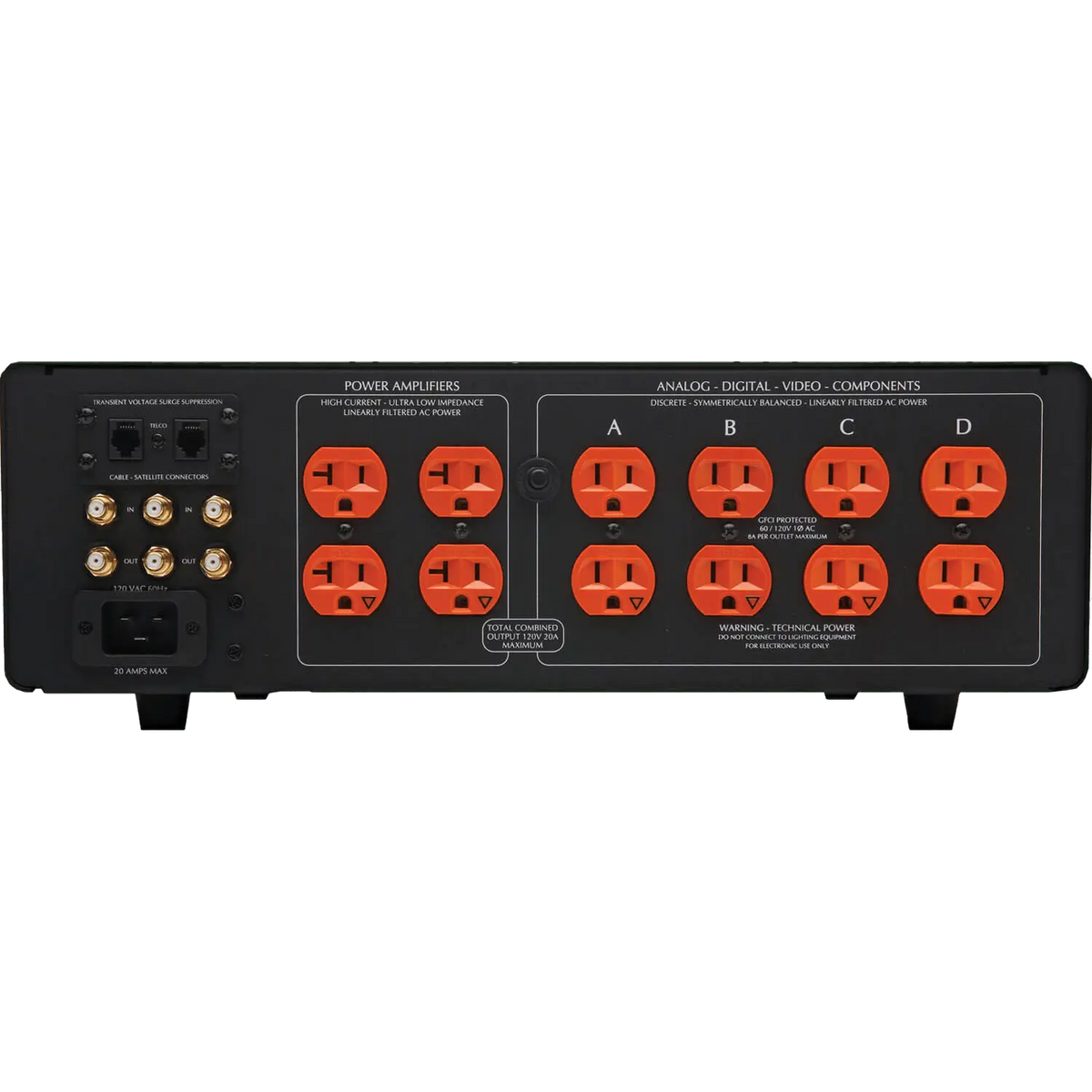

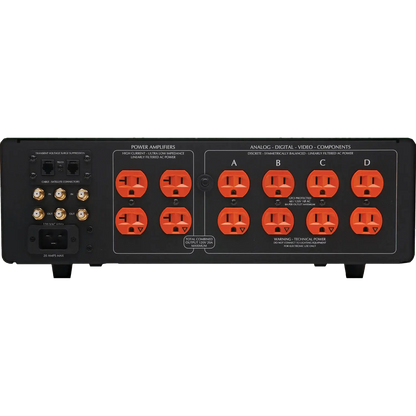

Outlet Configuration:
- 8 Symmetrical Balanced Outlets
- 4 Power Factor Technology Outlets
-
Power Factor Technology: 9A RMS reserve with reactive load; over 80A peak current
-
Rack Mountable: Yes
-
Rack Ears Included: Yes
-
Front Panel Control: On/Off switch
-
Meter: No
-
Media Lights: No
-
Voltage Regulation: No
-
Compliance: C-ETL
-
USB Charging: N/A
-
Low Voltage Trigger: N/A
-
Dimensions: 5.75" H × 17" W × 16.25" D (standard 3 RU height without feet)
-
Weight: 81 lbs
-
Power Consumption: 8.5 W for display and control circuits, independent of actual load
AC Protection
-
Under-Voltage Shutoff: N/A
-
Over-Voltage Shutoff: 140 V ± 3 V
-
Maximum Current Rating: 20 A
-
Initial Clamping Level: 188 VAC peak @ 3,000 A
Filtration
-
Filtration Technology: LiFT + Discrete Symmetrical Power with Dual Screen Technology
-
Transverse (Differential) Mode: >40 dB from 10 kHz–100 kHz; >80 dB from 100 kHz–1 GHz
-
Common Mode (Video Outlets): >75 dB from 10 Hz–50 kHz; >40 dB from 50 kHz–1 MHz
